Straght Blade Devices, SNAP-Connect, AUTOGUARD, Self Test, GFCI Receptacle, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Gray
SKU: #140851
Part: #GFRST20SNAPGY
UPC: 883778124525
Straght Blade Devices, SNAP-Connect, AUTOGUARD, Self Test, GFCI Receptacle, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Gray
SKU: #140851
Part: #GFRST20SNAPGY
UPC: 883778124525
Next day delivery
Description

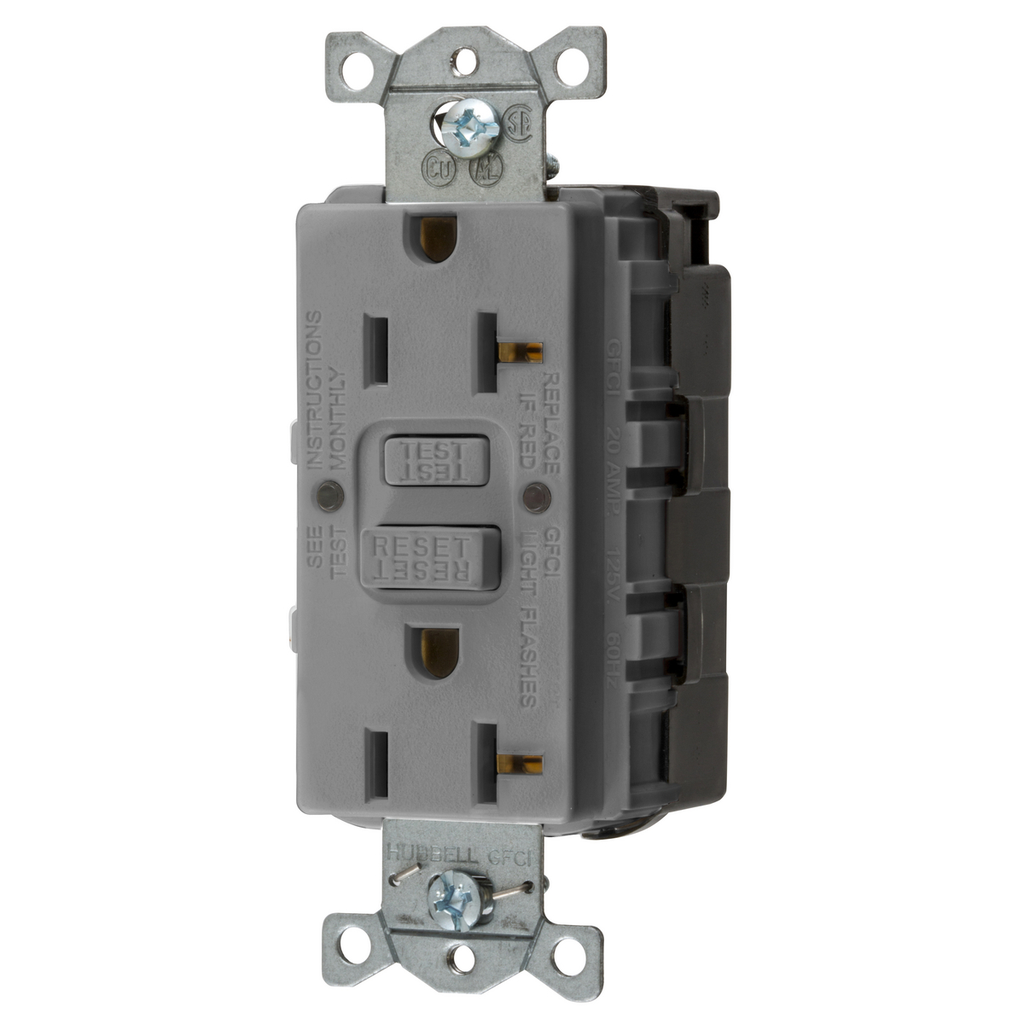

Straght Blade Devices, SNAP-Connect, AUTOGUARD, Self Test, GFCI Receptacle, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Gray - GFCI Receptacle
This commercial grade GFCI receptacle by Hubbell Wiring Device-Kellems provides ground fault protection with patented AUTOGUARD® self test technology. Designed for indoor dry environments, it is suitable for electrical distributors and lighting solutions requiring reliable wire and cable safety components. The device supports 20 amperes at 125 volts with 2-pole, 3-wire grounding, and features connectorized SNAP-Connect terminals for secure and quick installation. It complies with NEC® standards and includes tamper-resistant features for enhanced safety.
Specifications
- Application: Commercial Grade
- Amperage: 20 amperes
- Current: 20 amperes
- Horsepower: 1 horse power
- Material: Nylon
- Color: Gray
- Width: 2.048 in
- Mounting: Mounting Screws
- Connection: Connectorized
- Number of Poles: 2-Pole
- Number of Wires: 3-Wire Grounding
- NEMA Rating: 5-20R
- Product Weight: 3.6 lbs
- Environmental Conditions: Indoor Dry unless protected by additional means
- Country of Origin: China
- Manufacturer: Hubbell Wiring Device-Kellems
- Manufacturer Part #: GFRST20SNAPGY
Features
- Patented AUTOGUARD® self test technology continuously monitors GFCI functionality and disconnects power if protection is lost
- Audible SNAP indicates solid connection
- Patented shutter design for tamper-resistant protection
- Compliant with NEC® 406.12 and NEC® 517-18(c)
- Triple wipe construction for reliable contact
- Clear visual LED indicators for power status, trip condition, ground fault, and end-of-life status
- Protection against line and load reversal with power denial if miswired
- Internal back wiring clamp and guide pocket for quick and dependable termination
- Installation ease with auto-grounding clip and captive mounting screws
