STL360HW Motion-Activated Security Floodlight Sensor

The STL360HW by RAB Lighting is a precision-engineered motion-activated floodlight sensor designed for reliable outdoor security lighting. This unit features twin die-cast H101 deluxe shielded Bell floods pre-wired and assembled on a universal CU4 EZ mounting plate. It is engineered to sense motion with a 180° forward detection pattern combined with 360° downward coverage for total detection. Ideal for electrical distributors, lighting solutions providers, and switchgear suppliers, the STL360HW supports efficient control of outdoor lighting loads, enhancing safety and energy management.

Specifications

• Voltage: 120 volts AC, 60 Hz
• Power Consumption: 1 watt
• Surge Protection: Withstands up to 6000 volts
• Switching Capacity: 8 amps, 1000 watts incandescent @ 120 volts
• Time Adjustment: 5 seconds to 12 minutes
• Sensitivity Control: Adjustable from 100% to 30%
• Detection Pattern: 180° forward and 360° downward
• Weight: 4.0 lbs

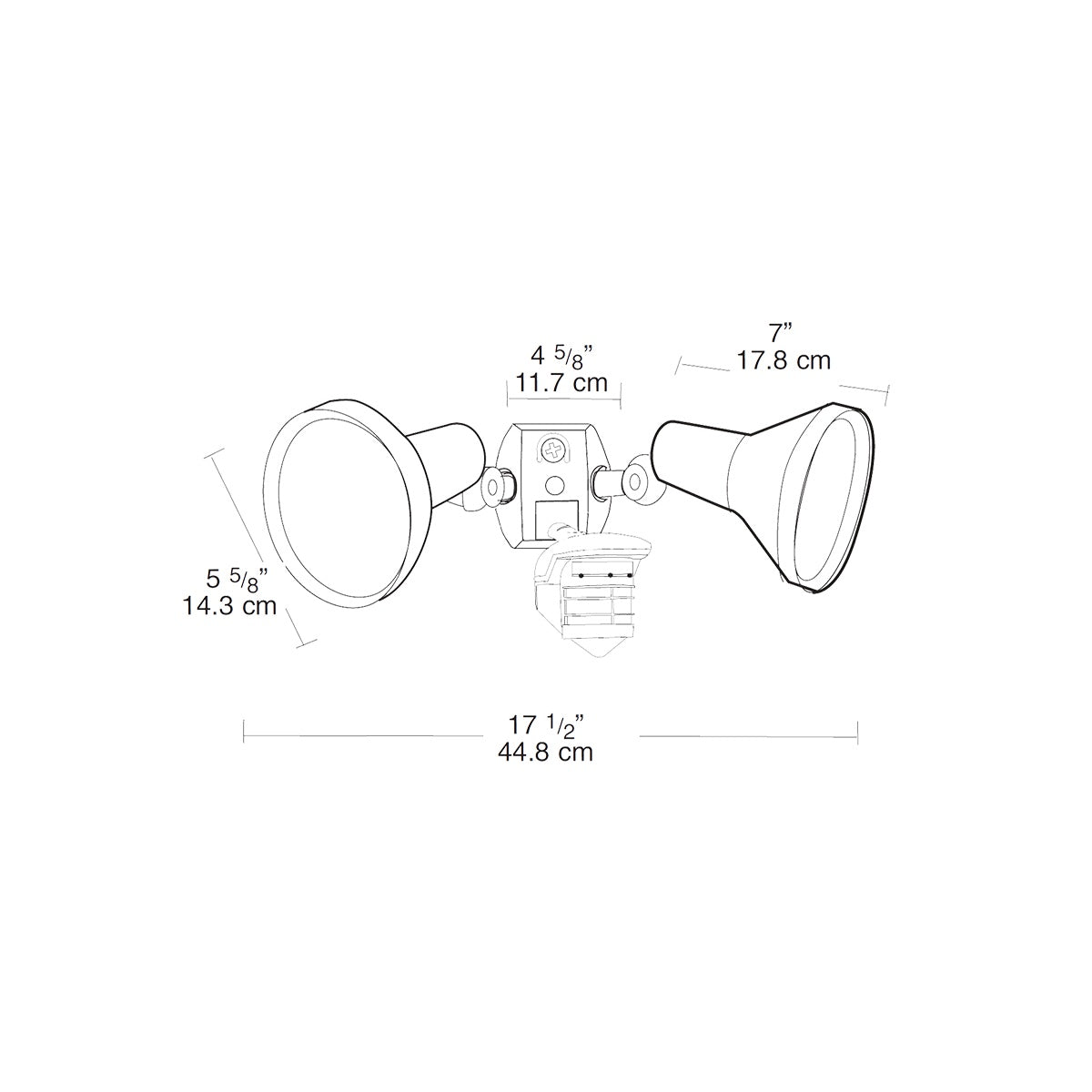

• Dimensions: 17.5" (44.8 cm) width, 7" (17.8 cm) depth, 5.625" (14.3 cm) height
• Compliance: UL Listed, suitable for wet locations
• Warranty: 10 year sensor warranty

Features

• Pre-wired and pre-assembled on CU4 universal EZ plate for easy installation
• Protected manual override with auto reset at dawn, no extra wiring needed
• Advanced detection logic minimizes false triggers
• Photoelectric control deactivates lights during daylight with adjustable settings for 24-hour operation
• Three scanning LEDs provide continuous visual indication of sensor operation
• Radio frequency immunity with fully shielded circuits
• Temperature compensation for consistent detection in varying ambient conditions
• Includes customized press-apply lens masks for easy coverage adjustment
• Can be wired in parallel for multiple fixtures
• Accepts PAR-38 lamps, 150 Watt max (lamps not supplied)
