Description
STL360HBW Motion Sensor Lighting Control
The STL360HBW by RAB is a motion-activated lighting control designed for outdoor use, providing total detection coverage with a combination of 180° forward and 360° downward sensing. This sensor integrates with lighting solutions and wire and cable systems to enhance security and energy efficiency. It is pre-wired and assembled on a universal CU4 EZ plate, accepting PAR-38 lamps up to 150 watts (lamps not supplied). Suitable for electrical distributors and switchgear suppliers looking for reliable outdoor sensor lighting controls.
Specifications
- Voltage: 120 volts AC, 60 Hz
- Power Consumption: 1 watt
- Switching Capacity: 8 amps, 1000 watts incandescent @ 120 volts
- Surge Protection: Withstands up to 6000 volts
- Sensor Detection Pattern: 180° forward and 360° downward
- Time Adjustment: 5 seconds to 12 minutes
- Wide Sensitivity Control: Adjustable from 30% to 100%
- Evening Timer: Keeps lights on for 1-8 hours after dusk, then motion activated until dawn
- RF Immunity: Circuits fully shielded for maximum radio frequency immunity
- Mounting: CU4 plate allows mounting under a soffit

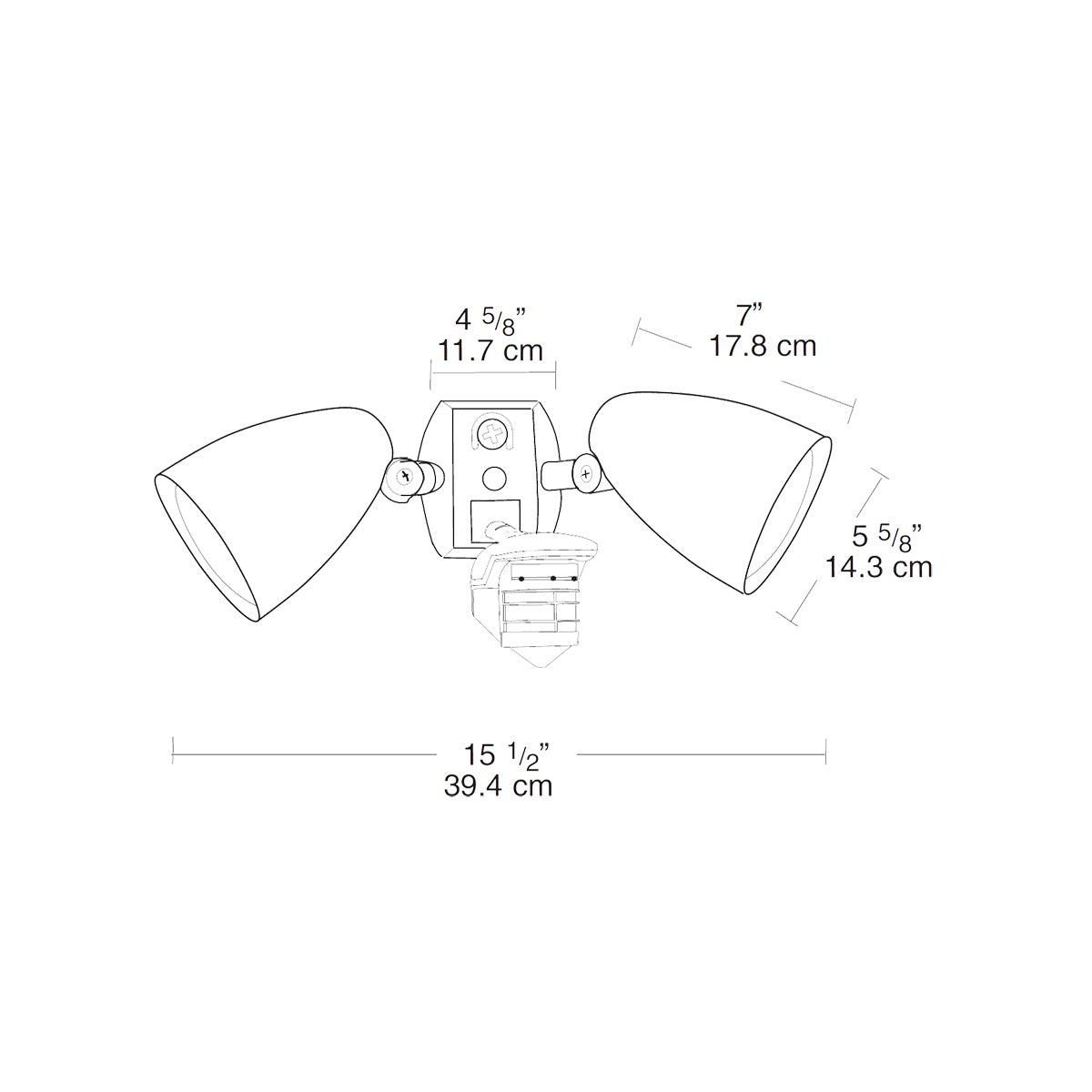

- Dimensions: Width 15 ½" (39.4 cm), Depth 7" (17.8 cm), Height 5 5/8" (14.3 cm)
- Weight: 4.5 lbs
- Color: White
- UL Listed: Suitable for wet locations
Features
- Super Stealth 360 sensor with twin precision die-cast HB101 Bullet floods
- Pre-wired and pre-assembled on CU4 universal EZ plate for easy installation
- Protected manual override with auto reset; no extra wiring needed
- Advanced detection logic minimizes false triggers
- Photoelectric control deactivates lights during daylight; fully adjustable for 24-hour operation or custom applications
- Scanning LEDs indicate sensor operation and modes including automatic, test, manual override, and evening timer
- Temperature compensation adjusts sensitivity for consistent detection in varying ambient temperatures
- Lens masks included to customize and reduce coverage as needed
- Can be wired in parallel to control multiple fixtures
- 10-year sensor warranty
- Buy American Act compliance available upon request
