STL200HW Stealth Sensor Floodlight - Motion Activated Lighting Solutions

The STL200HW is a precision-engineered motion-activated floodlight sensor designed for reliable outdoor lighting control. Ideal for electrical distributors and lighting solutions providers, this product offers a 200° detection pattern that automatically activates lighting upon detecting movement within its coverage area. It is suitable for applications requiring energy-efficient, secure, and automatic illumination, including residential, commercial, and industrial settings. The unit is pre-wired on a universal CU4 cover plate for easy installation on standard mounting boxes.

Specifications

• Voltage: 120 Volts AC, 60 Hertz
• Switching Capacity: 1000 watts incandescent @ 120 volts, 8 amps
• Power Consumption: 1 watt
• Detection Pattern: 200° view
• Time Adjustment: 5 seconds to 12 minutes
• Wide Sensitivity Control: Adjustable from 100% to 30%
• Surge Protection: Withstands up to 6000 volts
• RF Immunity: Fully shielded circuits for maximum radio frequency immunity
• Construction: Precision die cast aluminum floodlights with 1/2" NPS threaded arm and serrated locking swivel
• Lens Mask: Customized press-apply lens mask included for coverage reduction
• LED Detection Indicator: Shows sensor activity during daytime and glows red at night for deterrence

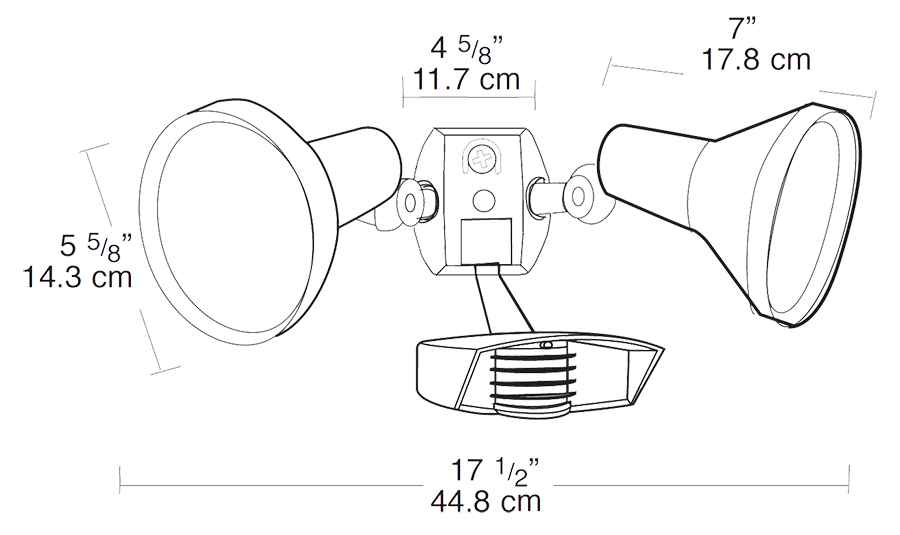

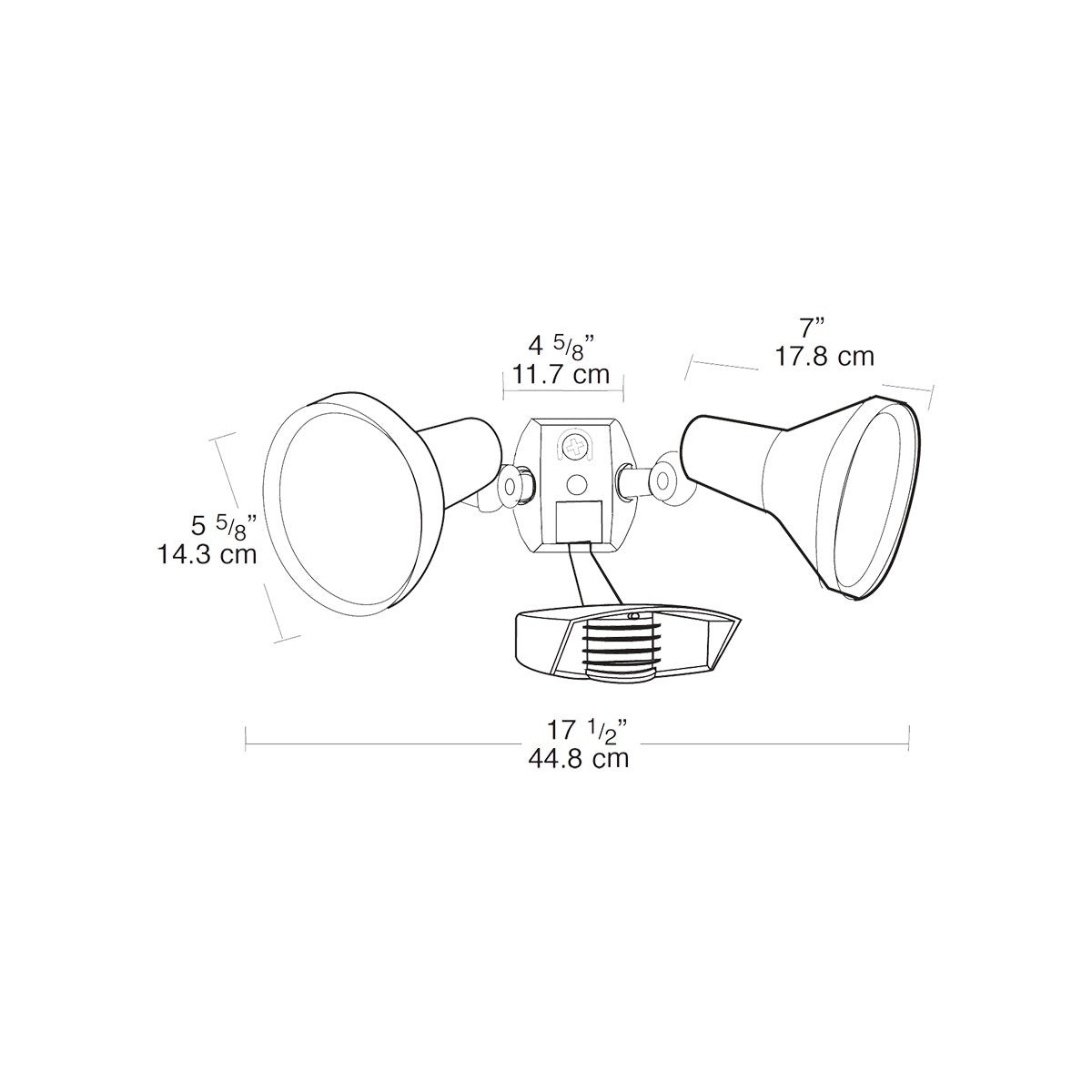

• Dimensions: 17 1/2" (44.8 cm) width, 7" (17.8 cm) depth, 5 5/8" (14.3 cm) height
• Weight: 4.3 lbs
• UL Listed: Suitable for wet locations
• Warranty: 10 year sensor warranty

Features

• Temperature compensation for consistent detection in varying ambient temperatures
• Advanced detection logic minimizing false triggers
• Horizontal lock with no-tool joints for fast, error-free installation
• Protected manual override with auto reset at dawn
• Color matched vandal resistant lens and grill
• Can be wired in parallel to switch multiple fixtures
• Compliant with Buy American Act upon request

Downloads & Links

• Instructions
• Spec Sheet
