STL200H Stealth Motion Sensor Floodlight

The STL200H by RAB is a precision-engineered motion sensor floodlight designed for reliable outdoor lighting control. It features a 200° detection pattern, making it suitable for broad area coverage in residential, commercial, and industrial applications. This product is ideal for electrical distributors and lighting solution providers seeking durable, energy-efficient lighting controls with advanced sensor technology. The sensor integrates seamlessly with standard wiring setups and is compatible with wire and cable installations requiring a switchgear supplier's expertise.

Specifications

• Voltage: 120 Volts AC, 60 Hertz
• Switching Capacity: 1000 watts incandescent, 8 amps
• Power Consumption: 1 watt
• Surge Protection: Withstands up to 6000 volts
• Detection Pattern: 200° view
• Time Adjustment: 5 seconds to 12 minutes
• Sensitivity Control: Adjustable from 100% to 30%
• UL Listed: Suitable for wet locations

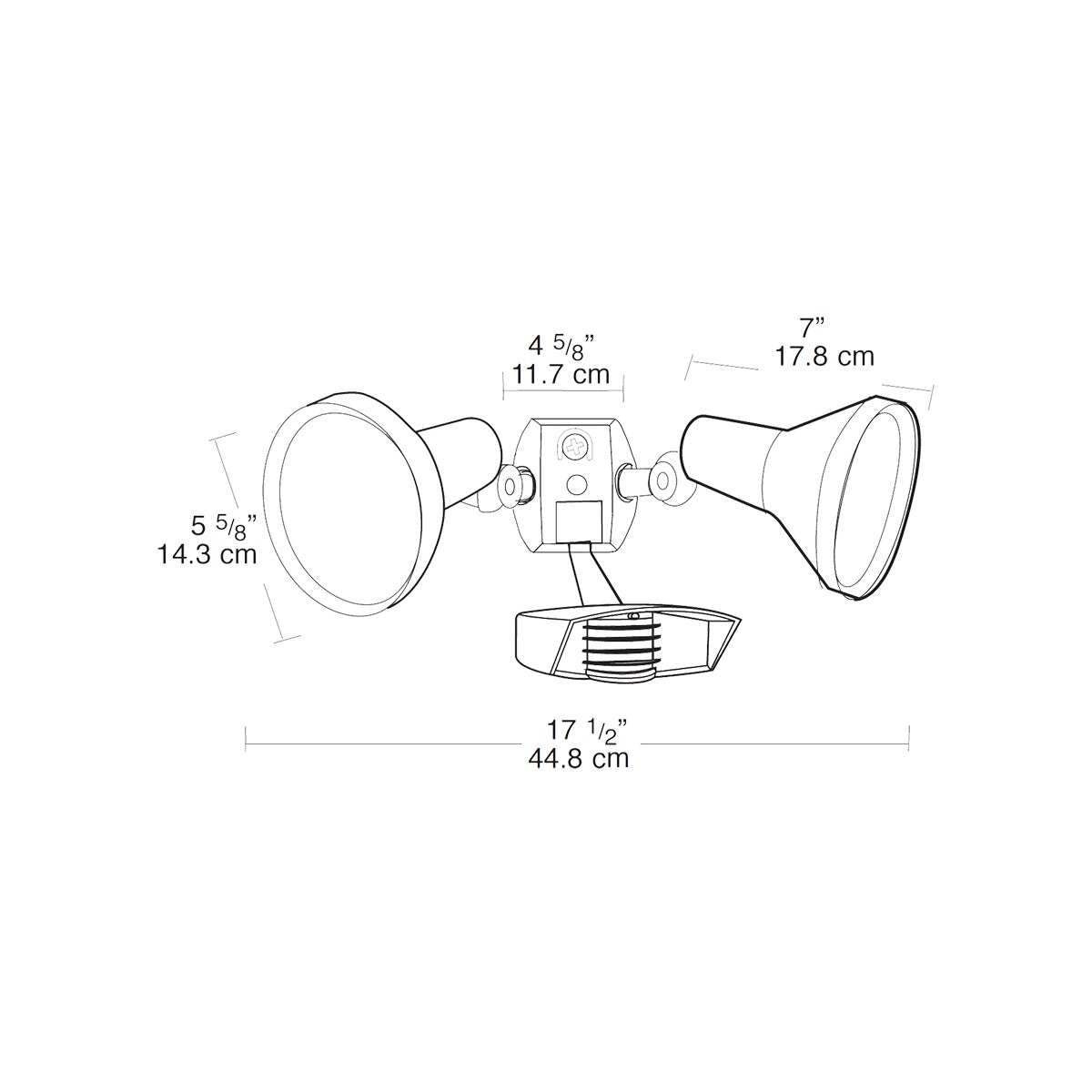

• Dimensions: 17 1/2" W x 7" D x 5 5/8" H (44.8 cm x 17.8 cm x 14.3 cm)
• Weight: 4.2 lbs

Features

• Precision die-cast aluminum floodlights with deluxe H101 shielded floods
• Photoelectric control for daylight deactivation with fully adjustable 24-hour operation
• Advanced detection logic to minimize false triggers
• Temperature compensation for consistent detection in varying ambient temperatures
• Horizontal lock with no-tool joints for fast, error-free installation
• RF immunity with fully shielded circuits for maximum radio frequency protection
• Manual override with two-flip logic and automatic reset at dawn
• LED detection indicator glows red at night for security deterrence
• Color-matched vandal-resistant lens and grill
• Can be wired in parallel for multiple fixture control
