STL110RW Stealth Security Floodlight Sensor

The STL110RW is a white, die-cast aluminum floodlight sensor designed for precise motion detection and automatic lighting control. This product is ideal for electrical distributors and lighting solutions providers seeking reliable security lighting with integrated photoelectric control. It supports up to 1000 watts incandescent or 500 watts fluorescent loads at 120 volts, making it suitable for a variety of wire and cable installations and switchgear supplier applications requiring energy-efficient, automatic outdoor lighting control.

Specifications

• Voltage: 120 Volts AC, 60 Hertz
• Switching Capacity: 1000 watts incandescent @ 120 volts, 8 amps
• Power Consumption: 1 watt
• Surge Protection: Withstands up to 6000 volts
• Detection Angle: 110° view
• Time Adjustment: 5 seconds to 12 minutes
• Sensitivity Control: Adjustable from 30% to 100%
• UL Listing: Suitable for wet locations
• Weight: 2.5 lbs

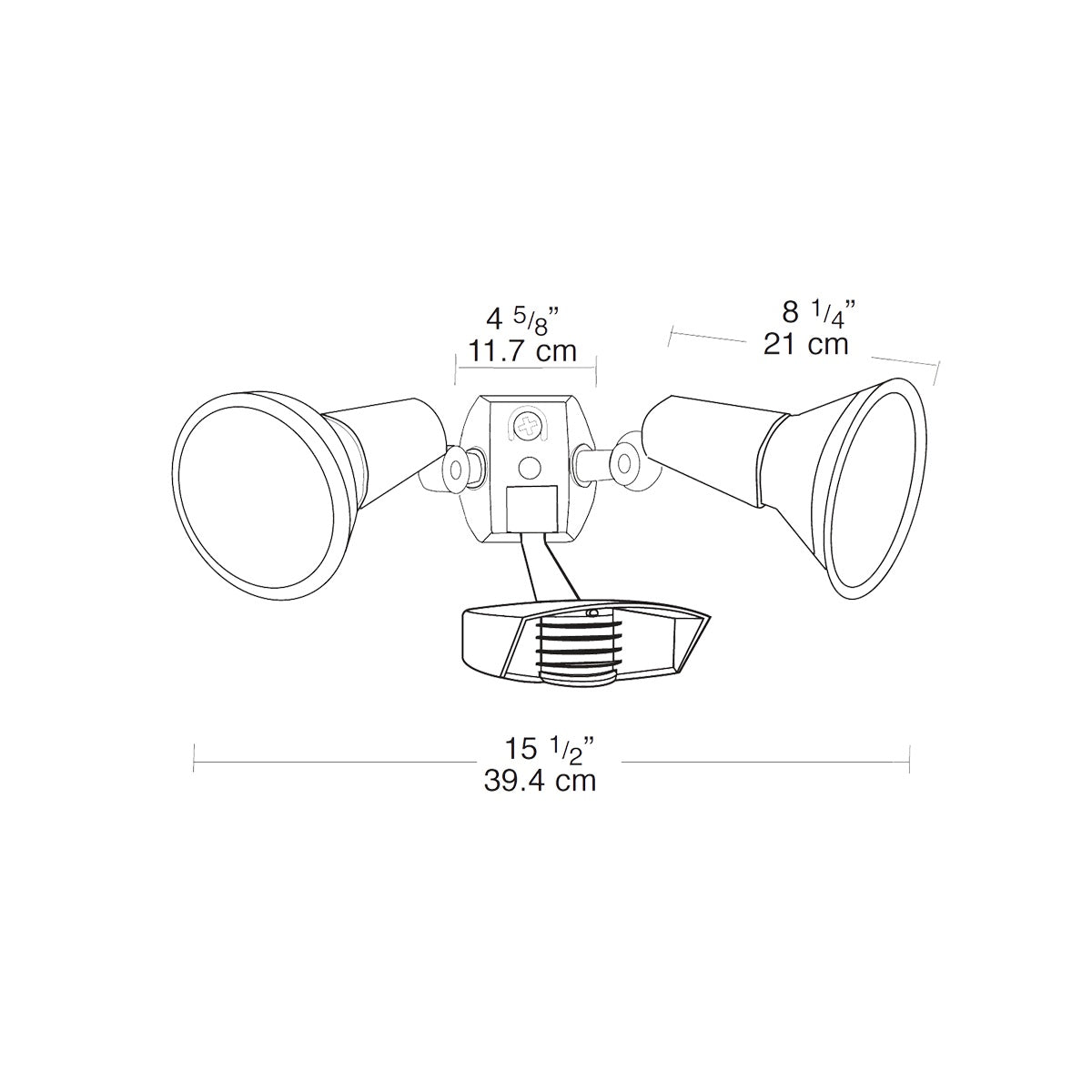

• Dimensions: 15 1/2" (39.4 cm) width, 8 1/4" (21 cm) depth, 4 5/8" (11.7 cm) height

Features

• Advanced detection logic minimizes false triggers
• Temperature compensation for consistent detection in varying ambient temperatures
• Horizontal lock with no-tool joints for fast, error-free installation
• Protected manual override with auto reset at dawn
• LED detection indicator for daytime sensing and on-guard deterrence at night
• Color-matched vandal-resistant lens and grill
• Radio frequency immunity with fully shielded circuits
• Can be wired in parallel for multiple fixtures
• Die-cast aluminum floodlights with 1/2" NPS threaded arm and serrated locking swivel
• Compliant with Buy American Act upon request
• 10-year sensor warranty

Downloads & Links

• Instructions
• Spec Sheet
