STL110R Stealth Photoelectric Security Floodlight

The STL110R is a photoelectric security floodlight designed for automatic outdoor lighting control. Equipped with an infrared sensor, it detects motion from people or vehicles within a 110° detection pattern, switching lights on to enhance security and convenience. Ideal for electrical distributors, lighting solutions providers, wire and cable, and switchgear suppliers, this floodlight supports energy-efficient operation with a low 1 watt power consumption and is suitable for wet locations.

Specifications

• Switching Capacity: 8 amps
• Voltage: 120 Volts AC, 60 Hertz
• Power Consumption: 1 watt
• Surge Protection: Withstands up to 6000 volts
• Detection Pattern: 110° view
• Time Adjustment: 5 seconds to 12 minutes
• Wide Sensitivity Control: Adjustable from 100% to 30%
• Switching Capacity: 1000 watts incandescent @ 120 volts
• UL Listed: Suitable for wet locations
• Weight: 2.5 lbs

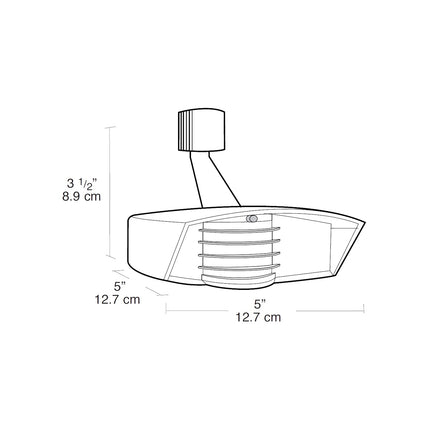

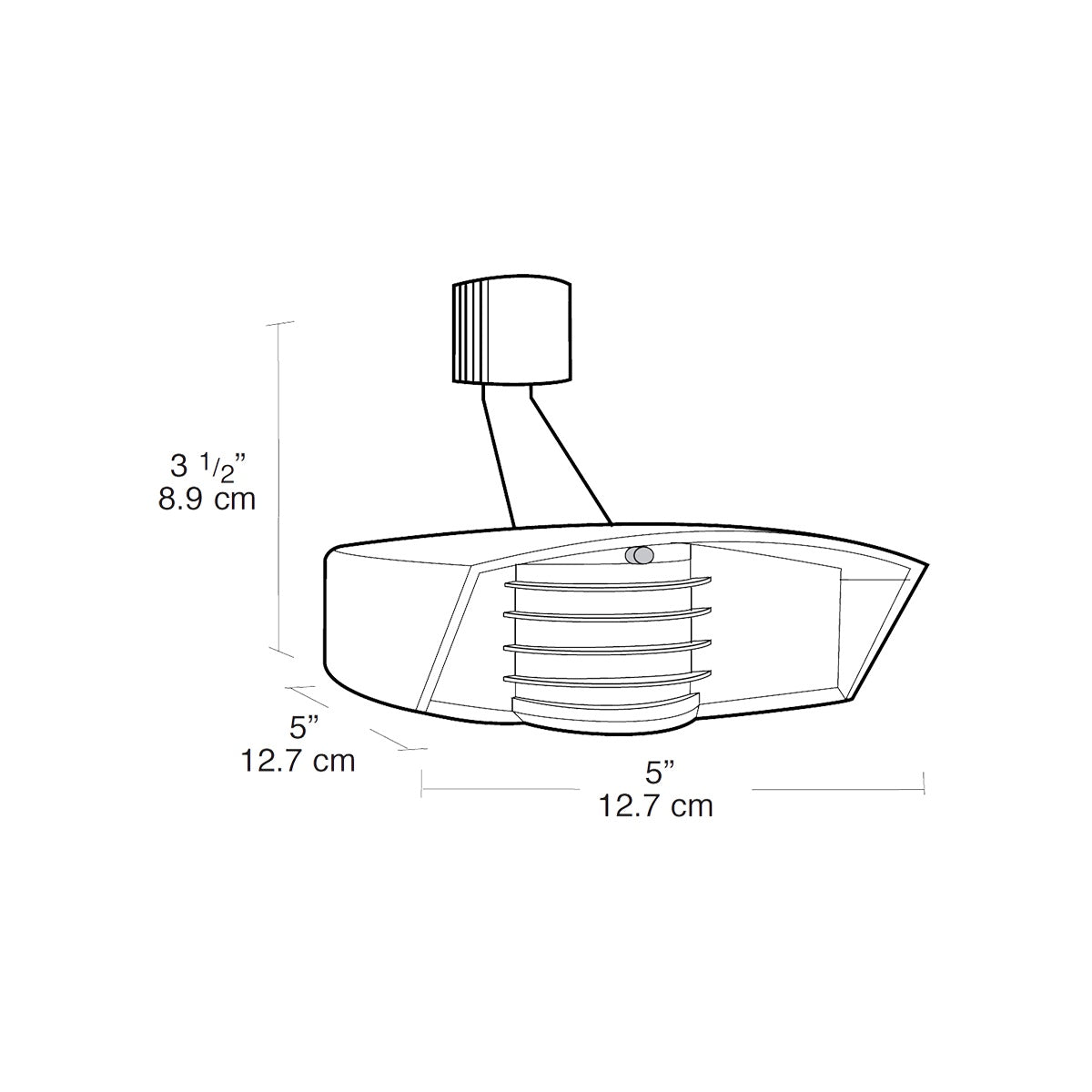

• Dimensions: 5" W x 5" D x 3.5" H (12.7 cm x 12.7 cm x 8.9 cm)

Features

• Infrared sensor with advanced detection logic to minimize false triggers
• Photoelectric control deactivates lights during daylight with fully adjustable settings for 24-hour operation or custom applications
• Temperature compensation for consistent detection in varying ambient temperatures
• Horizontal lock and no-tool joints for fast, error-free installation and stable sensing pattern
• Precision die cast aluminum floodlights with 1/2" NPS threaded arm and serrated locking swivel for standard mounting boxes
• LED detection indicator glows red at night for "on-guard" deterrence and shows sensor activity during daytime
• Protected manual override with auto reset after dawn; no extra wiring required
• RF immunity with circuits fully shielded for maximum radio frequency protection
• Can be wired in parallel for multiple fixtures
• Color matched vandal resistant lens and grill
• 10-year sensor warranty
