STL110HW Lighting Sensor Floodlight - Motion Sensor Lighting Solutions

The STL110HW is a precision-engineered outdoor lighting sensor floodlight designed for automatic activation of lights upon detecting motion. Manufactured by RAB, this product is ideal for electrical distributors and switchgear suppliers seeking reliable lighting solutions with integrated motion detection. It features twin die-cast aluminum floodlights with deluxe shielding, pre-wired and assembled on a universal CU4 cover plate, suitable for wet locations and various mounting configurations.

Specifications

• Manufacturer: RAB
• Model Number: STL110HW
• Weight: 4.2 lbs
• Voltage: 120 Volts AC, 60 Hertz
• Power Consumption: 1 Watt
• Switching Capacity: 1000 watts incandescent @ 120 volts, 8 amps
• Surge Protection: Withstands up to 6000 volts
• Sensor Detection Angle: 110° view
• Time Adjustment Range: 5 seconds to 12 minutes
• Sensitivity Control: Adjustable from 100% to 30%
• Photoelectric Control: Fully adjustable, deactivates lights during daylight, supports 24-hour operation or custom settings
• UL Listed for wet locations

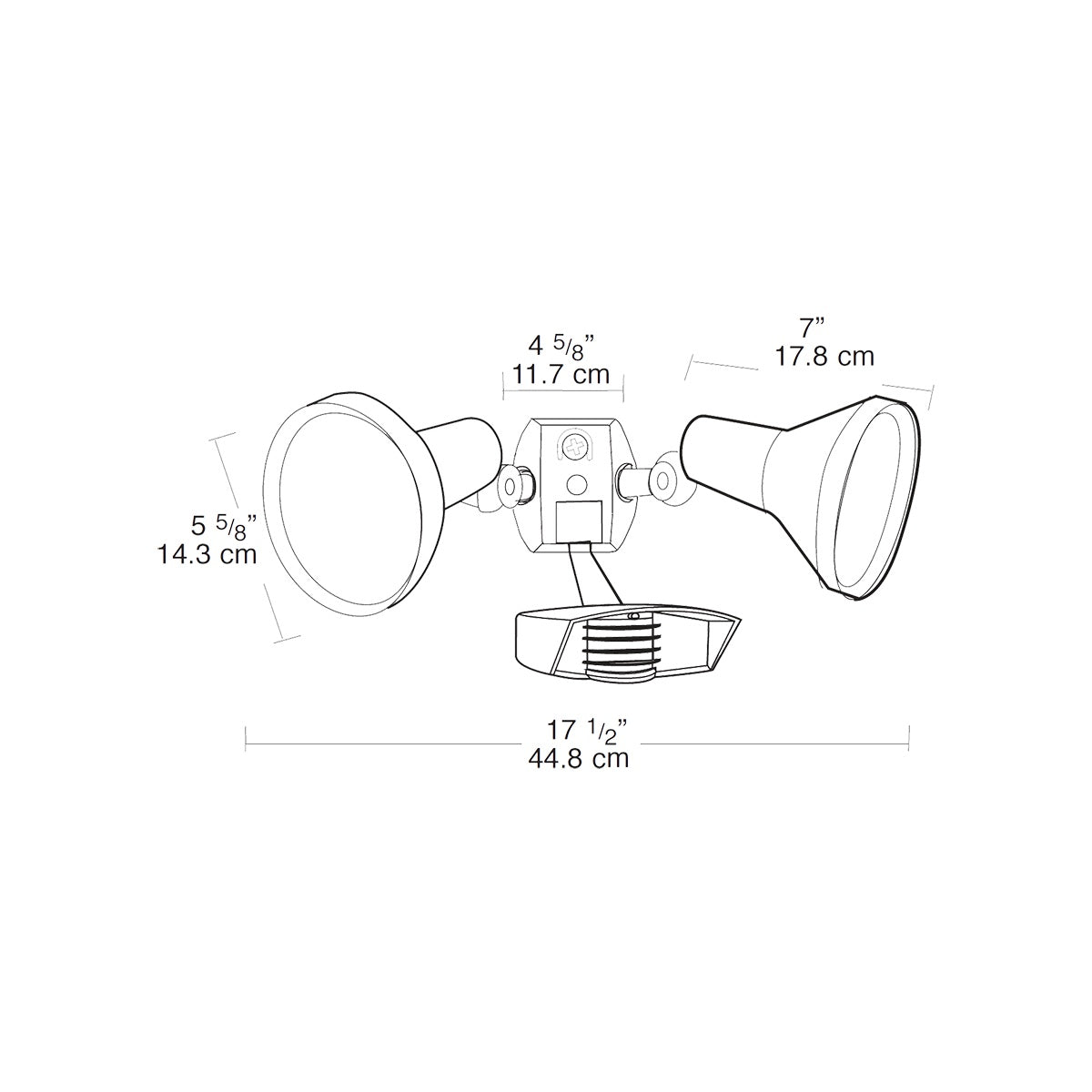

• Dimensions: Width 17.5" (44.8 cm), Floodlight diameter 5.625" (14.3 cm) and 7" (17.8 cm), Mounting plate width 4.625" (11.7 cm)

Features

• Precision die-cast aluminum floodlights with deluxe shielding
• Advanced detection logic minimizes false triggers
• Wall switch manual override with auto reset at dawn, no extra wiring needed
• Fully shielded circuits for maximum radio frequency immunity
• Temperature compensation for consistent detection in varying ambient temperatures
• Horizontal lock no-tool joints for fast, error-free installation
• LED detection indicator glows red at night for “on-guard” deterrence
• Color-matched lenses and vandal-resistant lens and grill
• Customized press-on lens masks included to reduce coverage easily
• Can be wired in parallel
• 10-year sensor warranty
