STL110H Stealth Outdoor Security Floodlight

The STL110H by RAB is a precision-engineered outdoor security floodlight featuring twin die-cast aluminum H101 Deluxe shielded floods pre-wired and assembled on a universal CU4 cover plate. Designed for reliable automatic lighting control, it incorporates an advanced infrared sensor to detect motion within a 110° field of view, ideal for security and convenience lighting. This product is suitable for electrical distributors and lighting solutions providers seeking robust floodlight fixtures with integrated photoelectric switching for residential or commercial applications.

Specifications

• Voltage: 120 Volts AC, 60 Hertz
• Switching Capacity: 1000 watts incandescent, 8 amps
• Power Consumption: 1 watt
• Surge Protection: Withstands up to 6000 volts
• Detection Angle: 110°
• Time Adjustment: 5 seconds to 12 minutes
• Sensitivity Control: Adjustable from 100% to 30%
• Operating Temperature Compensation: Automatic sensitivity adjustment for consistent detection
• LED Detection Indicator: Shows sensor activation during daytime and glows red at night for deterrence

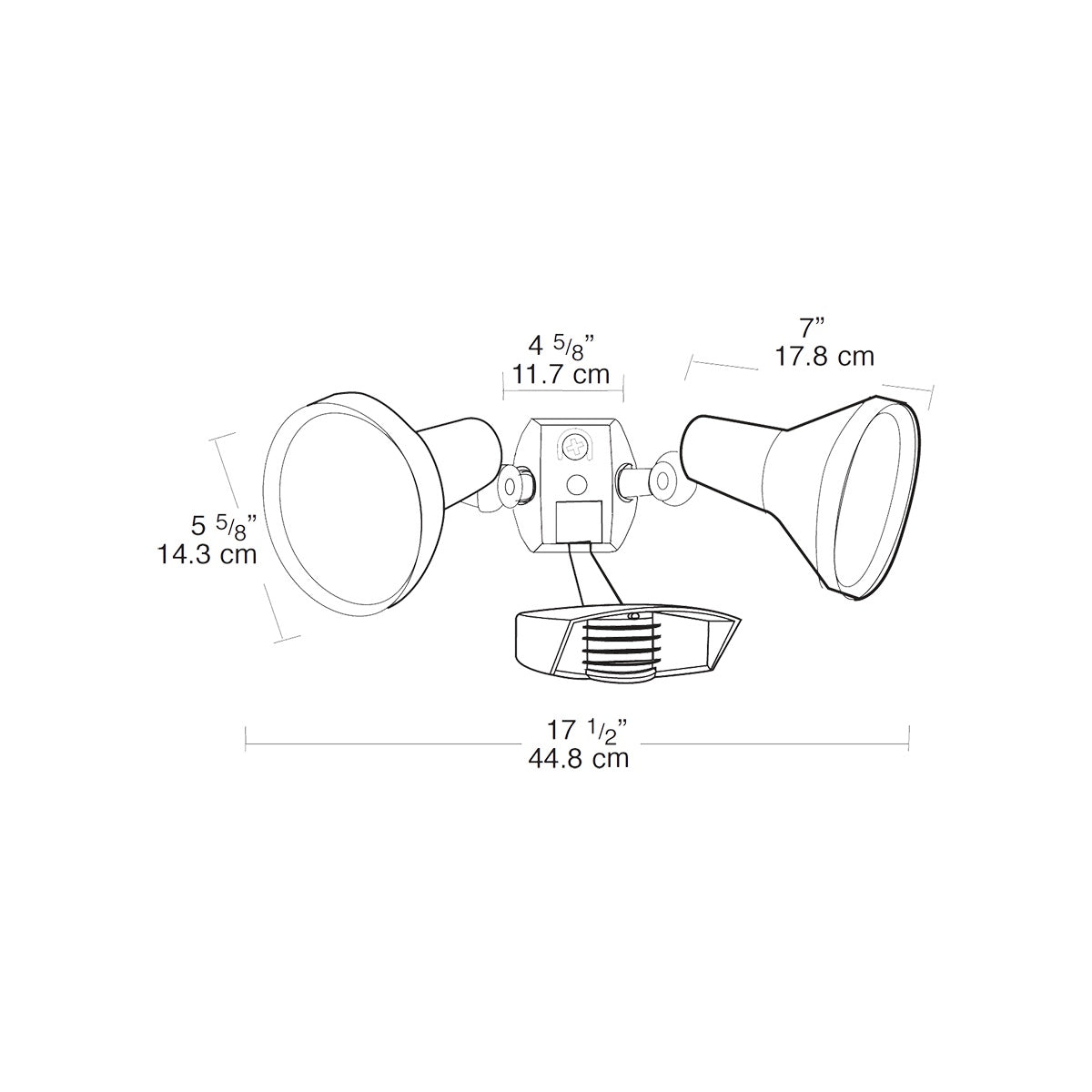

• Dimensions: Width 17 1/2" (44.8 cm), Height 5 5/8" (14.3 cm), Depth 7" (17.8 cm)
• Weight: 4.5 lbs
• UL Listed and suitable for wet locations

Features

• Precision die-cast aluminum floodlights with vandal-resistant, color-matched lens and grill
• Photoelectric control deactivates lights during daylight; fully adjustable for 24-hour operation or custom settings
• Advanced detection logic minimizes false triggers
• Wall switch manual override with auto-reset at dawn, no extra wiring required
• Horizontal lock with no-tool joints for level, error-free installation
• Fully shielded circuits for maximum radio frequency immunity
• Can be wired in parallel for multiple fixtures
• Includes customized press-apply lens mask to reduce coverage area as needed
• 10-year sensor warranty

Downloads & Links

• Instructions
• Spec Sheet
