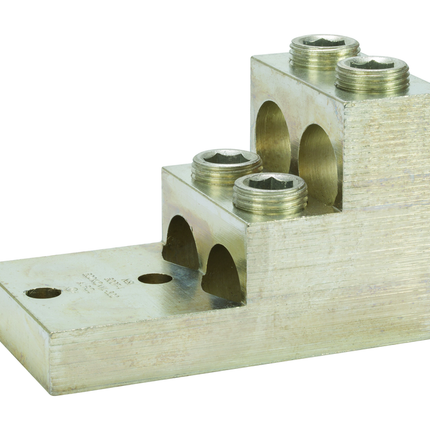

Step Panel Lug (4)800-300
SKU: #303746
Part: #800T-4
UPC: 662381001870
Step Panel Lug (4)800-300
SKU: #303746
Part: #800T-4
UPC: 662381001870
Next day delivery
Description

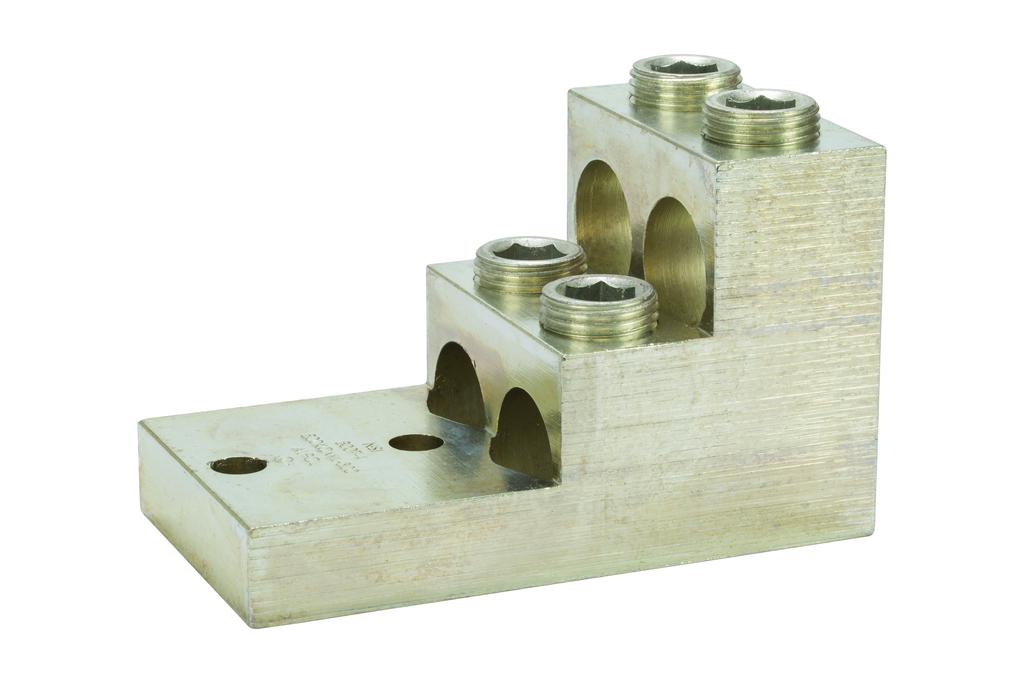

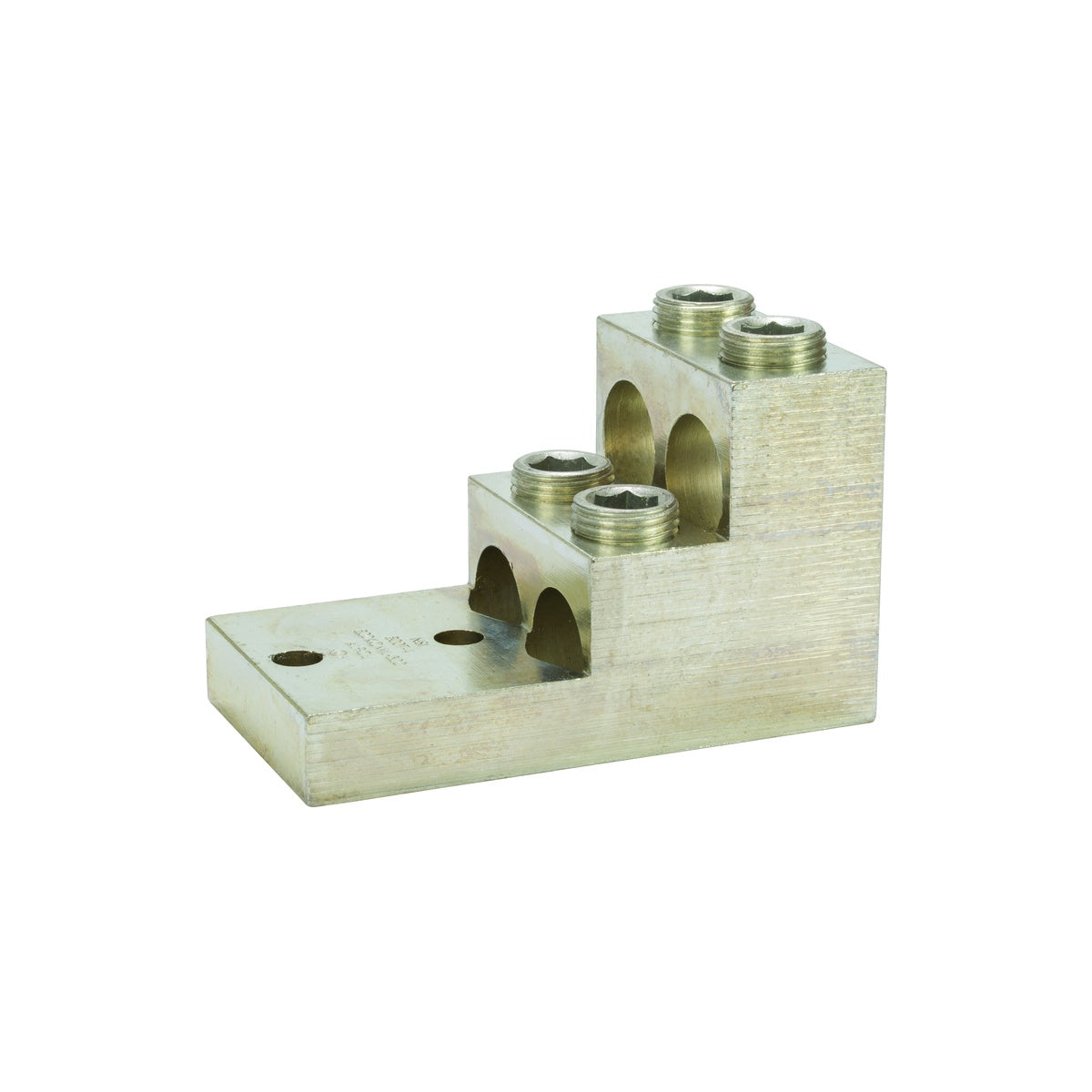

Step Panel Lug (4)800-300 – Wire Termination Connector
The Step Panel Lug (4)800-300 is a 4-port stacked lug designed for efficient wire termination in electrical distribution and lighting solutions. Manufactured by NSI Industries, this connector minimizes width by stacking wire holes vertically, making it suitable for compact switchgear assemblies and wire and cable management systems.
Specifications
- Application: Wire Termination
- Material: Aluminum (6061T-6 alloy)
- Finish: Tin-Plated
- Voltage Rating: 600 volts (2000V max. per UL486B)
- Temperature Rating: 90 degrees Celsius
- Dimensions (L x W x H): 4.91 in x 2.63 in x 3 in
- Mounting Hole Spacing: NEMA standard 1.75 inches
- Weight: 3.04 lbs
- UL Listing: UL486A/B
- Country of Origin: United States
- Manufacturer Part #: 800T-4
- Order Minimum: 1
Features
- Stacked wire holes to minimize connector width
- Compatible with copper and aluminum conductors
- Tin plating for low contact resistance
- Made in the USA ensuring quality and compliance
