Description

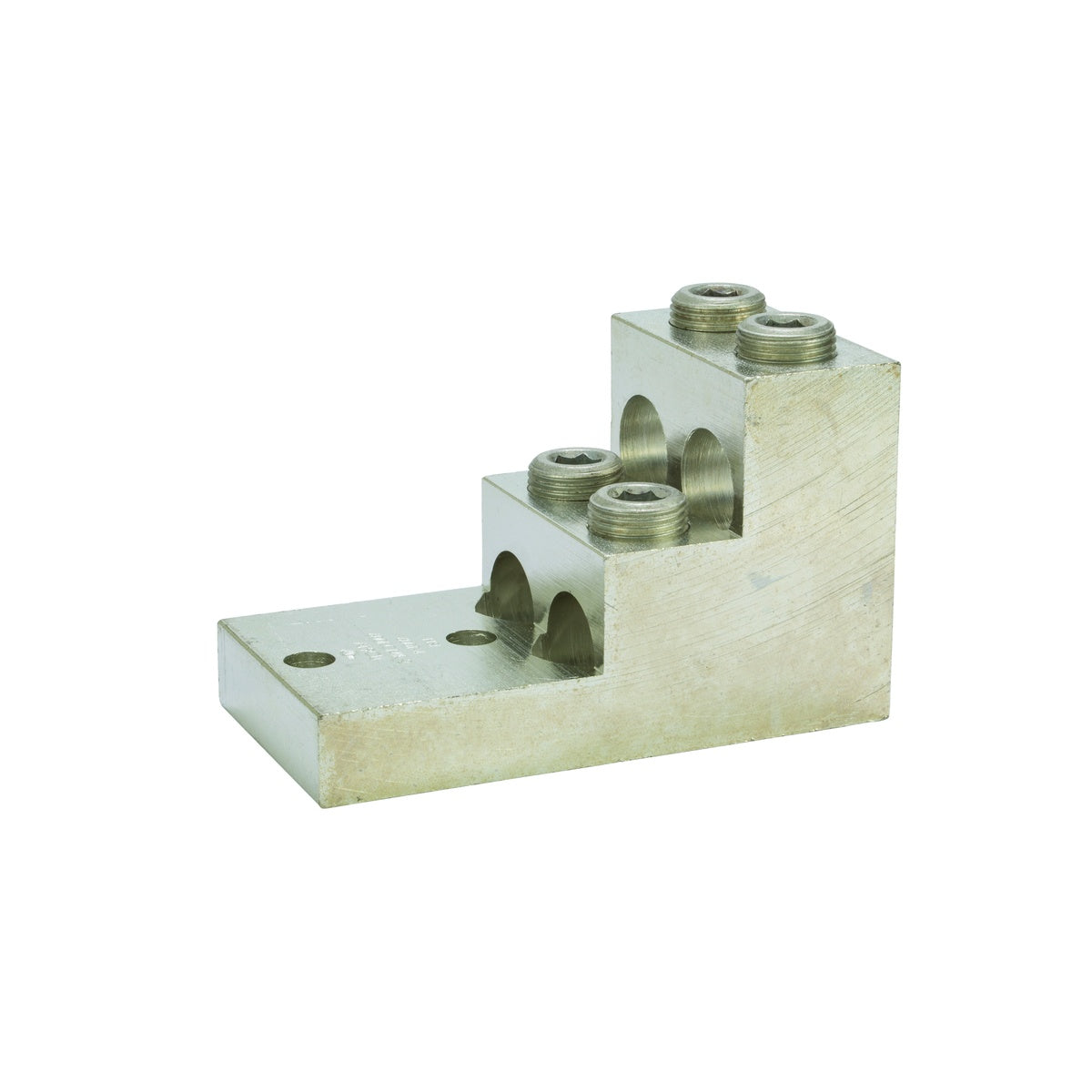

Step Panel Lug (4) 600-2 – Electrical Connector
The Step Panel Lug (4) 600-2 is a 4-port stacked lug designed for electrical distribution and wire management applications. It features large size set screw connectors with wire holes stacked vertically to minimize connector width. Suitable for use by electrical distributors and switchgear suppliers, this lug accommodates copper and aluminum conductors and supports wire and cable connections in lighting solutions and industrial electrical systems.
Specifications
- Material: 6061T-6 Aluminum Alloy
- Finish: Tin-Plated
- Voltage Rating: 600 volts (2000V max. per UL486B)
- Temperature Rating: 90 degrees Celsius
- Mounting Hole Spacing: NEMA standard 1.75"
- Dimensions (L x W x H): 4.91 in x 2.5 in x 3 in
- Manufacturer Part #: 600T-4
- Country of Origin: United States
- Product Weight: 2.82 lbs
Features
- Four stacked wire holes to reduce connector width
- Compatible with copper and aluminum conductors
- Tin plating for low contact resistance
- UL486A/B Listed for safety and reliability
- Made in USA
