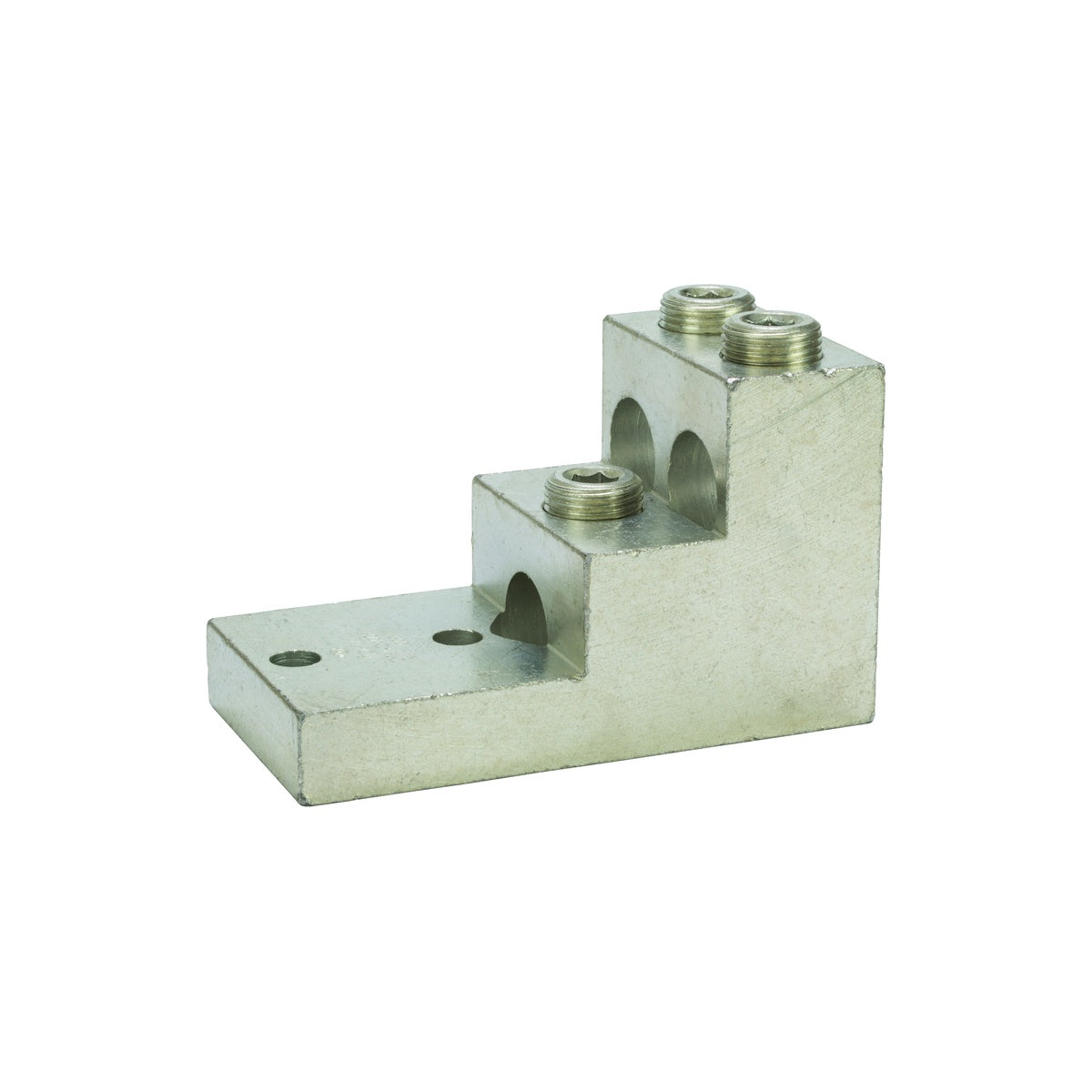

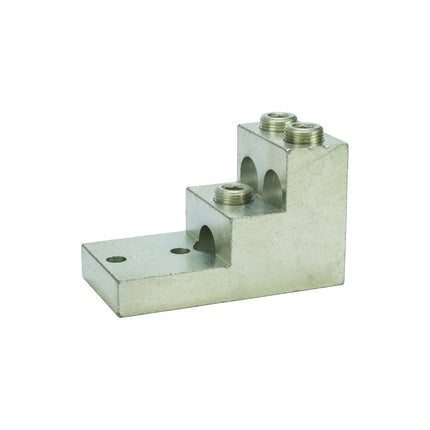

Step Panel Lug (3) 600-2 – Electrical Connector for Wire and Cable

The Step Panel Lug (3) 600-2 is a 3-port stacked lug designed for efficient electrical connections in wire and cable applications. Manufactured by NSI Industries, this connector is suitable for use in electrical distribution and switchgear assemblies, providing reliable performance for copper and aluminum conductors. Its compact stacked design minimizes connector width, optimizing panel space in lighting solutions and electrical systems.

Specifications

• Material: 6061T-6 Aluminum Alloy
• Finish: Tin-Plated
• Voltage Rating: 600 volts (2000V max per UL486B)
• Temperature Rating: 90 degrees Celsius
• Mounting Hole Spacing: NEMA standard 1.75 inches
• Dimensions (L x W x H): 4.91 in x 2.5 in x 3 in
• Order Minimum: 1 unit
• Product Weight: 3.12 lbs
• Manufacturer Part Number: 600T-3
• Country of Origin: United States
• UL Listing: UL486A/B

Features

• Stacked lug design reduces connector width for compact panel installations
• Compatible with both copper and aluminum conductors
• Tin plating ensures low contact resistance and corrosion protection
• Constructed from durable 6061T-6 aluminum alloy for strength and conductivity
• Made in the USA, ensuring quality manufacturing standards
