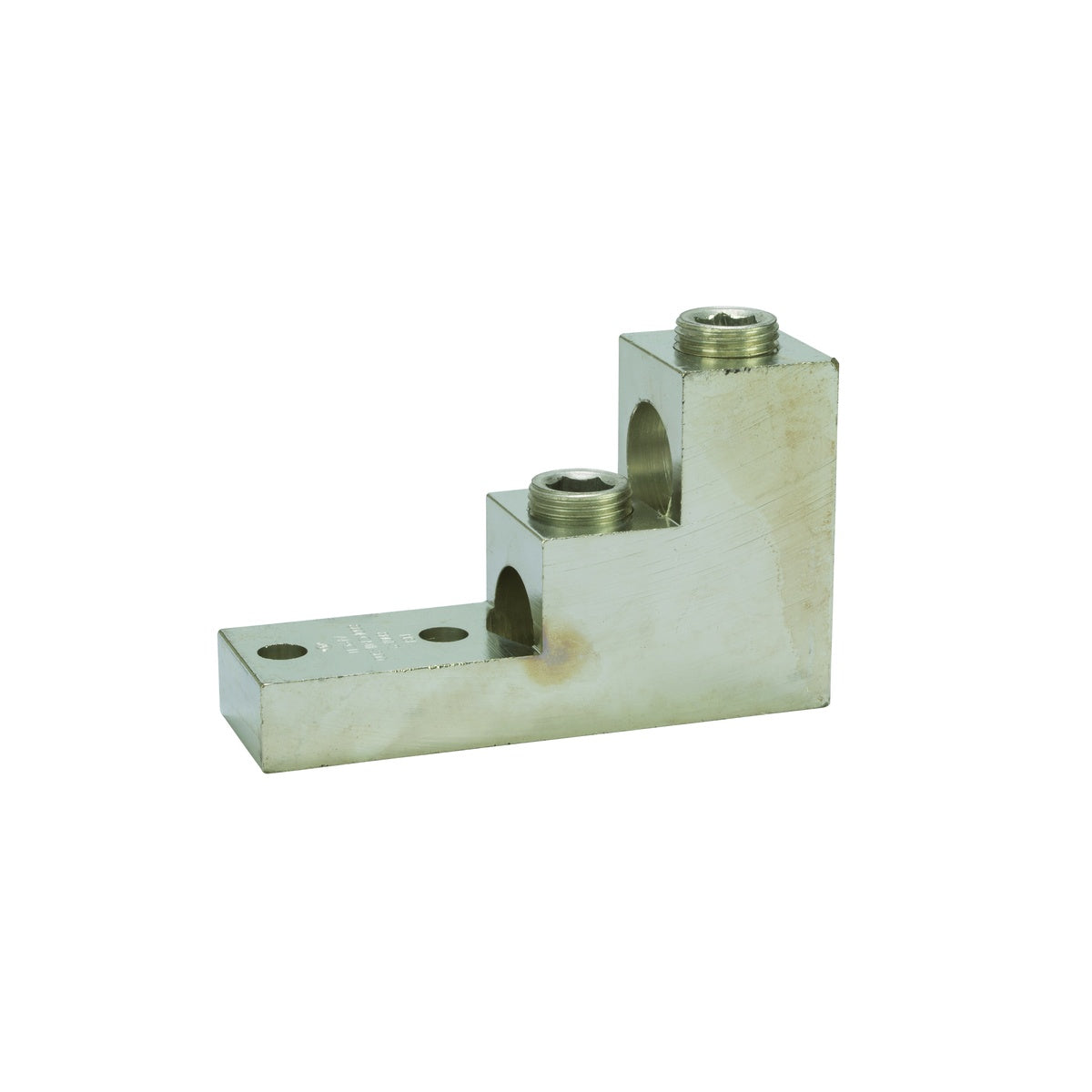

Step Panel Lug (2)800-300 – Electrical Connector for Wire and Cable

The Step Panel Lug (2)800-300 is a 2-port stacked lug designed for efficient electrical connections in wire and cable applications. Manufactured by NSI Industries, this lug minimizes connector width by stacking wire holes vertically. It is suitable for use with both copper and aluminum conductors, making it a reliable component for electrical distributors and switchgear suppliers.

Specifications

• Material: 6061T-6 Aluminum Alloy
• Finish: Tin-Plated
• Voltage Rating: 600 volts (2000V max. per UL486B)
• Temperature Rating: 90 degrees Celsius
• Mounting Hole Spacing: NEMA standard 1.75"
• Dimensions (L x W x H): 4.91 in x 1.5 in x 3 in
• Order Minimum: 1
• Product Weight: 1.8 lbs
• Manufacturer Part #: 800T-2
• Country of Origin: United States
• UL Listing: UL486A/B Listed

Features

• Stacked wire holes reduce connector width
• Compatible with copper and aluminum conductors
• Tin plating ensures low contact resistance
• Durable 6061T-6 aluminum alloy construction
• Meets NEMA standards for mounting hole spacing
• Made in USA for quality assurance
