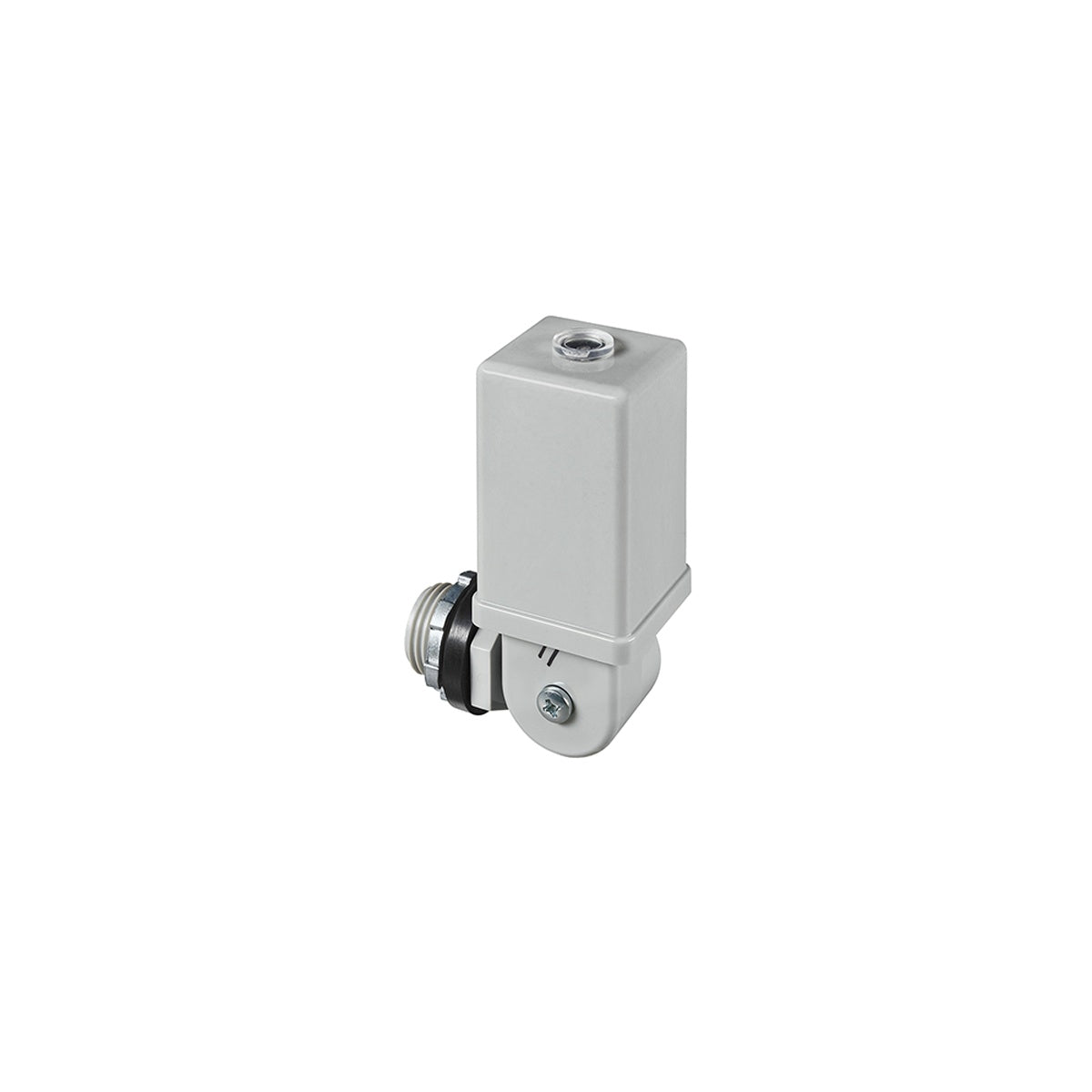

Stem & Swivel Pencil Adv Electronic LED 105-305 VAC Photocontrol

This Stem & Swivel Pencil Advanced LongLife ZeroCross Electronic Instant Response LED Photocontrol is designed for precise dusk-to-dawn control in various lighting applications. Suitable for use in LED, CFL, induction, HPS, and HID lighting fixtures, it provides instant response switching with enhanced surge protection. Ideal for electrical distributors and lighting solutions providers, this photocontrol is engineered to withstand extreme weather conditions and operate reliably within a wide temperature range.

Specifications

• Voltage: 105-305 VAC, 50/60 Hz
• Tungsten Load: 1000 Watts
• Ballast Load: 1800 VA (US) or 1000 VA (Canada)
• LED Electronic Ballast: 8A or Totaling 2220W @ 277 VAC
• Dielectric Strength: 5000 VAC
• Turn ON Light Level: 1.5 fc Instant On
• Turn OFF Light Level: 1.5:1 (2.25 fc) with 2-5 second delay
• Operating Temperature: -40°F to 158°F (-40°C to 70°C)
• Surge Protection: 445 Joule MOV
• Power Consumption: < 0.5 Watts
• Dimensions: 5.35 in (L) x 2.8 in (W) x 2 in (H)
• Product Weight: 0.26 lbs
• Frequency: 50-60 hertz

Features

• Stem & Swivel design allows aiming the photocell in exact direction to sense natural light while avoiding artificial light
• Long-life Zero-Cross Technology for instant response switching
• Filtered IR non-drifting silicon sensor tuned for human eye response
• Coated circuit board for extreme weather and moisture protection
• Enhanced 445 Joule MOV surge device for improved durability
• Fail Mode: ON to ensure lighting remains active during control failure
• 12-inch wire leads, 18 AWG for easy installation
• UL773 and CSA TIL A15 certified, ANSI C136.10-2010 compliant
• 10-year manufacturer’s warranty
