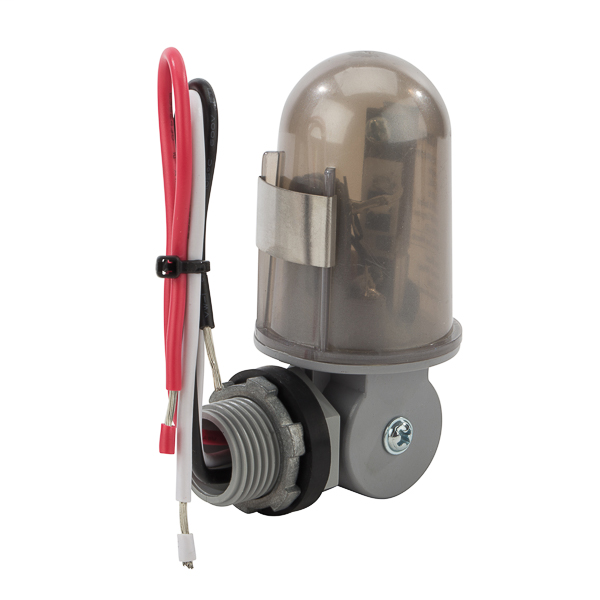

Stem & Swivel 120V 2000W 1800VA 600VA LED Photocontrol

This NSI Industries photocontrol is designed for controlling lighting applications such as flood lamps, patio lamps, and decorative lighting. It is suitable for electrical distributors and lighting solution providers requiring reliable control devices for wire and cable installations or switchgear systems. The device features a 1/2" conduit mount with a 180° swivel Lexan housing, enabling flexible positioning and durability in various environmental conditions.

Specifications

• Voltage: 120 VAC, 50/60 Hz
• Tungsten Rating: 2000W
• Ballast Rating: 1800VA
• LED Rating: 600VA
• Operating Temperature Range: -40 to 140 degrees Fahrenheit
• Turn ON Light Level: 1 to 5 foot-candles
• Turn OFF Light Level: 3 to 15 foot-candles
• Lead Wires: Three color-coded, minimum 6" wire leads, #16 AWG, rated for 105°C
• Power Consumption: Averages under 1 watt
• Fail Mode: ON (contacts remain closed between dusk and dawn)
• Product Weight: 0.2 lbs
• Manufacturer Part Number: 2001
• Certification: cULus Listed

Features

• Conformal coated cadmium sulphide photocell resists moisture and airborne contaminants
• Photocell responds to light spectrum similar to the human eye for accurate light detection
• Delay of up to two minutes prevents false switching caused by passing vehicles or lightning
• Impact and vandal-resistant Lexan dome housing with ultrasonic welds for maximum strength
• Slide cover allows easy ON/OFF adjustment without tools
• Compatible with screw base CFLs for energy savings
• Must be mounted in an upright position for proper operation
• Five-year limited warranty against manufacturing defects
