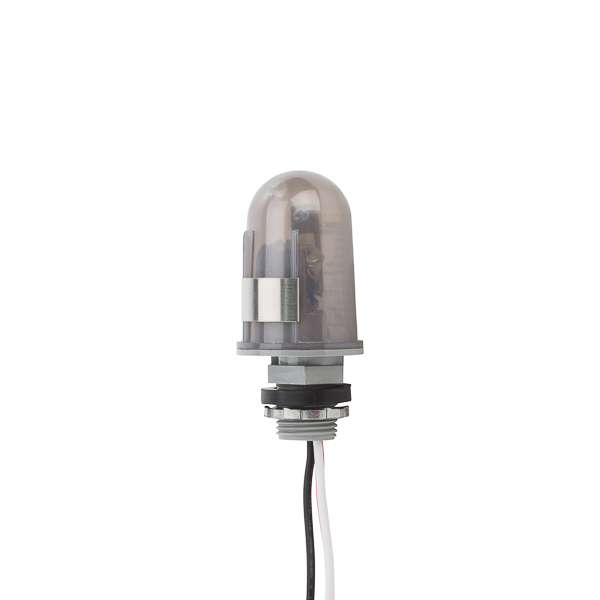

Stem 120V 2000W 1800VA 600VA LED Photocontrol

This Stem 120V 2000W 1800VA 600VA LED photocontrol is designed for use in electrical distribution and lighting solutions, providing reliable automatic switching for flood lamps, patio lamps, and decorative lighting. It is suitable for controlling lighting in commercial, industrial, and residential applications, ensuring energy savings and enhanced operational efficiency for wire and cable and switchgear suppliers.

Specifications

• Voltage: 120 VAC, 50/60 Hz
• Wattage Rating: 2000W Tungsten
• Ballast Rating: 1800VA
• LED Rating: 600VA
• Frequency: 50-60 hertz
• Operating Temperature: -40 to 140 °F
• Environmental Conditions: -40 to 140 °F
• Product Weight: 0.2000 lbs
• Photocell Diameter: 1/2" cadmium sulphide, epoxy conformal coated
• Power Consumption: Averages under 1 watt
• Fail Mode: ON
• Contacts: SPST normally closed, remain closed between dusk and dawn
• Lead Wires: Three color-coded, minimum 6” wire leads, #16 AWG, rated for 105 °C
• Turn ON/Turn OFF Levels: ON at 1 to 5 foot-candles, OFF at 3 to 15 foot-candles
• Warranty: 5 years

Features

• Housing: Impact and vandal-resistant Lexan® enclosure with translucent dome for UV protection
• Photocell: Conformal coated cadmium sulphide sensor resistant to moisture and airborne contaminants
• Operation: Time delay feature (minimum 30 seconds) prevents false switching from transient light sources
• ON/OFF adjustment: Easy field adjustment with slide cover, no tools required
• Energy Savings: Compatible with screw base CFLs and LED lighting
• Mounting: 1/2" conduit mount with watertight connection; must be installed in upright position
• Meets ANSI/UL773A safety standards
