Steel pan box, fan and fixture rated mounting boxes. 70lb fan, 200lb fixture rated. For 1/2" and 5/8" drywall. 6.0 cu.
SKU: #72092
Part: #FBS405
UPC: 018997761859
Steel pan box, fan and fixture rated mounting boxes. 70lb fan, 200lb fixture rated. For 1/2" and 5/8" drywall. 6.0 cu.
SKU: #72092
Part: #FBS405
UPC: 018997761859
Next day delivery
Description

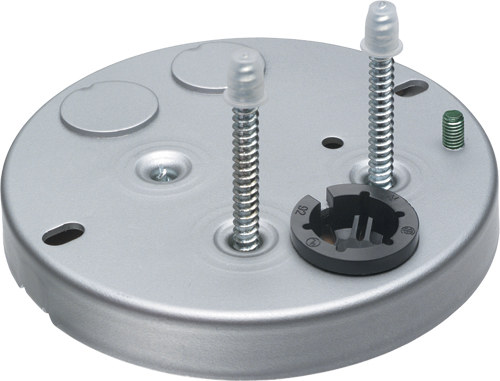

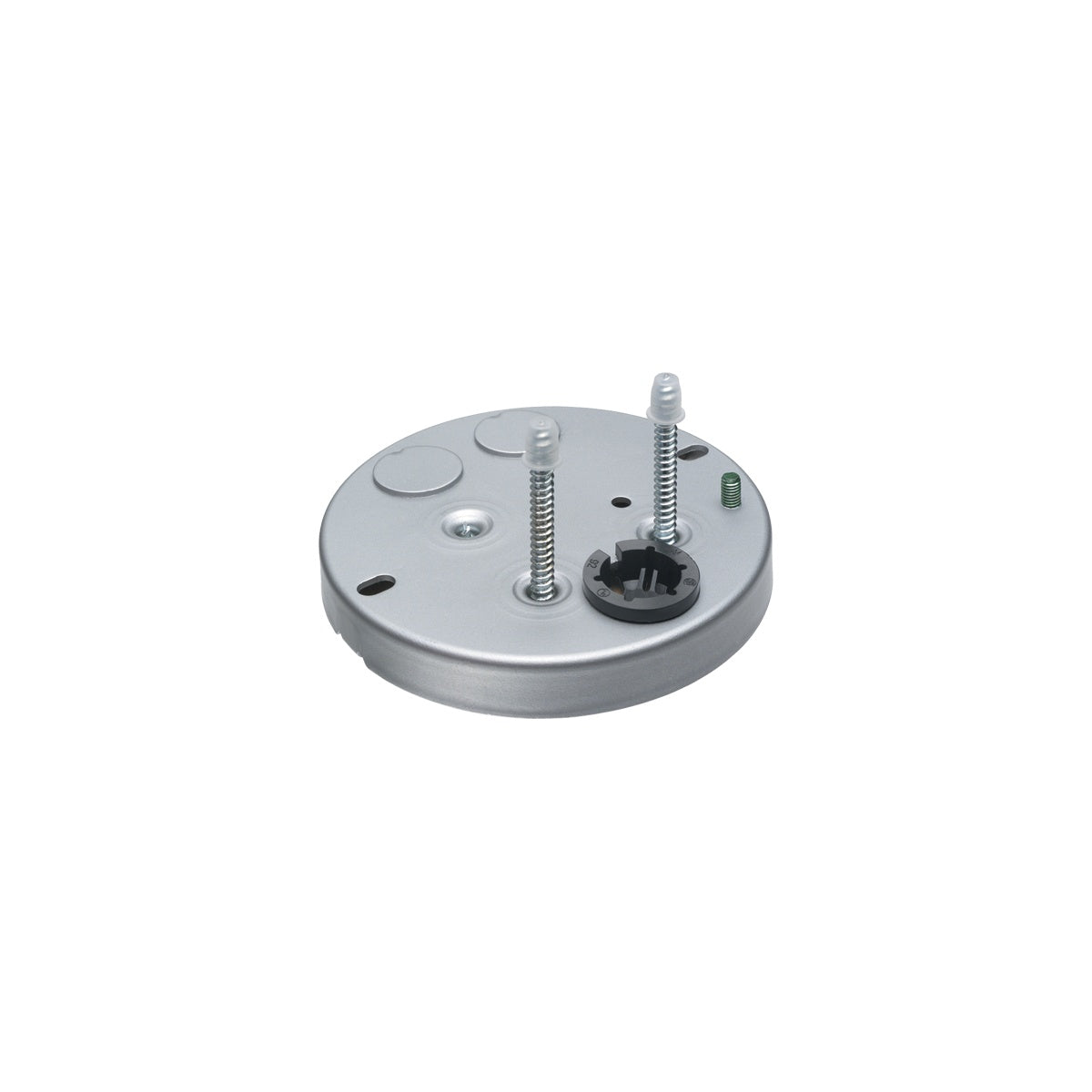

Steel Pan Box, Fan and Fixture Rated Mounting Boxes - Electrical Mounting Solutions
This steel pan box by Arlington Industries is designed for secure mounting of ceiling fans and fixtures. It is suitable for use with 1/2" and 5/8" drywall and provides a reliable solution for electrical distributors and lighting solutions providers looking for durable mounting hardware. The box supports fans up to 70 lbs and fixtures up to 200 lbs, making it ideal for a range of residential and commercial applications. Its construction and features ensure compliance with UL and CSA ratings, facilitating safe and code-compliant installations.
Specifications
- Material: Steel
- Color: Silver
- Product Weight: 11 lbs
- Volume: 6.0 cubic inches
- Drywall Compatibility: 1/2" and 5/8"
- Fan Load Rating: 70 lb (UL rated)
- Fixture Load Rating: 200 lb (UL rated)
- CSA Load Rating: 50 lb fan/fixture
- Manufacturer: Arlington Industries
- Manufacturer Part #: FBS405
Features
- Steel construction with plated finish for durability and corrosion resistance

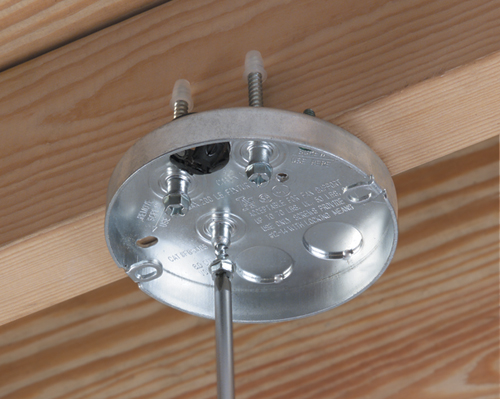

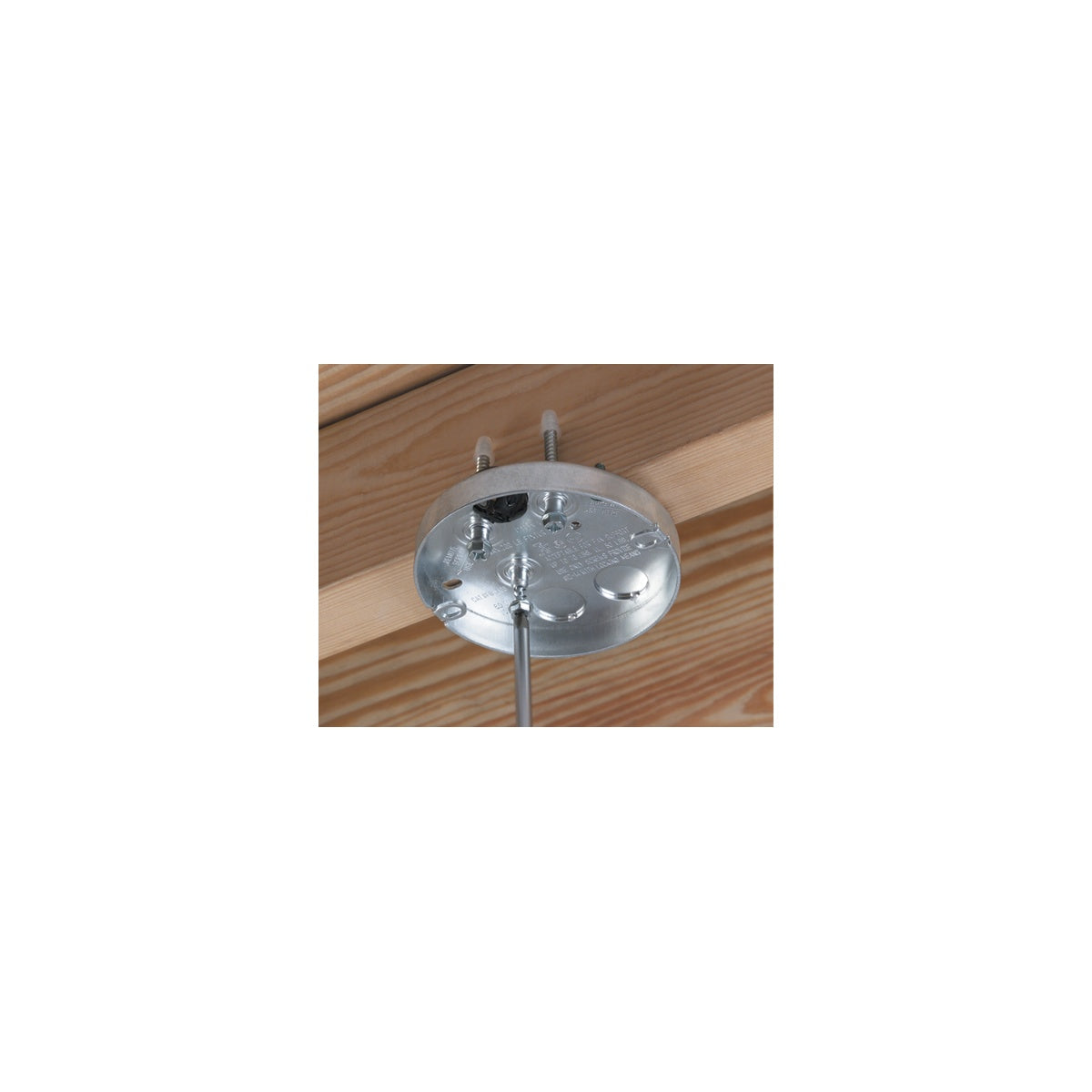

- Mounts directly to joist for secure installation
- Comes with installation screws, installed NM cable connector, mud cover, and additional knockouts
- Protective plastic tips on installation screws for added safety
- Combination hex/Phillips head screws for easy installation with power screwdrivers
- Fan/fixture installation screws are pre-installed and ready for bracket mounting
- UL and CSA safety certified for fan and fixture mounting
- Self-contained design with no loose parts to misplace
