Steel octagonal fan and fixture mounting box. 70lb fan rated, 200lb fixture rated. 2" box depth. 20.0 cu.
SKU: #72110
Part: #FBS420
UPC: 018997752000
Steel octagonal fan and fixture mounting box. 70lb fan rated, 200lb fixture rated. 2" box depth. 20.0 cu.
SKU: #72110
Part: #FBS420
UPC: 018997752000
Next day delivery
Description
Steel Octagonal Fan and Fixture Mounting Box – Electrical Distributor Lighting Solutions

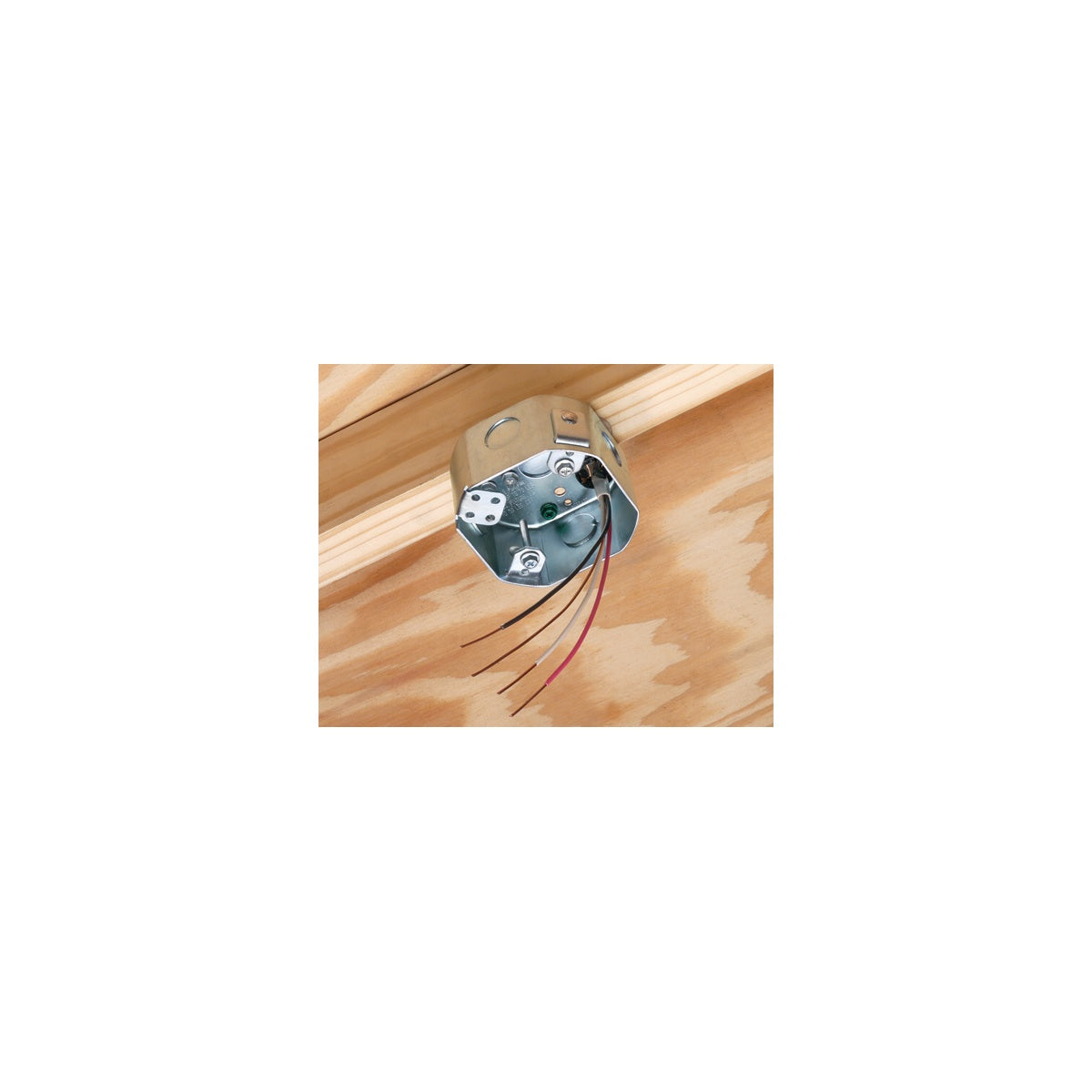

This steel octagonal fan and fixture mounting box is designed for secure ceiling fan and lighting fixture installations, mounting directly under a joist. It is suitable for electrical distributors and switchgear suppliers requiring reliable wire and cable support solutions in residential or commercial lighting applications. With a 2-inch box depth and 20.0 cubic inch volume, it supports heavy-duty mounting needs.
Specifications
- Material: Steel
- Color: Silver
- Box Depth: 2 inches
- Volume: 20.0 cubic inches
- Weight: 18.75 lbs
- UL Rating: 70 lb fan, 200 lb fixture
- Manufacturer Part #: FBS420
- UPC: 018997752000
- Dimensions: 4.25" x 3.572" x 2.0"
Features
- Mounts under joist for a super-secure installation
- Comes ready-to-install with no loose parts
- Combination hex/Phillips head screws for easy power screwdriver installation
- Includes installed NM cable connector, mud cover, multiple knockouts, and pre-parked installation screws
- UL and CSA rated for fan and fixture load capacities
- Designed for new work applications
