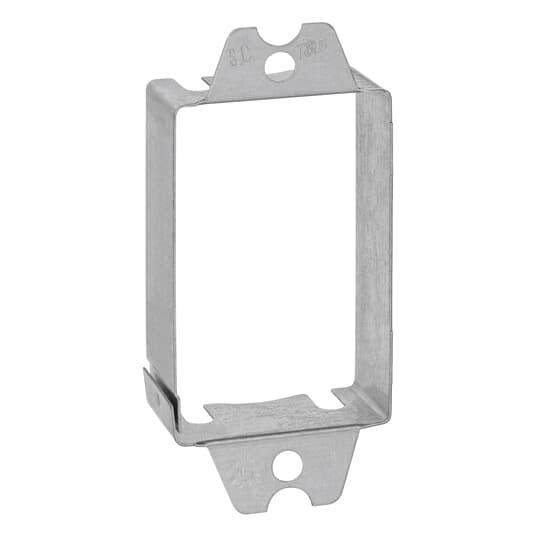

STEEL BOX EXTENSION - Electrical Box Extension

The Steel Box Extension is designed to increase the cubic capacity of single gang switch boxes, providing an additional 3.5 cubic inches of space. Manufactured from pre-galvanized steel, this extension fits snugly inside all single gang switch boxes, making it suitable for electrical distributors and switchgear suppliers requiring reliable and durable wire management solutions.

Specifications

• Material: Steel
• Color: Silver
• Cubic Capacity: 3.5 cu in
• Maximum Adjustable Depth: 7/8 inch
• Number of Outlets: 1
• Size: 2 inches Height x 3 inches Width x 7/8 inches Depth
• Product Weight: 3.15 lbs
• Includes: 1-1/4 inch long screws for mounting
• Manufacturer: Steel City
• Manufacturer Part Number: SBEX

Features

• Pre-galvanized steel construction for corrosion resistance
• Fits snugly inside all single gang switch boxes for secure installation
• Adjustable depth up to 7/8 inch to accommodate wiring needs
• Includes mounting screws for easy installation
• Complies with RoHS directive for environmental safety
