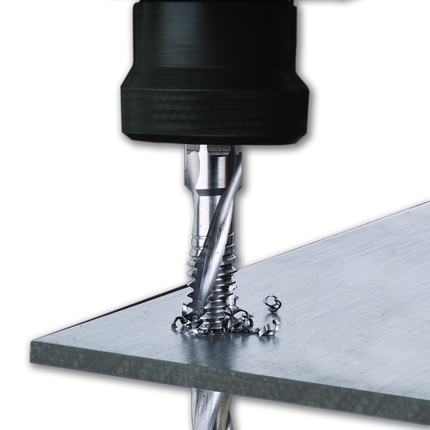

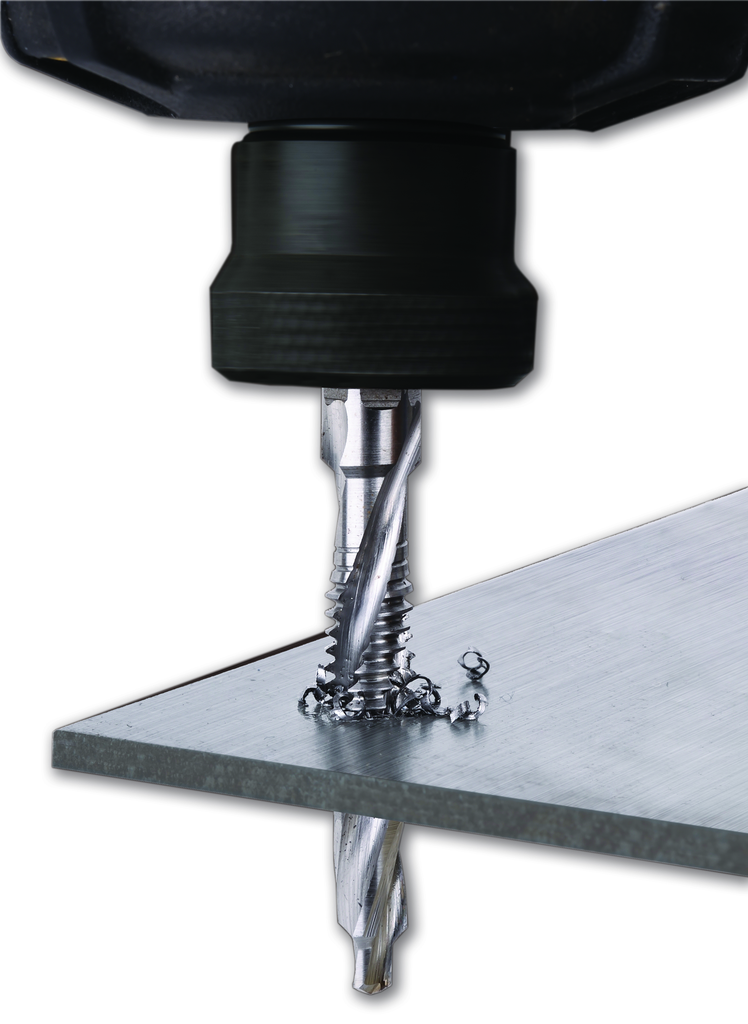

Standard Drill Tap 8-Piece Kit with Drill Tap

The IDEAL® Standard Drill Tap 8-Piece Kit combines drilling, tapping, and deburring into a single operation, providing an efficient solution for electrical distributors and lighting solutions providers requiring precise hole preparation. Constructed from High Speed Steel (HSS) for strength and durability, these drill taps feature a 1/4” hex shank compatible with cordless drills and impact drivers. The kit is rated for drilling and tapping up to 10 gauge mild steel, aluminum, copper, brass, and plastic, making it suitable for various wire and cable installation and switchgear supplier applications.

Specifications

• Manufacturer: IDEAL Industries
• Manufacturer Part #: 36-600
• Product Weight: 0.4900 lbs
• Bit Shank: 1/4” hex shank
• Material: High Speed Steel (HSS)
• Recommended RPM Range: 300 to 1500 RPM
• Kit Sizes Included: 6-32, 8-32, 10-24, 10-32, 12-24, 1/4-20 plus extra 1/4-20 and 8-32

Features

• Combination drill, tap, and deburr in one operation
• 3-flute design for faster chip removal and minimized binding
• SmoothStart™ tip reduces thread damage and extends bit life
• Balanced hardened tapping edges for durability
• Deburring cutting edge provides clean holes and prevents over drilling
• Compatible with cordless and impact-rated drills
• Rugged, durable molded plastic storage case included

Downloads & Links

• IS 0003-1 36-600 Instructions
• P-5491 Drill Tap SS.indd
