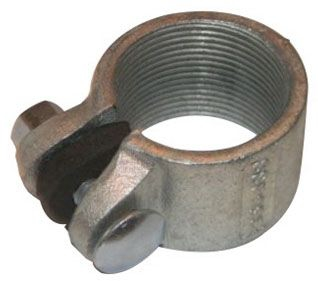

SSP-125 IMC/Rigid Conduit Coupling – Threaded Conduit Coupling

The SSP-125 is a threaded rigid conduit and IMC Bolt-On‚Ñ¢ coupling designed for fast, cost-effective joining of two sections of threaded rigid conduit and IMC. It is suitable for applications requiring close conduit spacing, tight clearance locations, and irregular conduit bends, providing a practical alternative to unions. This product is ideal for electrical distributors and switchgear suppliers requiring reliable conduit connections in lighting solutions and wire and cable installations.

Specifications

• Application: For Rigid Conduit And IMC
• Material: Malleable or Ductile Iron
• Connection: FNPT
• Length: 1-5/8 IN
• Diameter: 2.13 inches
• Outside Diameter: 2-1/8 IN
• Product Weight: 0.5950 lbs
• Manufacturer: O-Z Gedney
• Manufacturer Part #: SSP-125

Features

• Concrete tight seal
• Fast installation with Slip Bolt-On‚Ñ¢ coupling design
• Slip Bolt-On‚Ñ¢ coupling slips over one threaded conduit end, aligns with second conduit, and tightens with bolts
• Suitable for use with Rigid Metal Conduit (RMC) and Intermediate Metal Conduit (IMC)
• Durable zinc electroplated finish on malleable iron coupling
• Steel hardware with zinc electroplate and neoprene gasket for secure fit
• UL Listed to Standard 514B and CSA Certified
