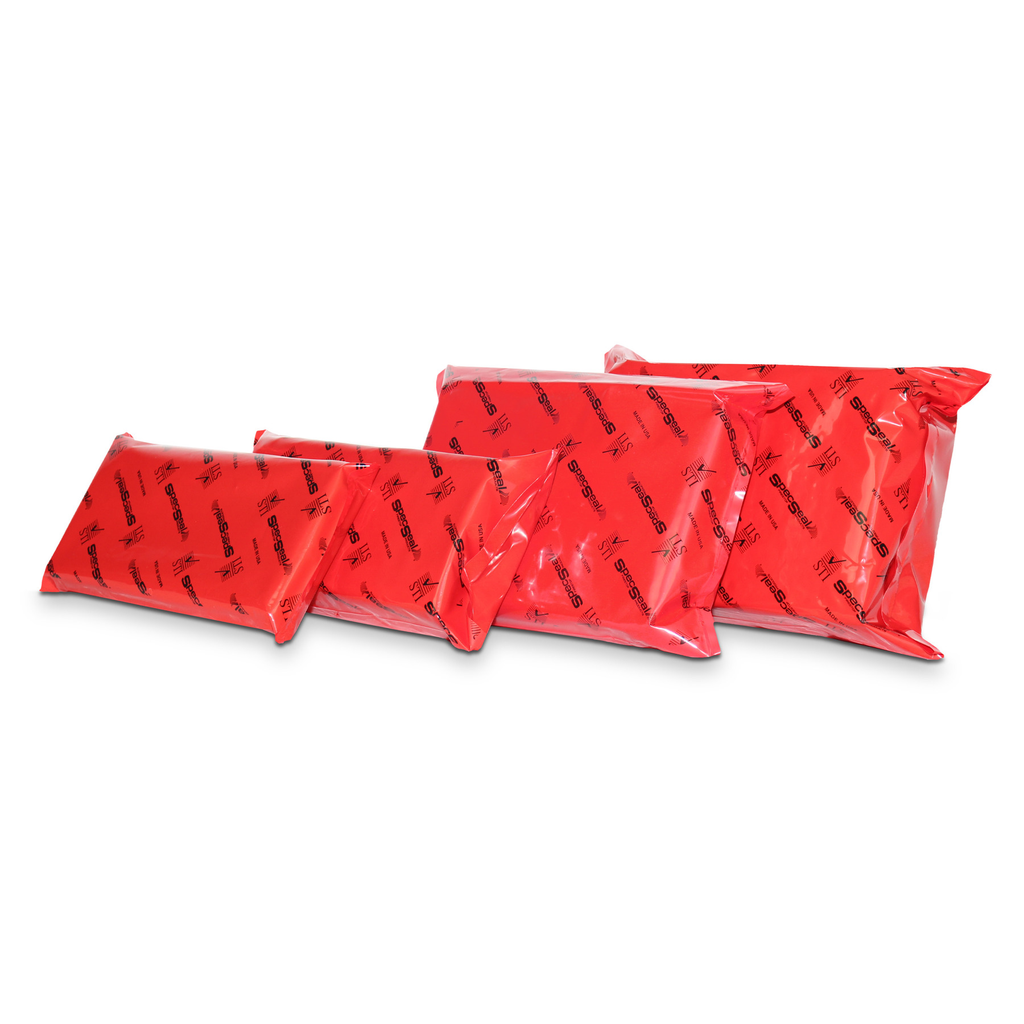

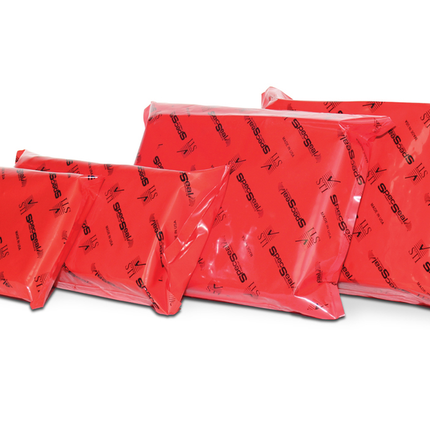

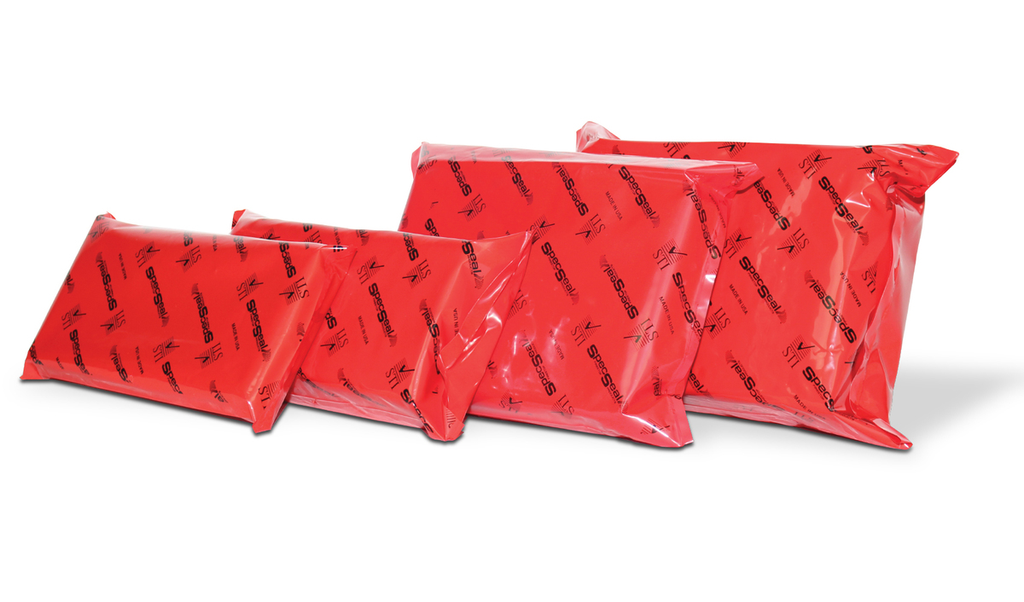

SSB Intumescent Firestop Pillow 3"x6"x9" Firestop Pillow

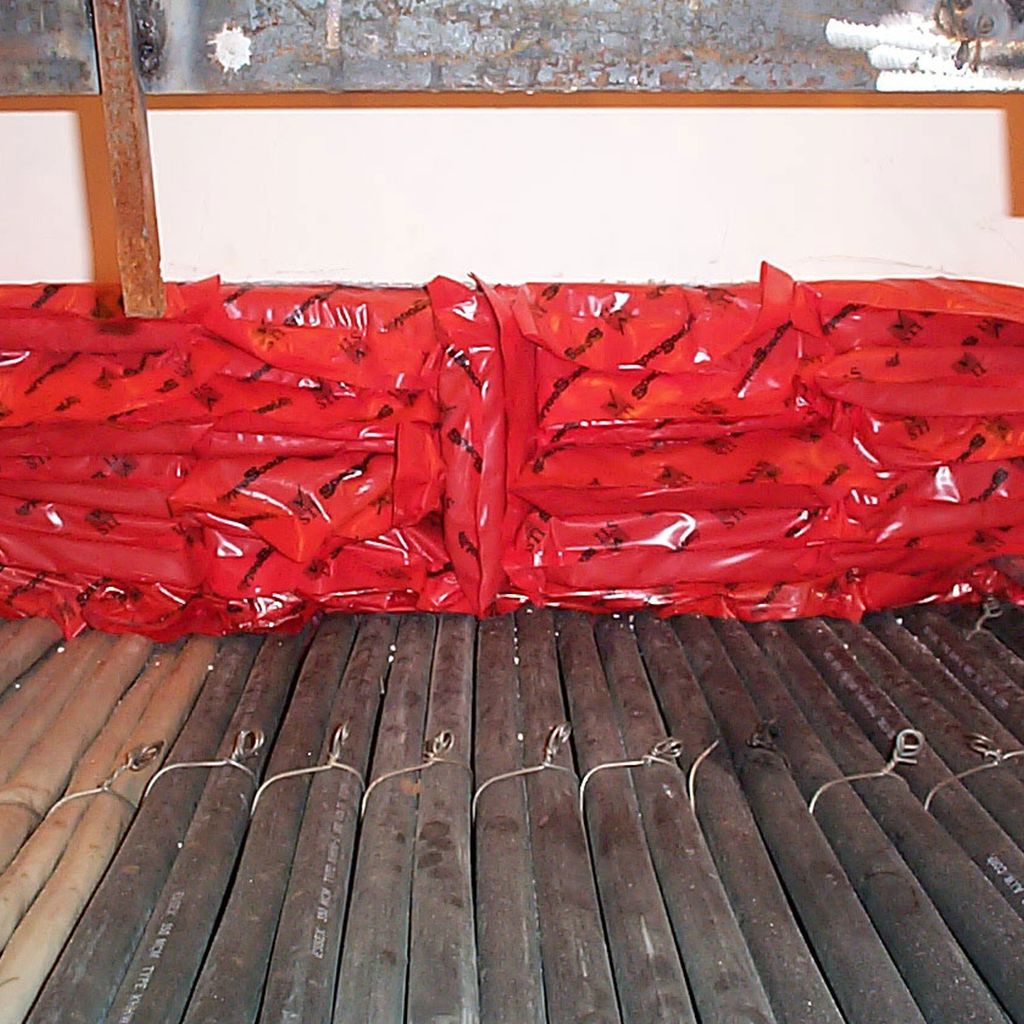

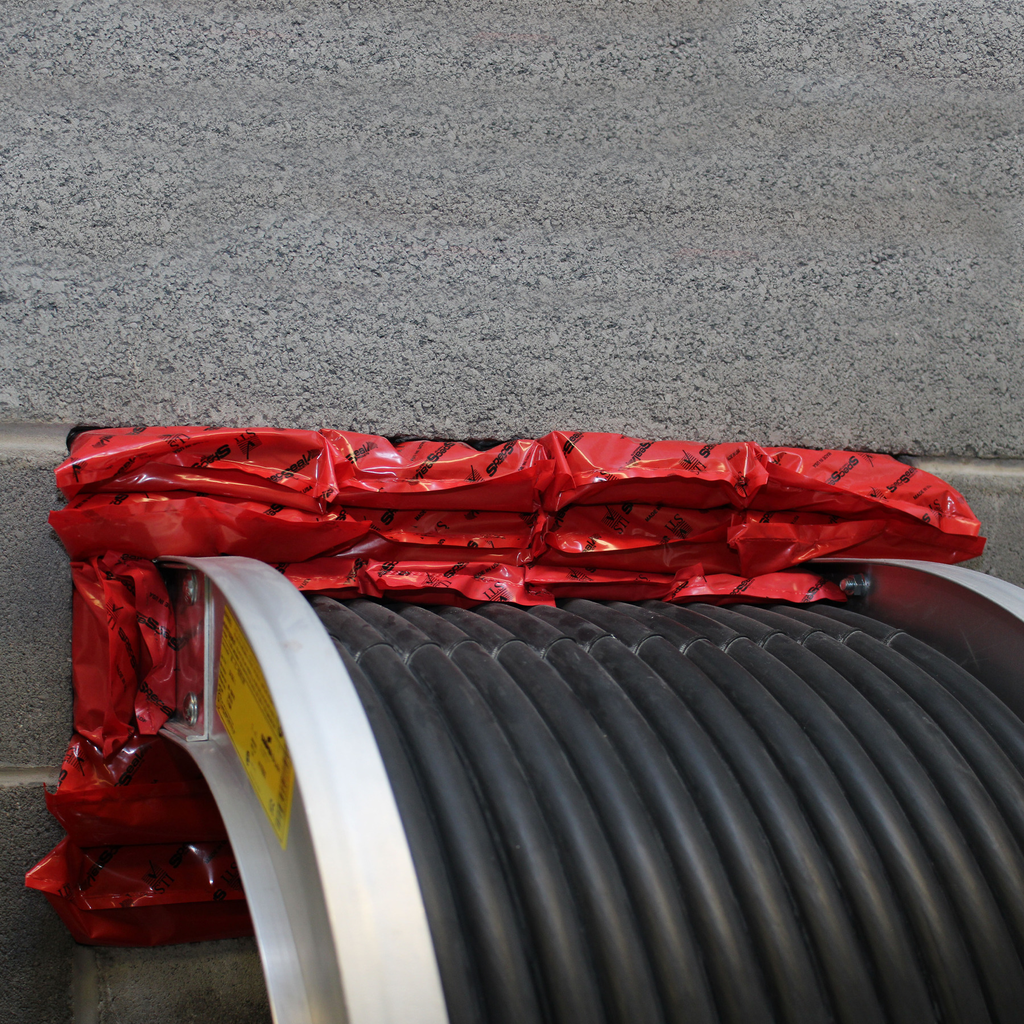

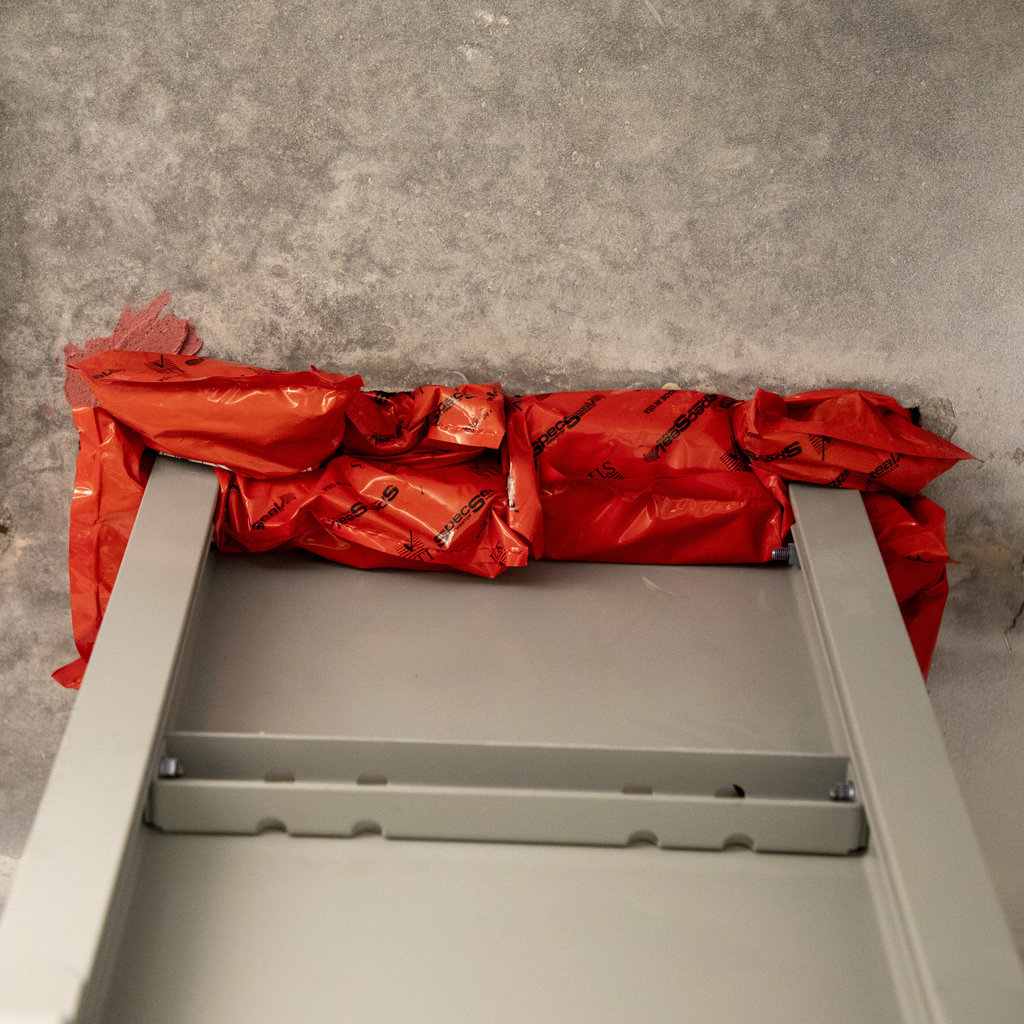

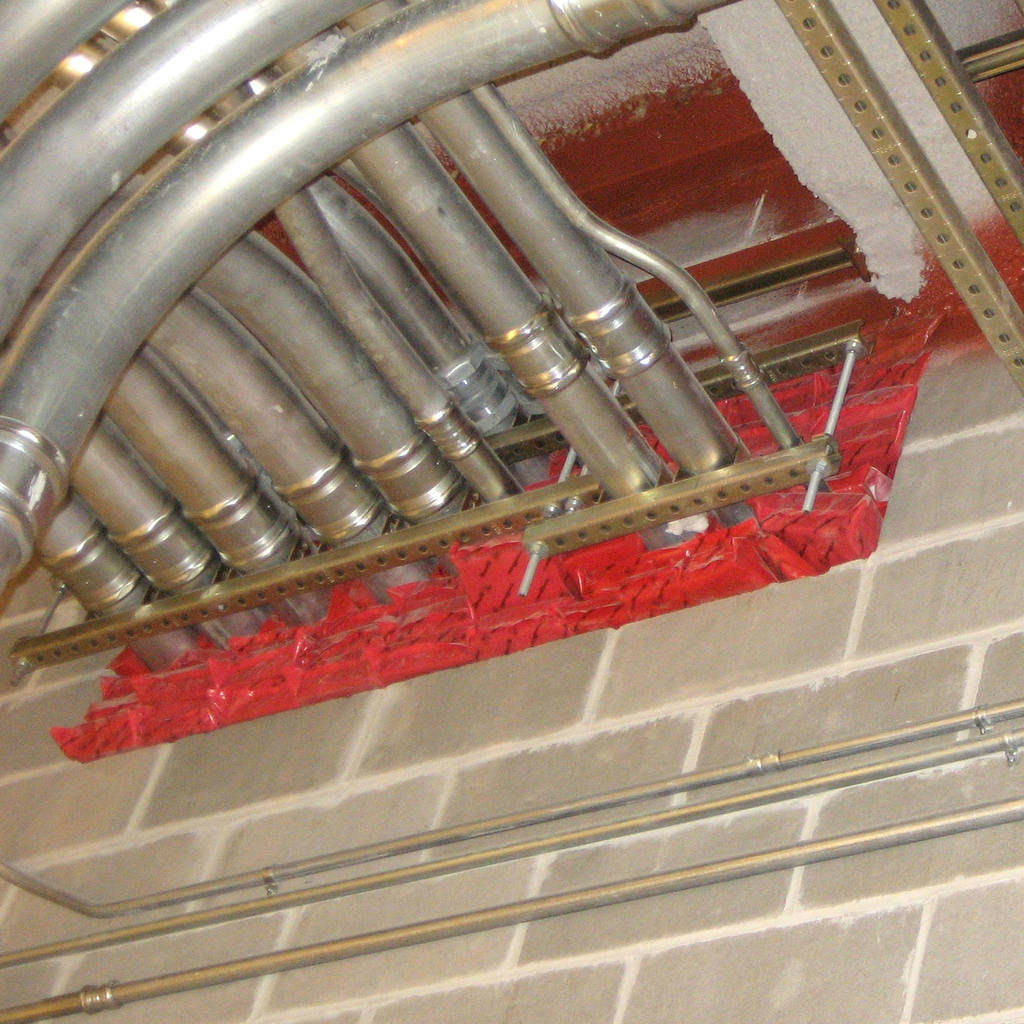

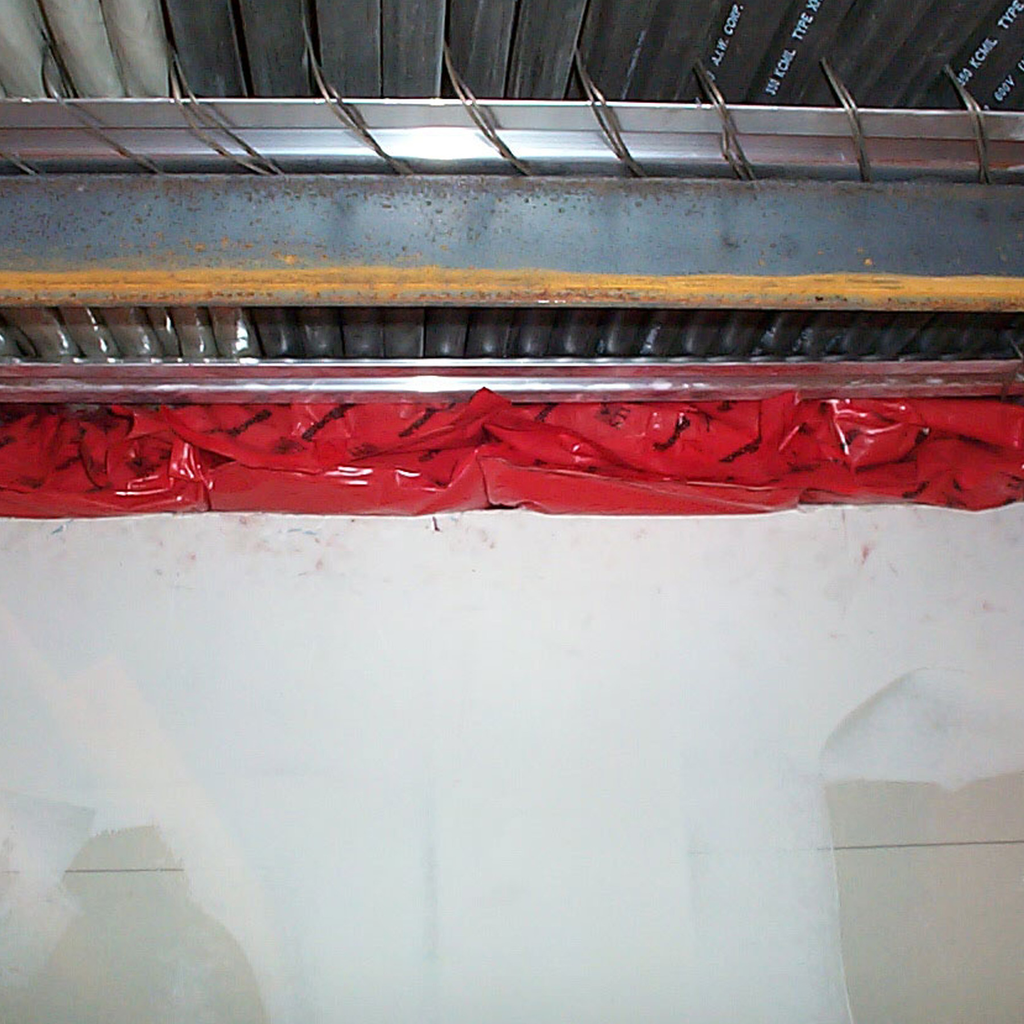

The SSB Intumescent Firestop Pillow is designed for firestopping medium to large openings containing various penetrating items such as pipes, conduits, cables, insulated metal pipes, bus ducts, and HVAC ducts. Manufactured by Specified Technologies, this firestop pillow provides reliable fire containment by easily compressing and conforming around penetrants, suitable for both new and existing conditions. It is an effective solution for electrical distributors, lighting solutions providers, wire and cable installers, and switchgear suppliers seeking compliant firestop components.

Specifications

• Material: Intumescent
• Color: Red
• Dimensions: 3 in. (Width) x 6 in. (Height) x 9 in. (Length)
• Fire Rating: 1 - 3 HR
• Weight: 0.55 lbs
• Composition: Intumescent Pillows
• Container: Poly Bag
• Country of Origin: United States
• Made in USA: Yes
• Manufacturer Part #: SSB36
• UPC: 730573063606

Features

• Easily compresses and conforms around any penetrant for effective sealing
• Suitable for both new installations and existing conditions
• Designed to fill annular space around penetrants, forming a reliable firestop seal
• Can be stacked and installed in groups to accommodate complex through-penetration firestop applications
• Poly bag packaging prevents damage to the intumescent material during handling and installation
• Compatible with wire mesh installation for added security and compliance
• Applicable for firestopping openings containing pipes, conduits, cables, bus ducts, and HVAC ducts
• Manufactured in compliance with UL system requirements and ASTM E3157 installation guidelines
