Features

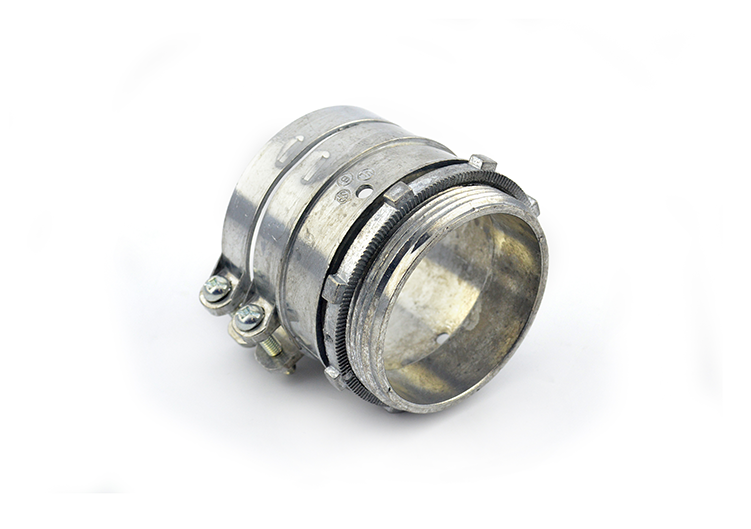

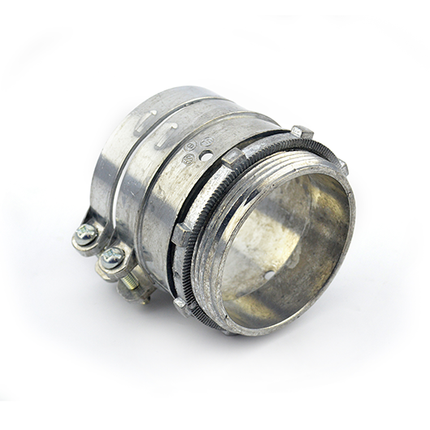

• Quick and Easy - To secure flexible metal conduit, simply insert conduit into the squeeze connector and tighten down a single flex screw
• Sizing - For securing 3" flexible metal conduit to an electrical box or enclosure through a 3" knockout
• Zinc Body - Die cast zinc squeeze connectors have a precise fit and finish with excellent corrosion resistance when used in harsh environments
• Safety Compliance - All Bridgeport squeeze connectors are cULus listed and RoHS compliant

Certifications and Standards

• UL-514B

Specifications

• Country of Origin: United States
• Length: 4.4375 in
• Width: 3 in
• Depth: 1 in
• Weight: 136 lbs
• BPT Trade Size: 3"
• Field Application: Used to connect flexible metal conduit or armored cable to box or enclosure.
• FINISH: Ball burnished, mirror smooth
• MATERIAL: Zinc Die Cast
• NEMA Rating: FB-1
• UL File #: E9391
