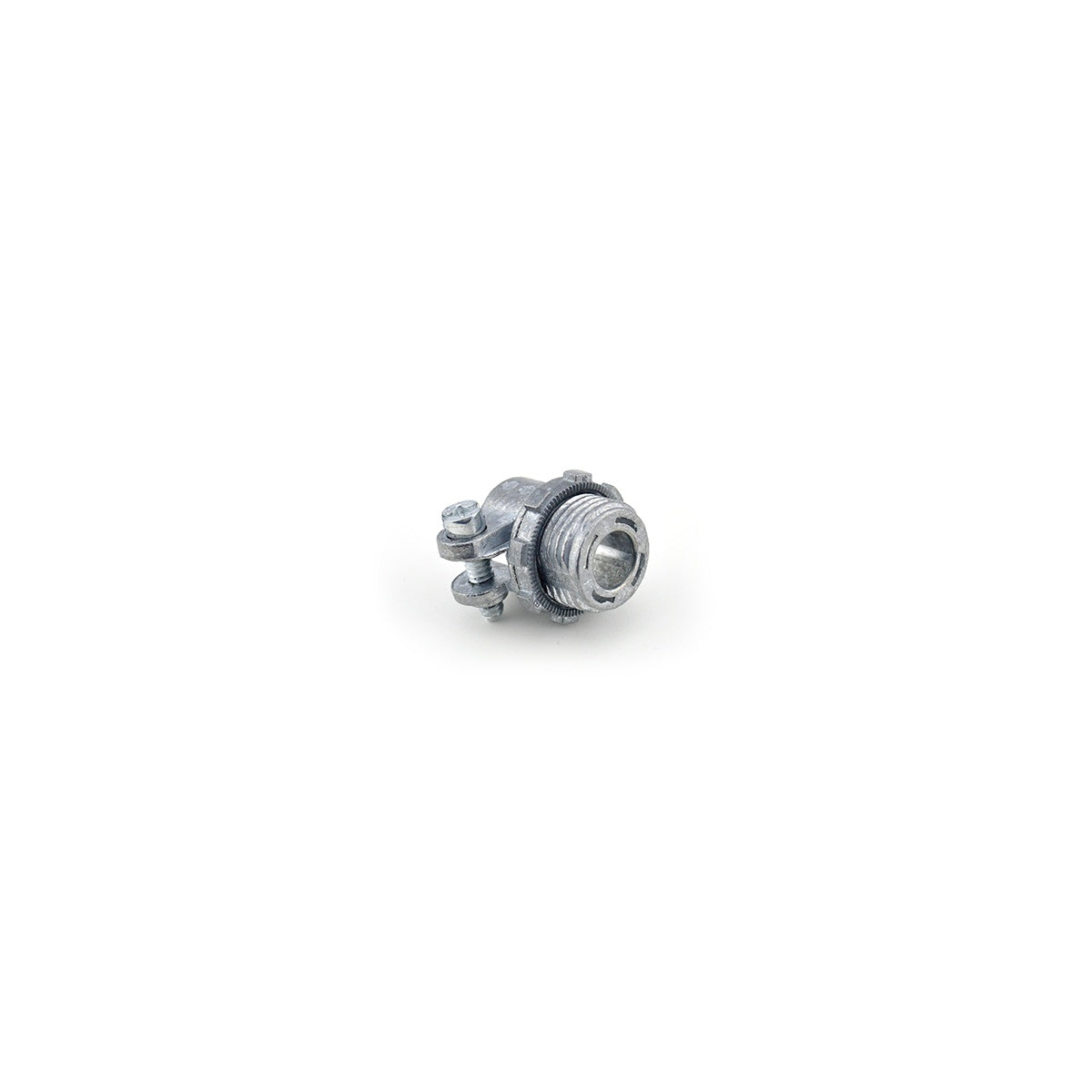

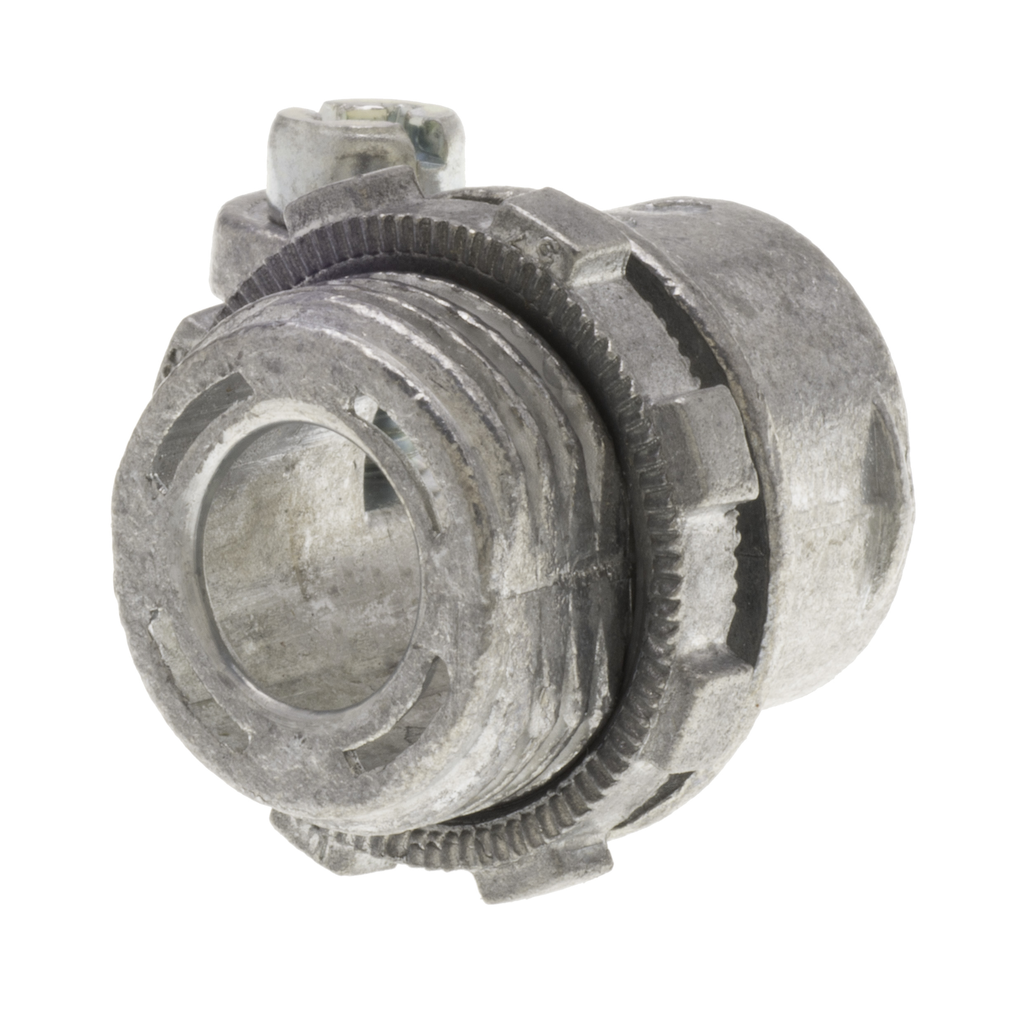

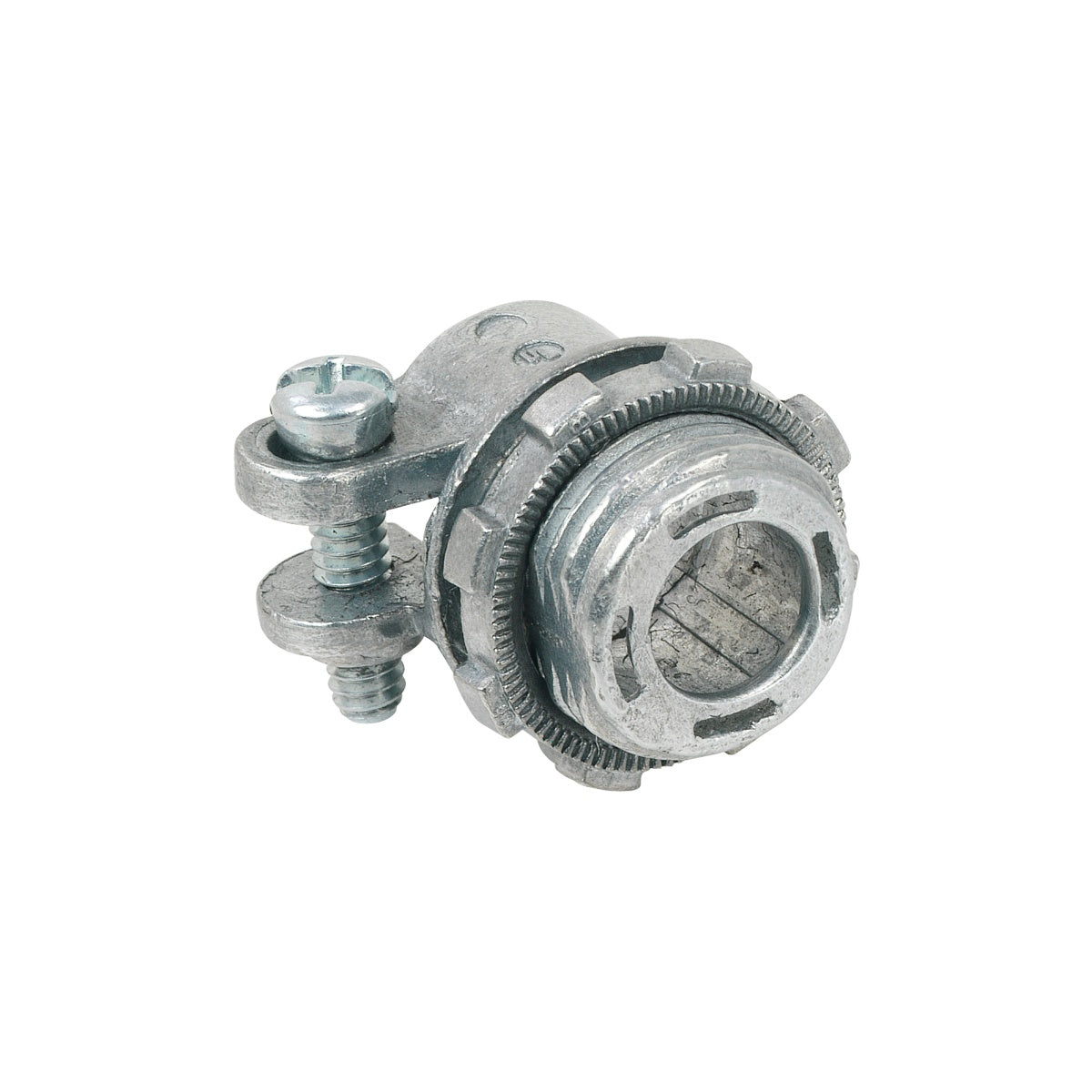

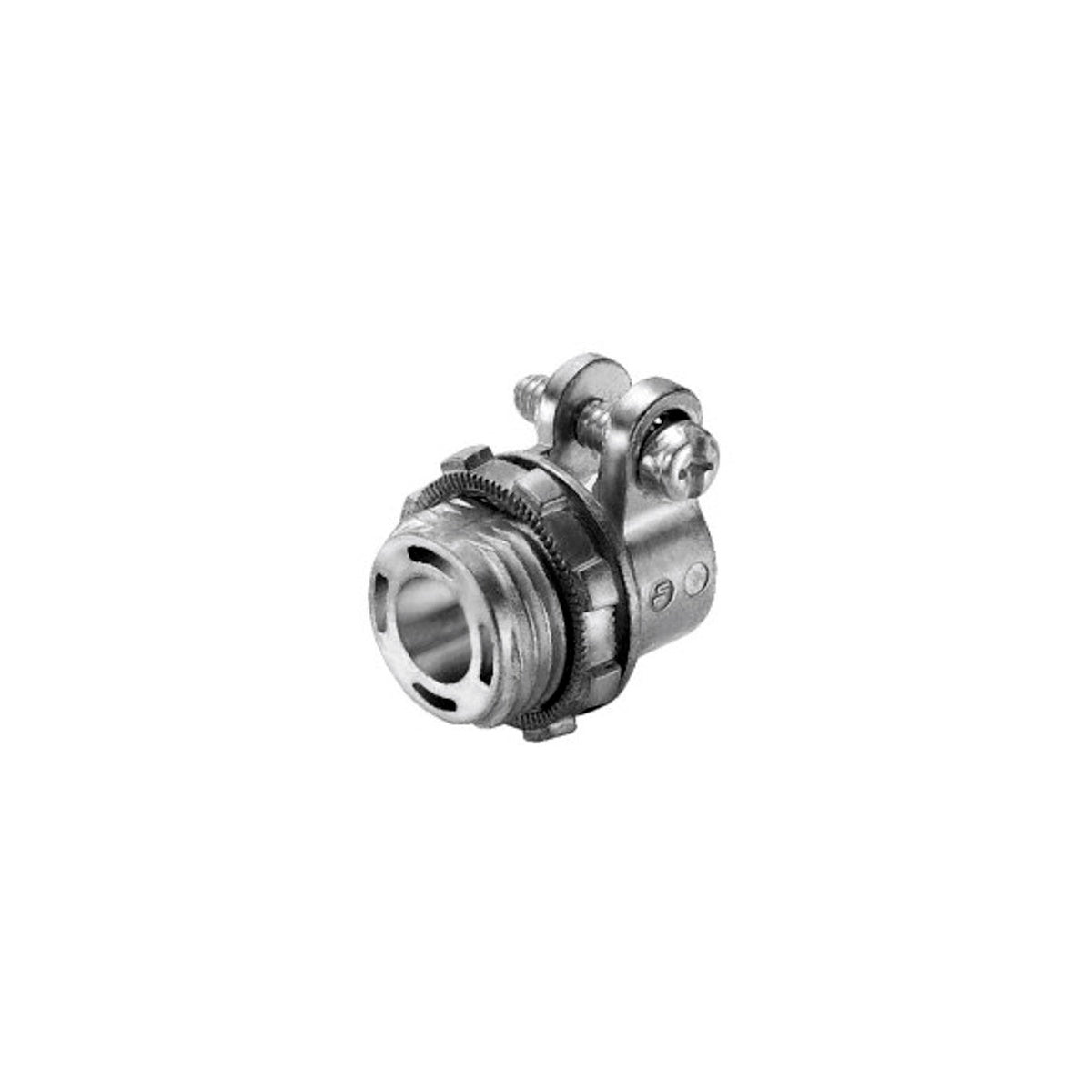

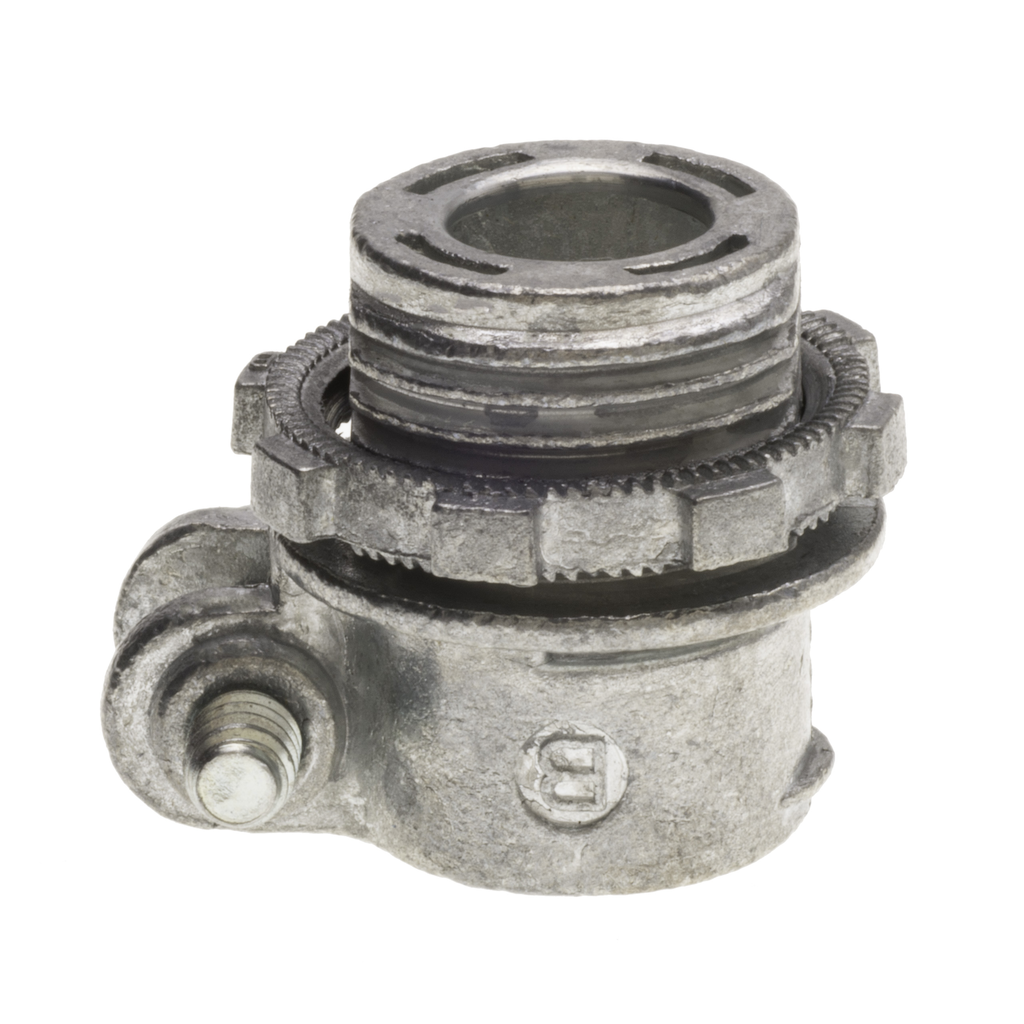

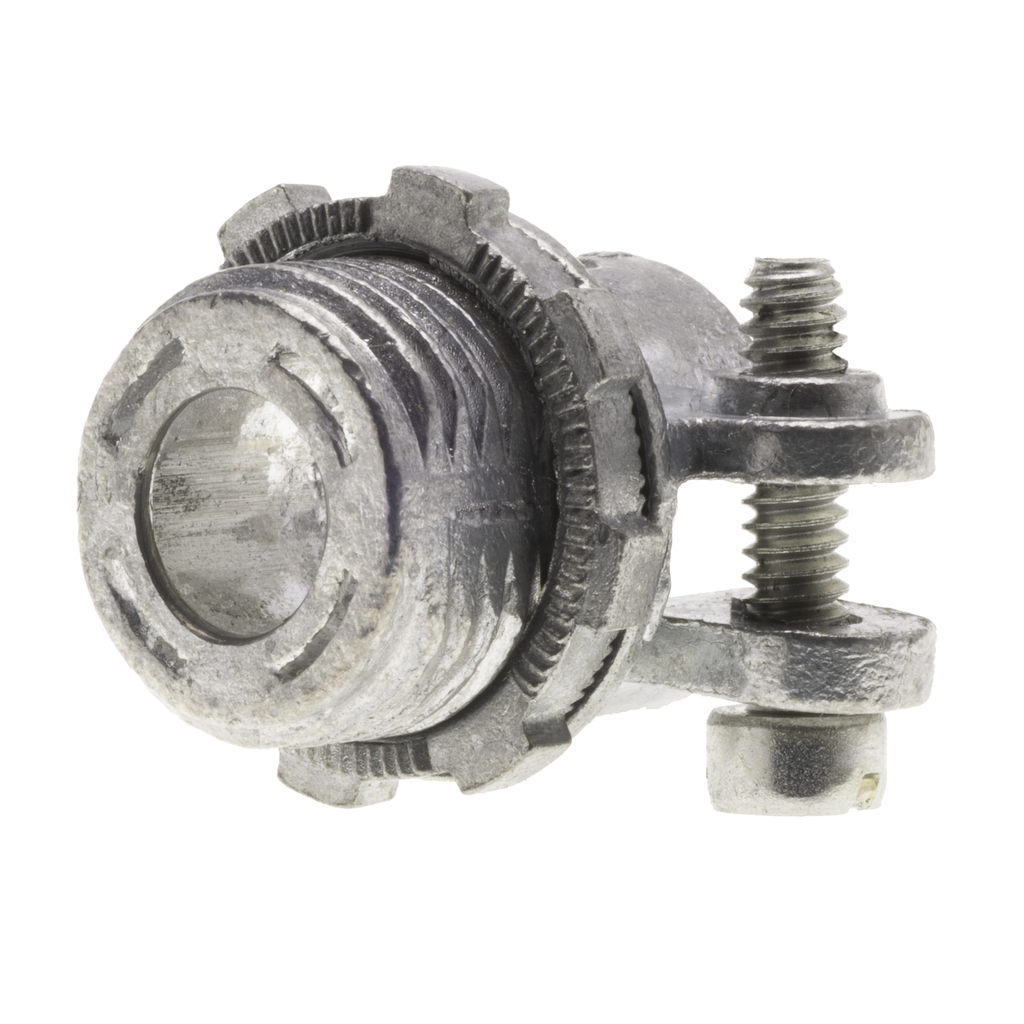

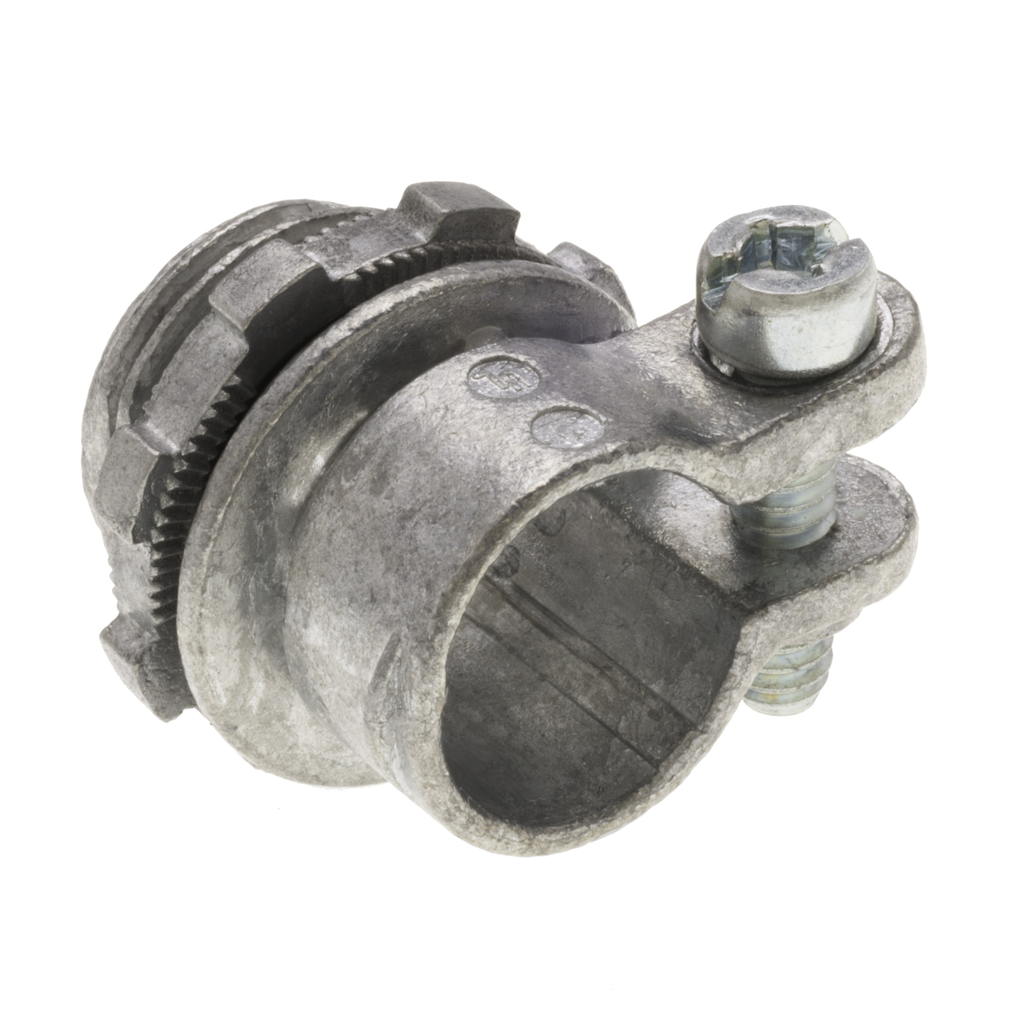

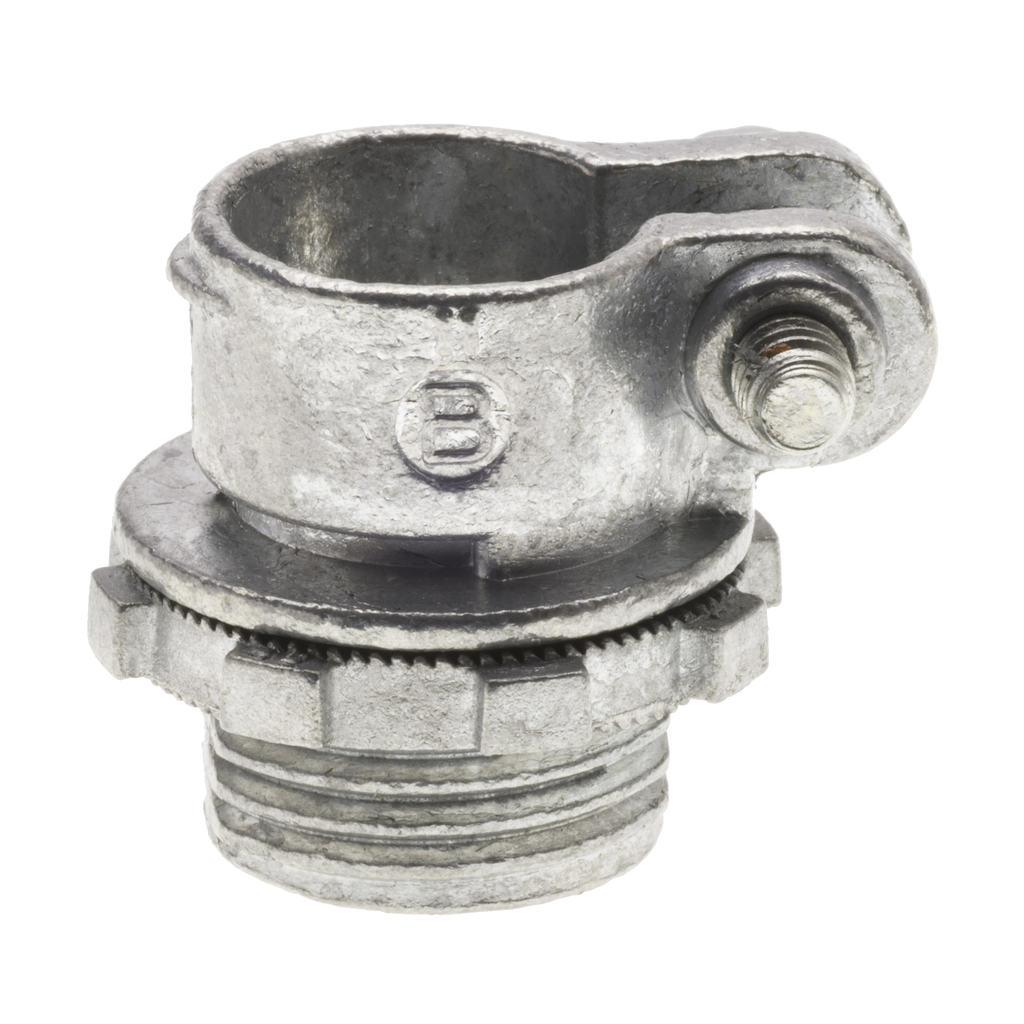

Squeeze Connector 3/8" Die Cast Zinc for Flexible Metal Conduit

The Bridgeport Fittings 403-DC2 Squeeze Connector is designed to securely connect 3/8" flexible metal conduit (FMC) or armored cable to electrical boxes or enclosures. This die cast zinc connector is engineered for electrical distributors and switchgear suppliers requiring reliable conduit fittings with excellent corrosion resistance and a precise ball burnished finish. It is suitable for wire and cable applications involving 12/3 to 10/3 steel or aluminum MC cables with conduit diameters ranging from .56" to .61". Installation involves inserting the conduit into the connector and tightening a single flex screw to secure it, followed by attaching the connector to a 1/2" knockout using the included locknut.

Specifications

• Manufacturer: Bridgeport Fittings
• Manufacturer Part #: 403-DC2
• Material: Zinc Die Cast
• Finish: Ball burnish
• Dimensions: Length 1.1875 in, Width 0.5625 in, Depth 0.44 in
• Conductor Range: 12/3 to 10/3
• Number of Conductors: 1 Cable
• Application: Connects steel or aluminum flexible metal conduit or armored cable to box or enclosure (.56-.61 DIA.) for 12/3 to 10/3 steel or aluminum MC cable
• Product Weight: 0.0690 lbs
• Country of Origin: United States
• Made in USA: Yes

Features

• Die cast zinc construction for durability and corrosion resistance in harsh environments
• Ball burnished finish for a precise, smooth surface
• Single flex screw design for easy and secure conduit attachment
• Includes locknut for secure mounting to 1/2" knockout
• Compatible with steel or aluminum MC cables and flexible metal conduit
• Trade sizes available from 3/8" through 4" for varied applications
