Square Head LED Combo Exit/Emergency Light High Output Red LED White Housing - LED Exit Sign

This combination LED exit sign and emergency lighting unit integrates high output red LED illumination with a white thermoplastic housing in a compact design. It is suited for electrical distributors and lighting solutions providers requiring energy-efficient, code-compliant exit and emergency lighting. The unit features fully automatic operation, long-life LED lamps, and is UL 924 listed for damp locations.

Specifications

• Manufacturer Part #: 73432
• Product Weight: 4.7250 lbs

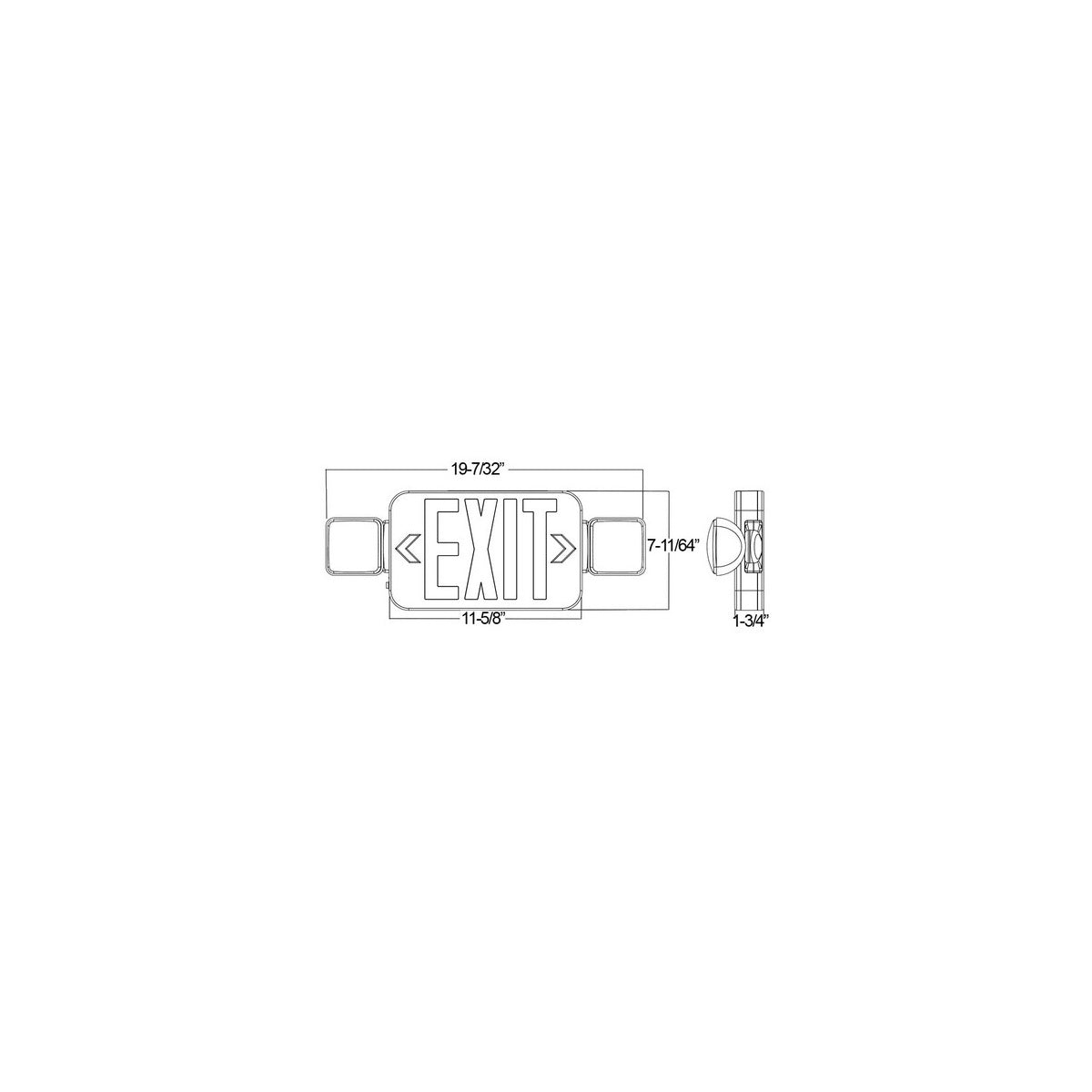

• Dimensions: 19-7/32" (Width) x 7-11/64" (Height) x 1-3/4" (Depth)
• Input Rating Amps: 0.22A @ 120V, 0.10A @ 277V
• Input Rating Watts: 1.8W
• Frequency: 60 Hz
• Voltage Rating: 120/277 VAC
• Flammability Rating: UL 94 V-0
• Battery: 3.6 Volt 1000/1800 mAH Sealed Ni-Cad Rechargeable Maintenance-Free
• Battery Run Time: Minimum 90 minutes
• Certification: UL 924 Listed
• RoHS Compliant

Features

• Combination LED energy-saving exit sign and LED emergency lighting unit in one compact design
• Long-life, energy-saving LED lamps with high output red letters
• Fully self-contained with fully automatic operation and push-to-test switch
• Automatic low voltage disconnect (LVD) to protect battery life
• Charge rate/power on LED indicator light
• Energy consumption less than 4 watts for red letters
• Injection-molded, UL 94 V-0 flame retardant, high impact thermoplastic housing
• Fully adjustable, glare-free LED lamps with heads that rotate 180¬∞+ for maximum field flexibility
• Universal mounting canopy for top or back J-box installation with two snap-fit face plates
• Field replaceable chevron directional indicators
• Integral wiring channels to facilitate installation
• Environmentally coated, solid state charger
• Damp location rated
• 5 year warranty

Downloads & Links

• Spec Sheet
