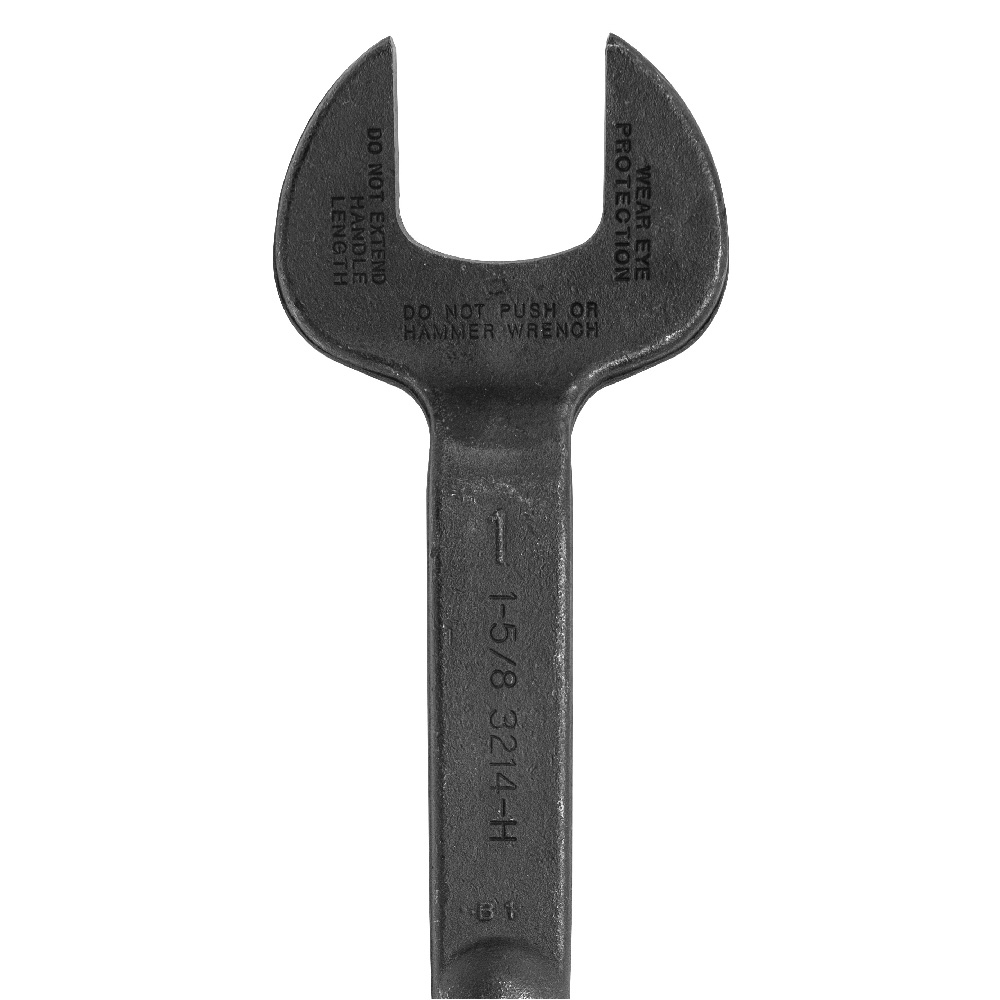

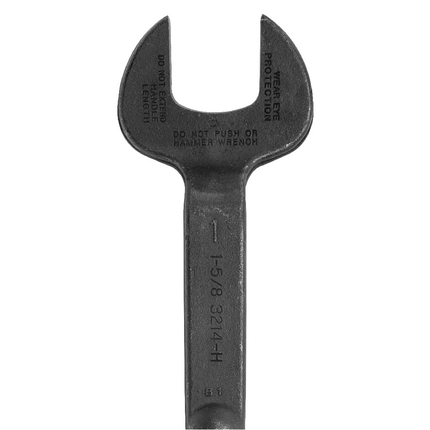

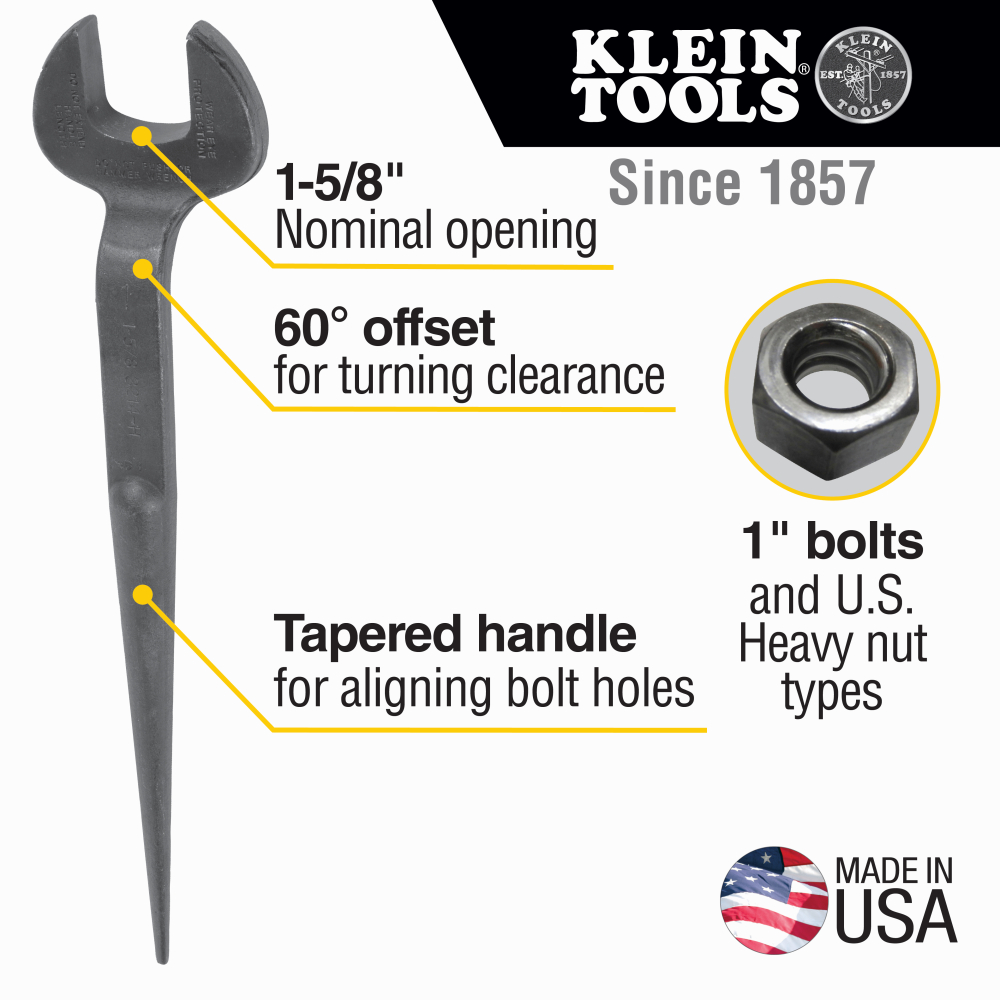

Spud Wrench, 1-5/8-Inch Nominal Opening for Heavy Nut – Heavy Duty Construction Wrench

The Klein Tools Spud Wrench with a 1-5/8-inch nominal opening is engineered for heavy-duty applications involving 1-inch bolts and U.S. heavy nuts. Forged from select alloy steel and finished with black oxide for rust prevention, this wrench is designed to withstand high leverage and heavy loads typical in construction and steel erection work. Its continuous tapered handle facilitates easy alignment of bolt holes, making it an essential tool for electrical distributors, lighting solutions installers, wire and cable professionals, and switchgear suppliers involved in structural assembly and maintenance.

Specifications

• Type: Spud Wrench
• Application: Connecting Steel Members
• Special Features: Extra Heavy-Duty Head for Maximum Strength

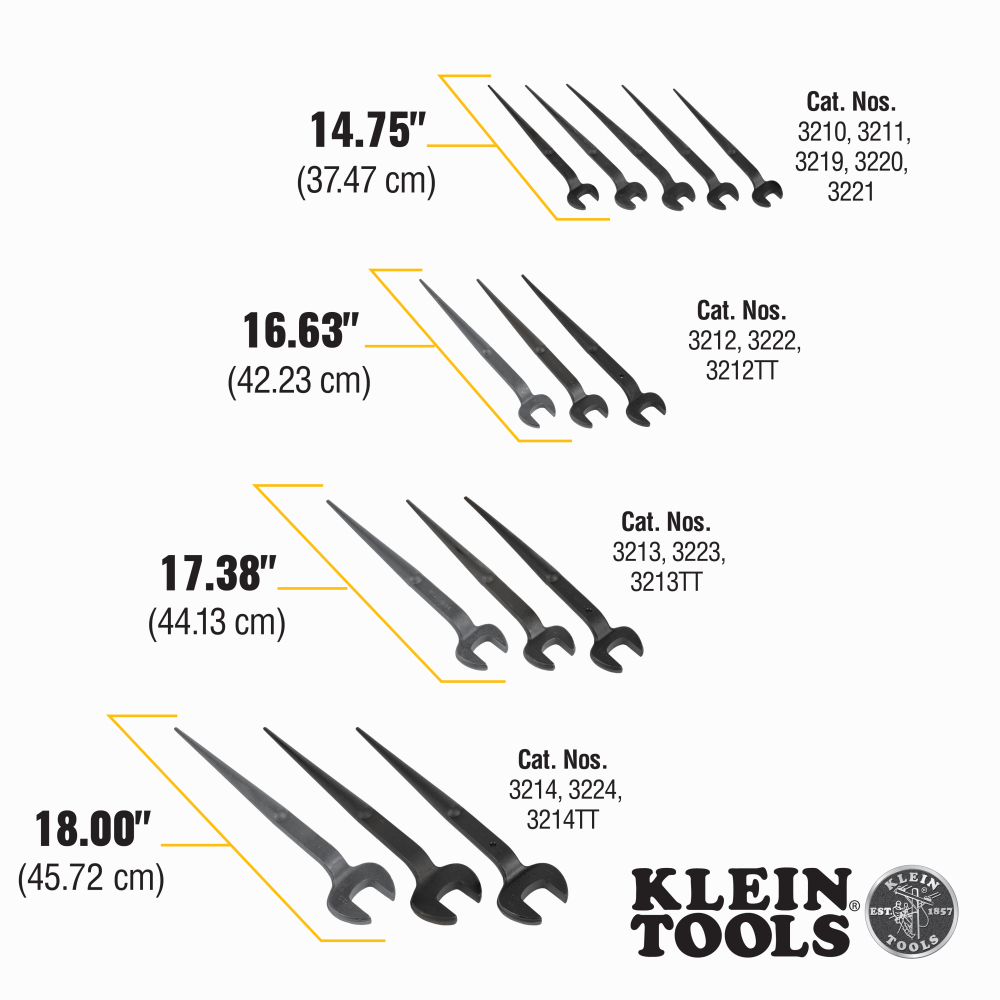

• Overall Length: 18" (45.7 cm)
• Overall Height: 1" (2.54 cm)
• Overall Width: 3.625" (9.1 cm)
• Material: Alloy Steel
• Finish: Black Oxide with Rust Preventative
• Nut Type: U.S. Heavy
• Heavy Nut Size: 1" (2.5 cm)
• Nominal Opening: 1-5/8" (4.1 cm)
• Head Width: 3.625" (9.2 cm)
• Taper Diameter: 1-1/8" to 1/4" (2.9 to 0.6 cm)
• Offset Angle: 60°
• Weight: 3.4 lb (1.5 kg)

Features

• Forged from select alloy steel for enhanced durability and strength
• Extra-duty head area designed to handle high-leverage and heavy loads

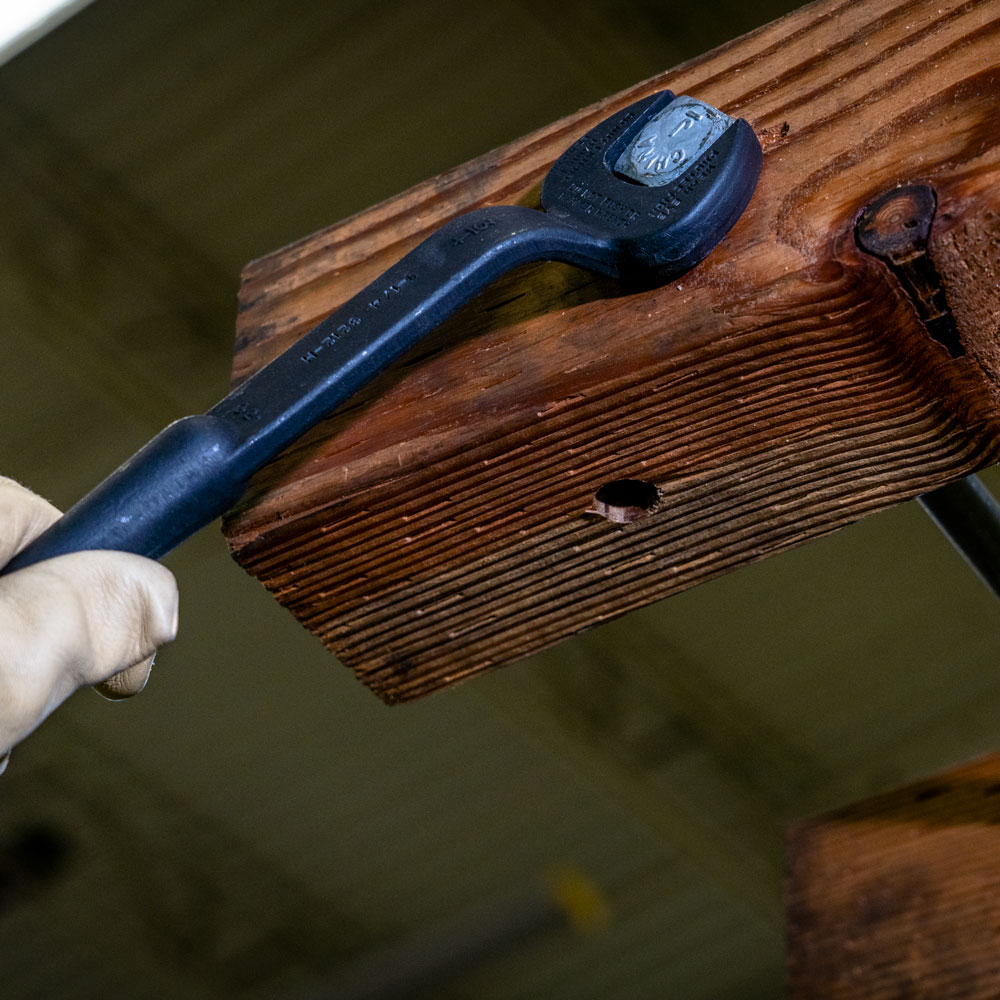

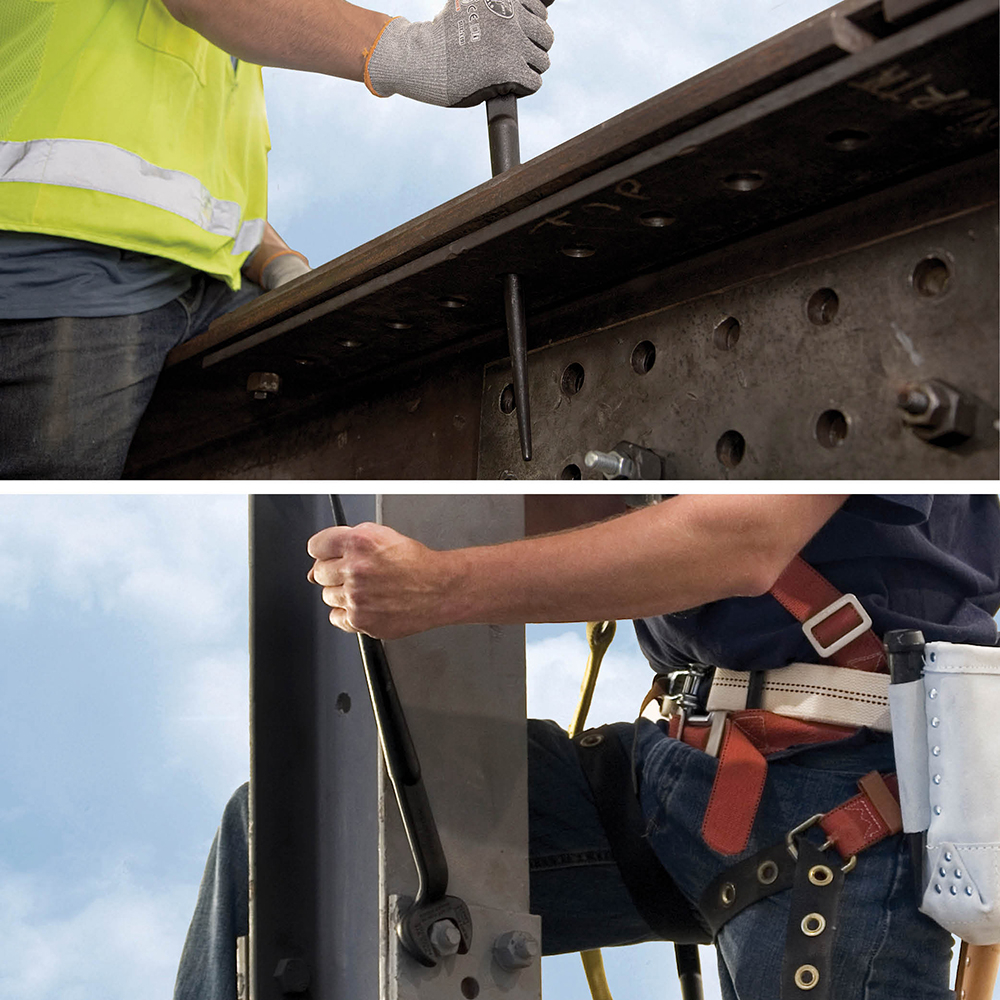

• Continuous taper on handle eases alignment of bolt holes during assembly
• Black oxide finish provides rust prevention for extended tool life
• Optimized for use with 1-inch bolts and U.S. heavy utility nuts
• Offset angle of 60° for improved access in tight spaces

Downloads and Links

• Klein Tools Catalog No. 3214 Spec Sheet (PDF)
