Features

• Forged in the USA from select US alloy steel to withstand high-leverage and heavy loads
• Extra heavy-duty head area gives maximum strength and durability

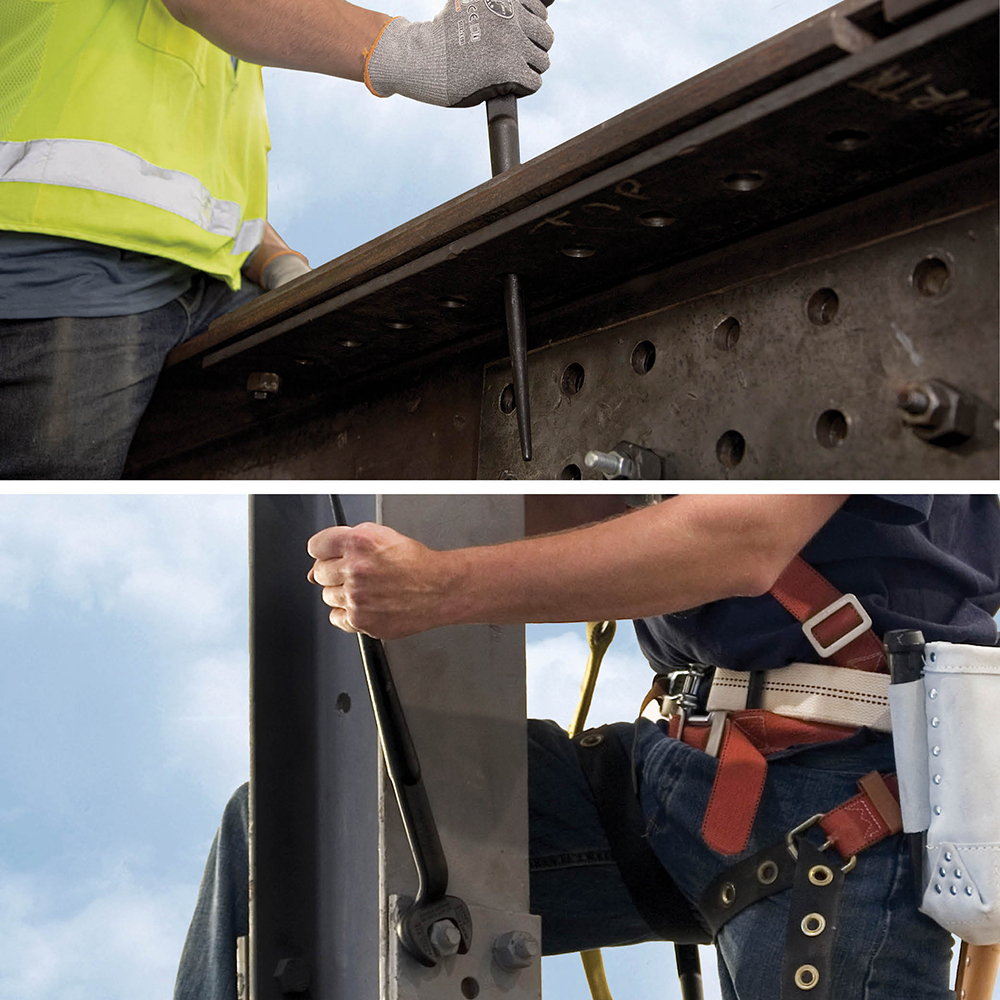

• Continuous taper of handle makes lining-up bolt holes easy and works on a range of bolt and/or hole sizes without binding
• Extra-large hub area works on larger diameter holes better than other wrenches

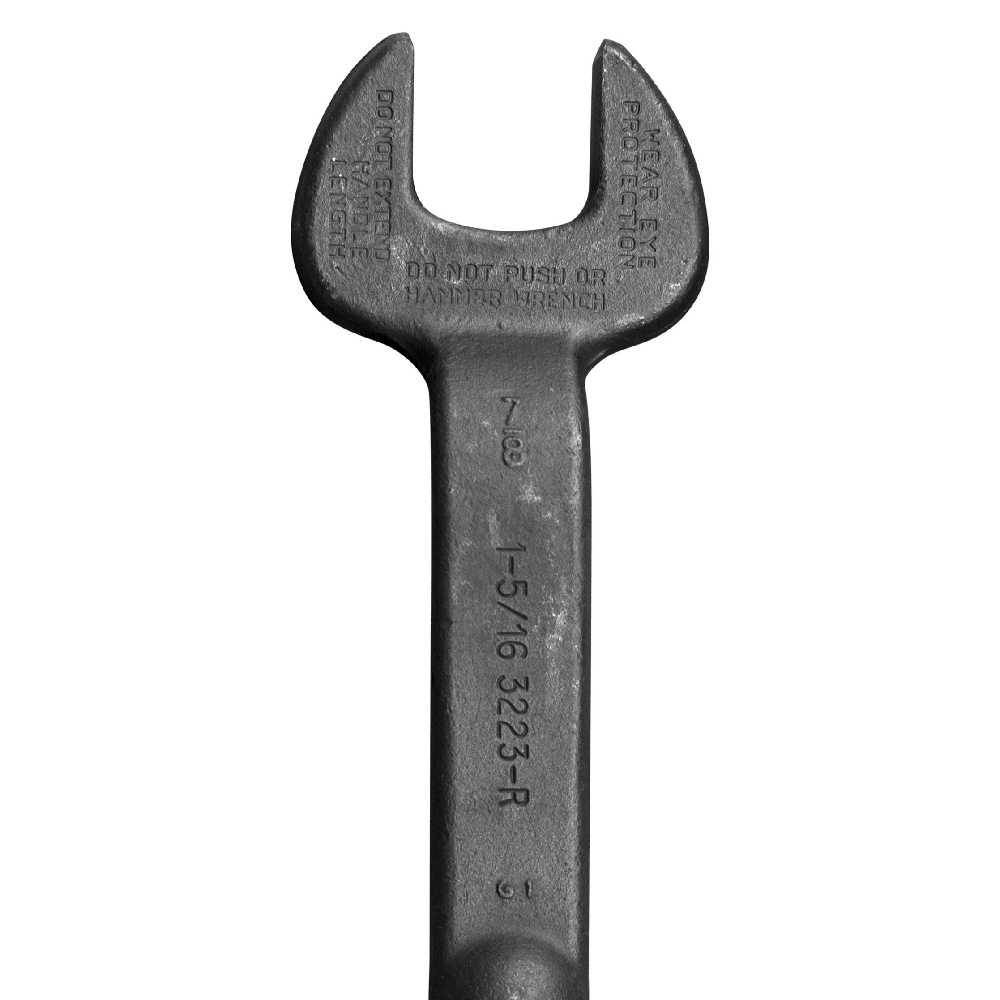

• Catalog number, bolt size and nominal opening size are stamped on every wrench for easy identification
• American Bridge design
• Made in USA

Warnings

• Always wear approved eye protection.
• Do NOT push or hammer wrench.
• Do NOT extend handle length.

Specifications

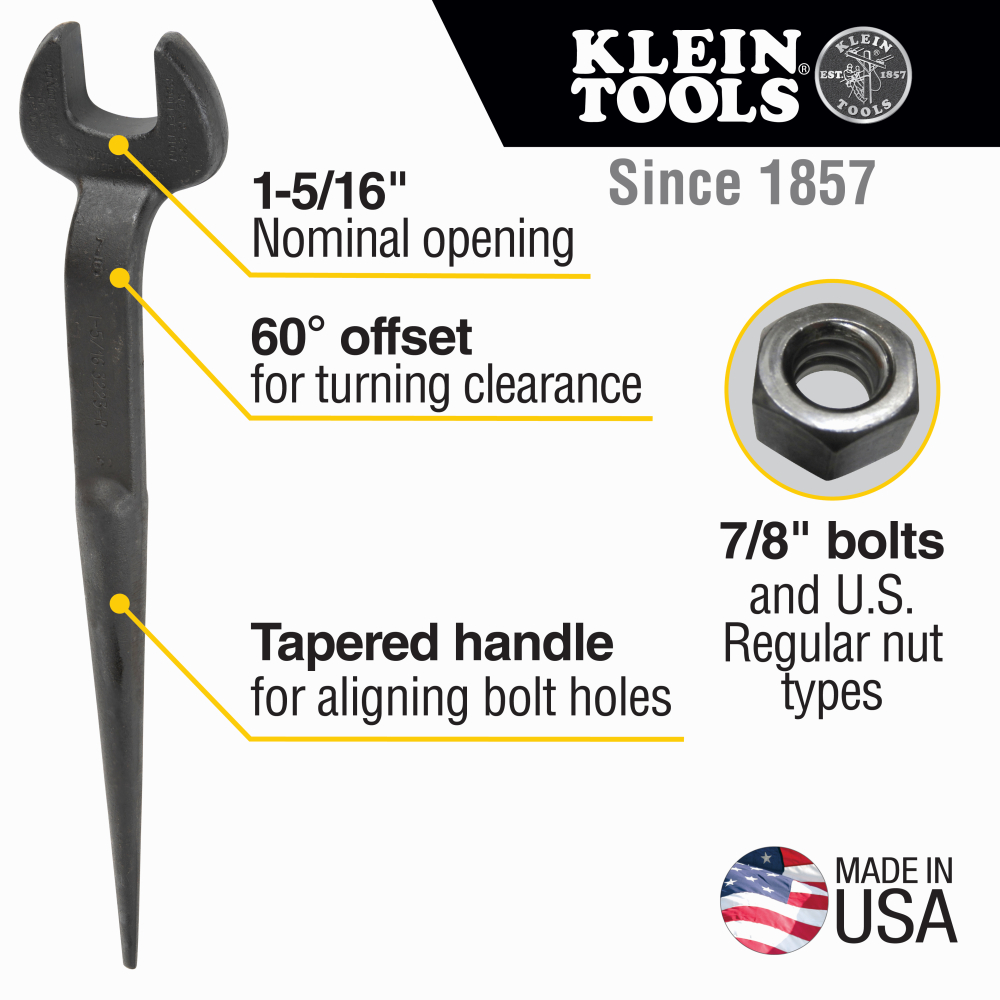

• Taper Diameter: 1-1/8" to 9/32" (2.9 to 0.7 cm)

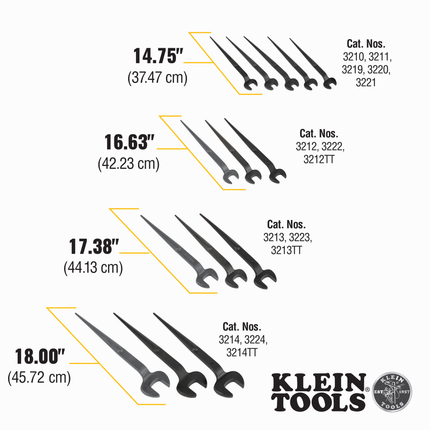

• Overall Length: 17.375" (44.1 cm)
• Offset Angle: 60°
• Head Width: 3" (7.6 cm)
• Type: Spud Wrench
• Overall Width: 3" (7.6 cm)
• Application: Connecting Steel Members
• Overall Height: 1" (2.54 cm)
• Nominal Opening: 1-5/16" (3.3 cm)
• Nut Type: U.S. Regular
• Material: Alloy Steel
• Finish: Black Oxide with a Rust Preventative
• Regular Nut Size: 7/8" (2.2 cm)
• Square Nut Size: 7/8" (2.2 cm)
• Height: 1.0000 in
• Width: 3.0000 in
• Depth: 17.3750 in
• Weight: 2.8700 lbs
