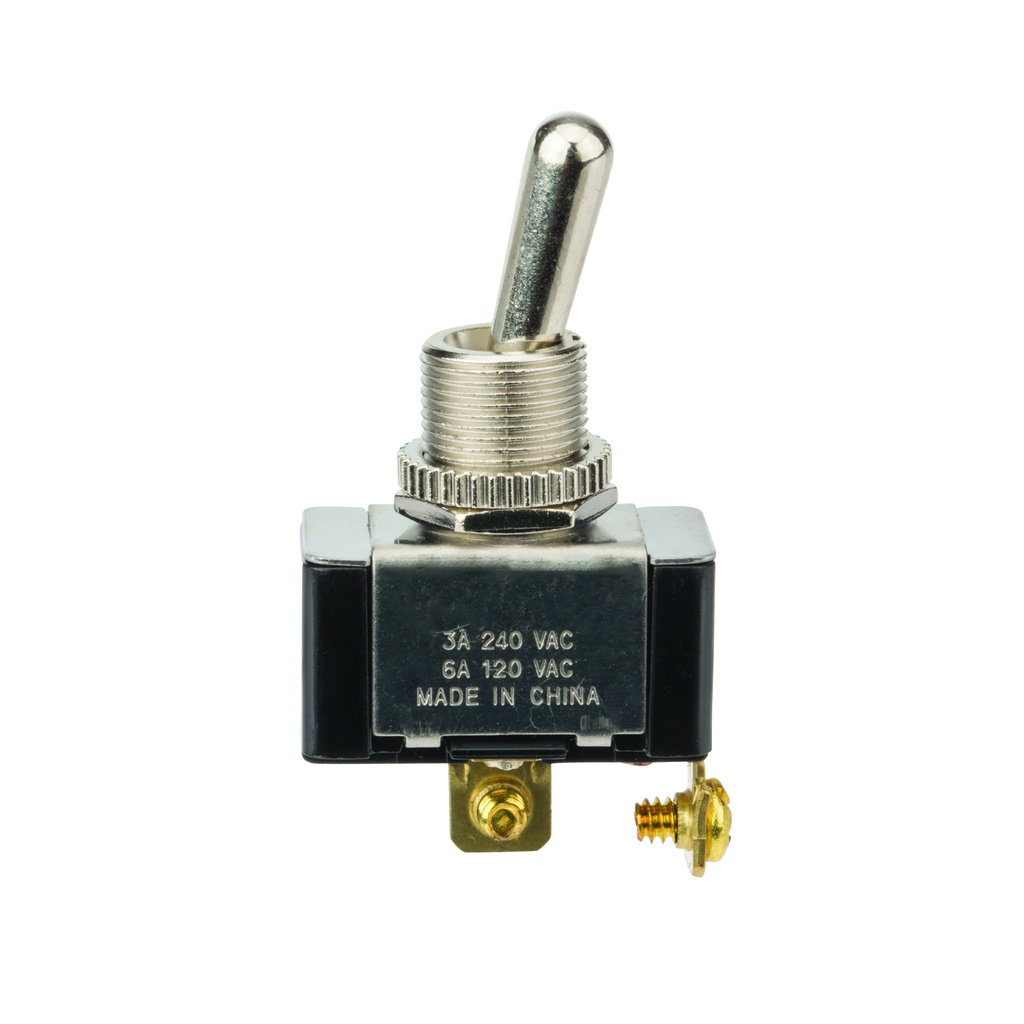

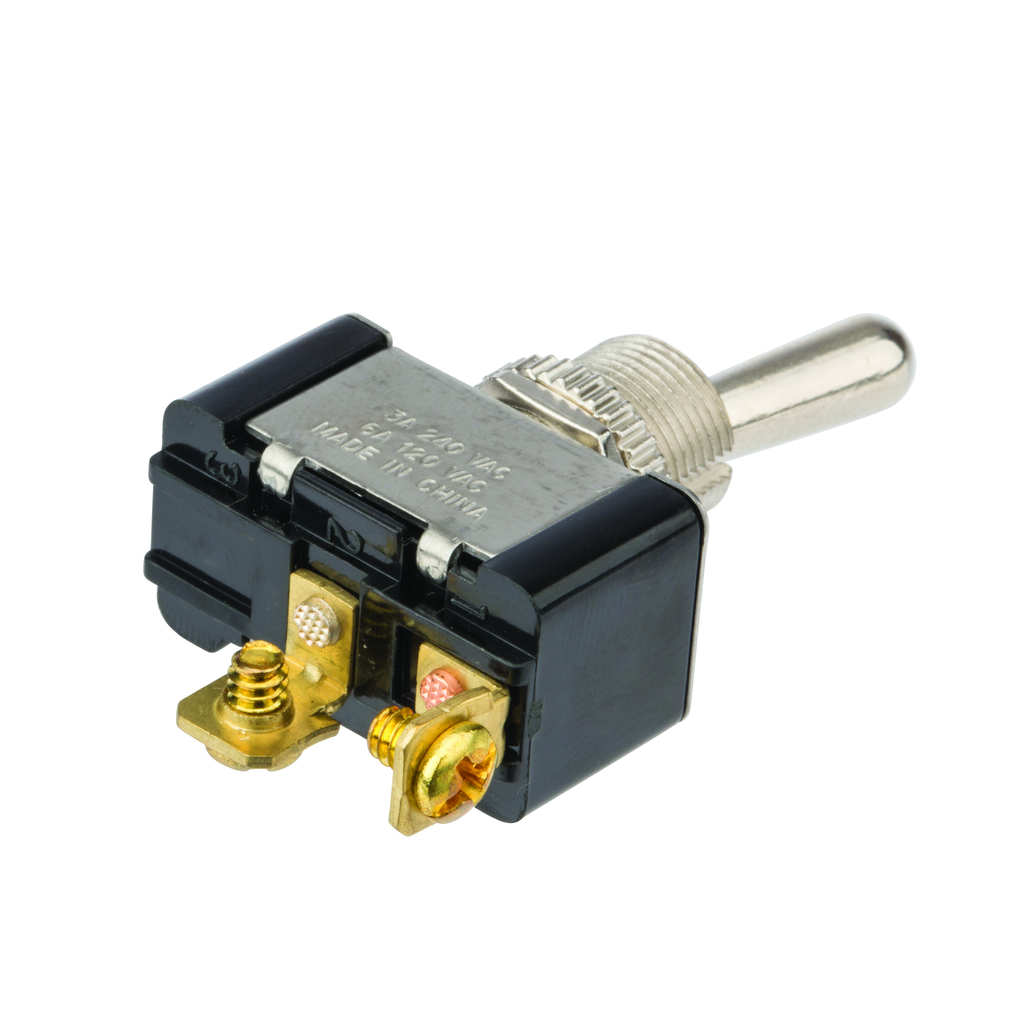

SPST 6 Amp Toggle Switch with Bat Handle On-Off Pull

This SPST toggle switch is designed for motor-equipment control applications, providing reliable on-off switching functionality. Manufactured by NSI Industries, it features a brass and nickel construction with a bat-shaped handle for easy operation. Suitable for electrical distributors and lighting solutions requiring durable wire and cable switching components or switchgear supplier needs.

Specifications

• Contact Configuration: SPST
• Amperage Rating: 6 Amp (125 VAC) - 3 Amp (250 VAC)
• Material: Brass, Nickel
• Mounting: Snap Mount
• Dimensions (L x W x H): 1.134 in x 0.634 in x 0.465 in
• Product Weight: 0.0460 lbs
• Manufacturer: NSI Industries
• Manufacturer Part #: 78110TS
• Country of Origin: Taiwan
• Application: Motor-Equipment Control

Features

• Single Pole Single Throw (SPST) configuration with maintained contact
• Bat-shaped toggle handle for secure on-off pull operation
• Rated for 6 amps at 125 VAC and 3 amps at 250 VAC
• Durable brass and nickel actuator for corrosion resistance
• Snap mount installation for ease of assembly

Downloads & Links

• Spec Sheet
