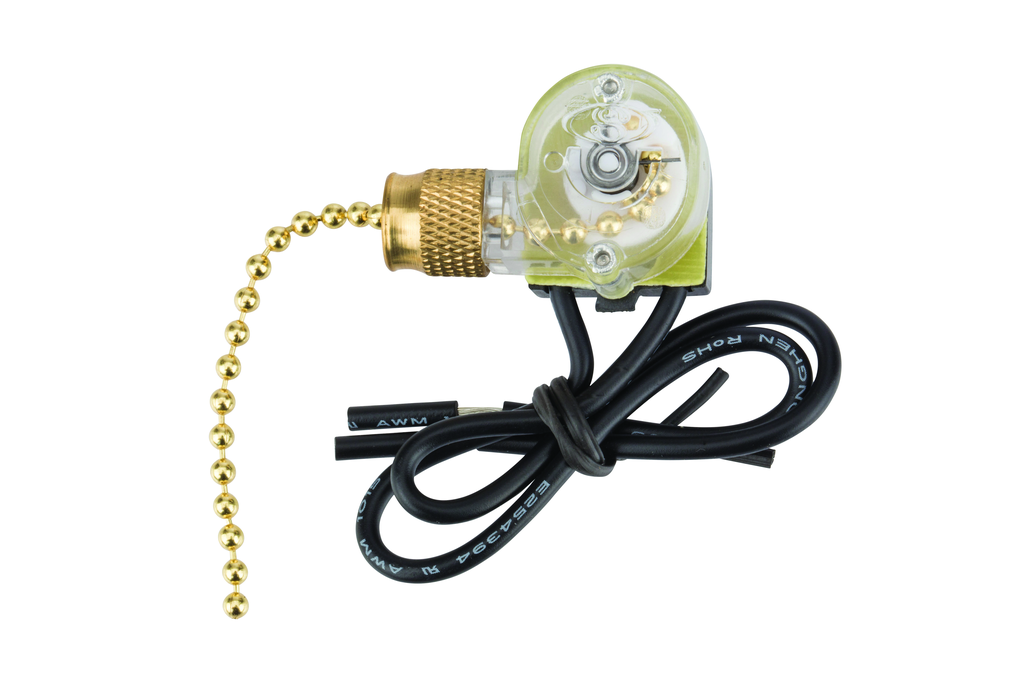

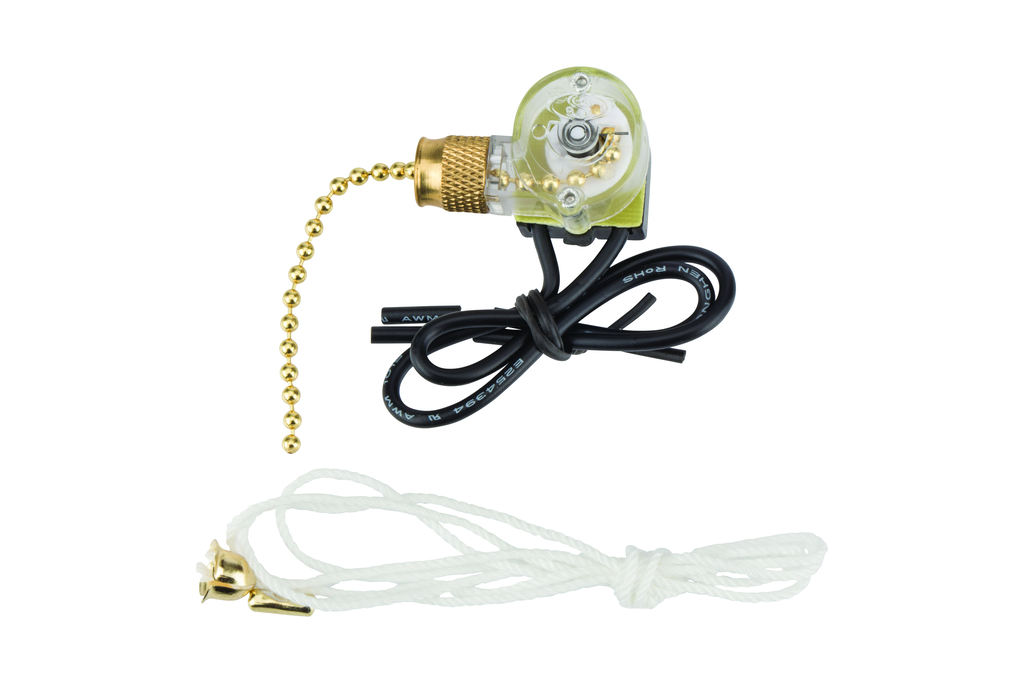

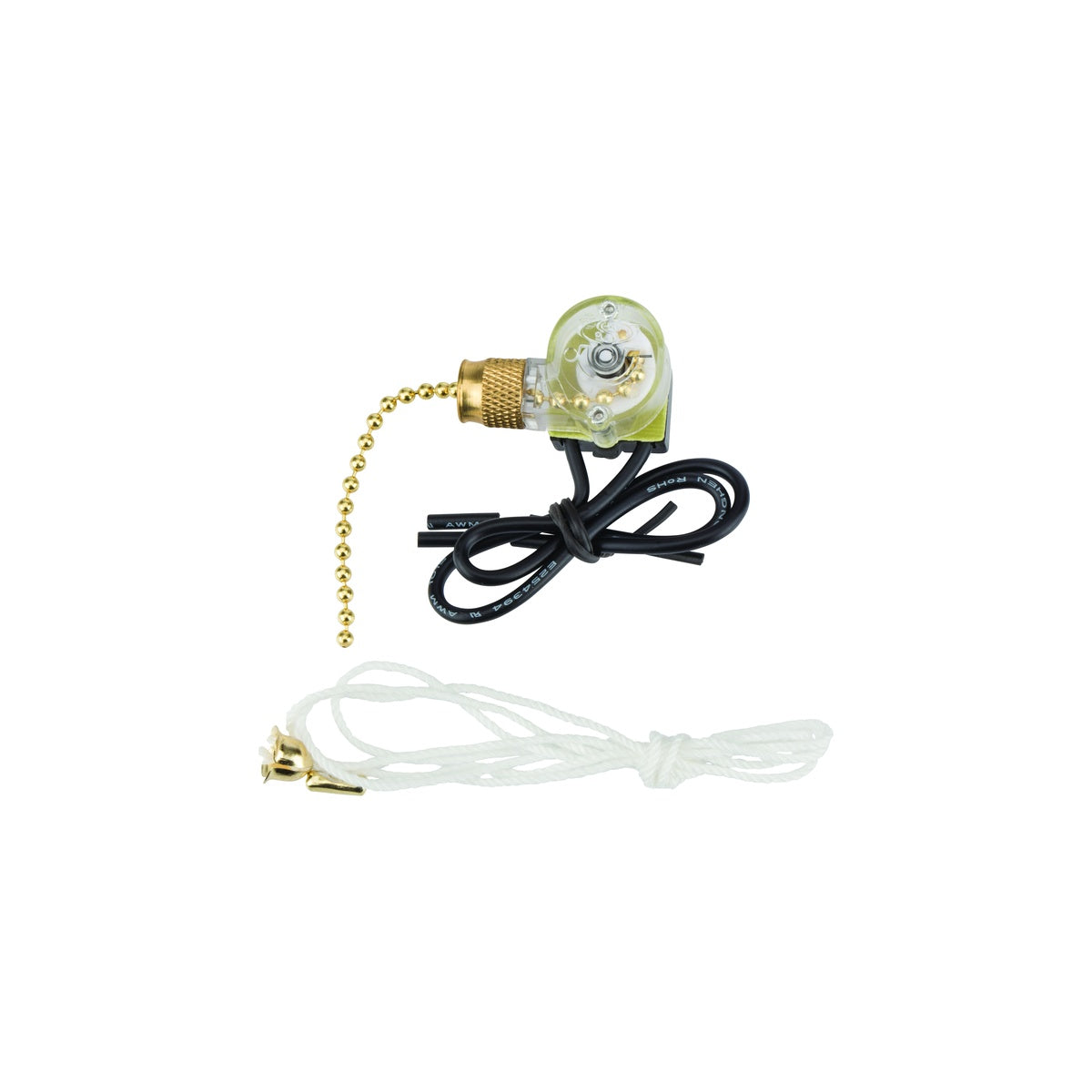

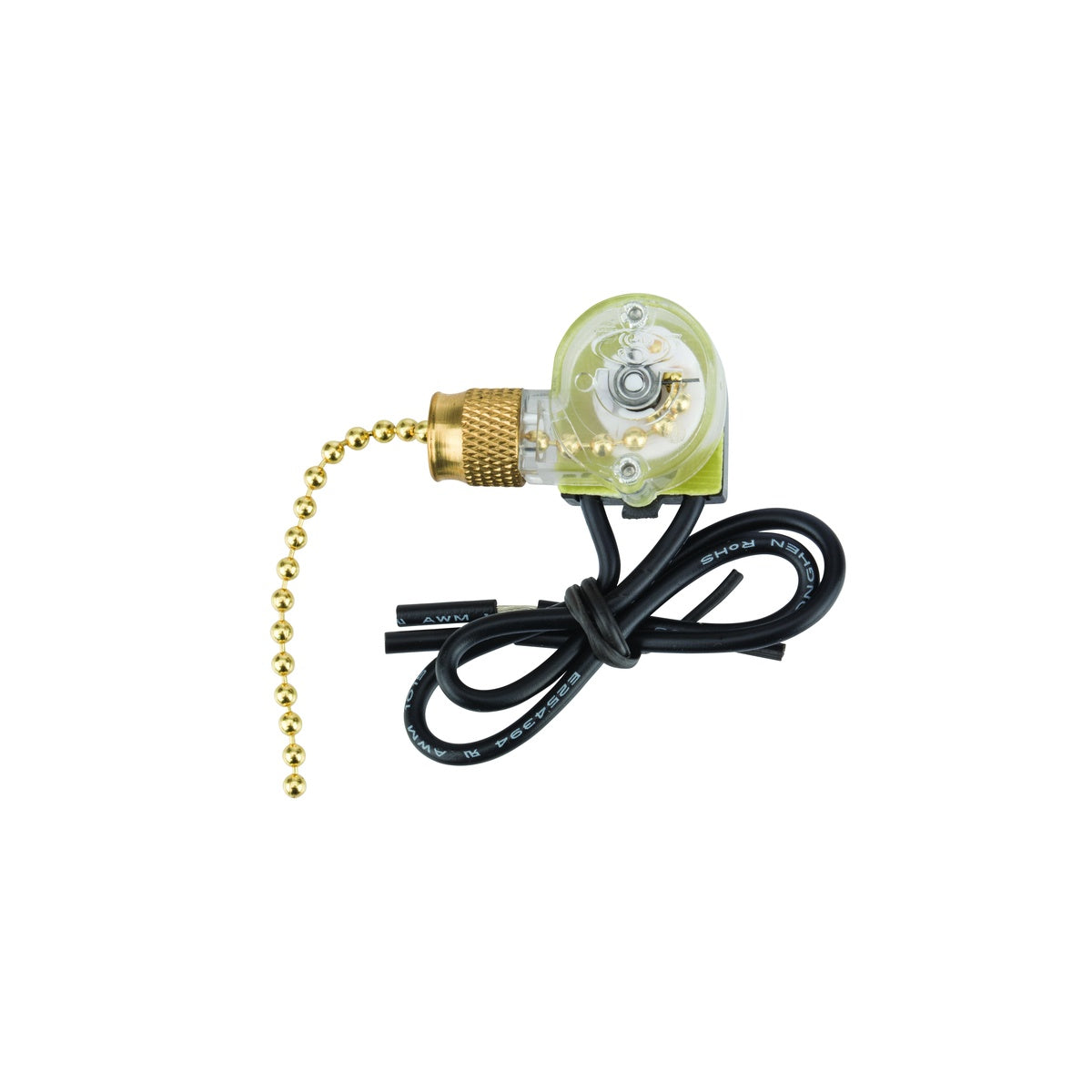

SPST 6 Amp Brass Pull Chain With Cord
SKU: #303556
Part: #75101CW
UPC: 662381751010
SPST 6 Amp Brass Pull Chain With Cord
SKU: #303556
Part: #75101CW
UPC: 662381751010
Description
SPST 6 Amp Brass Pull Chain With Cord - Electrical Switch
This SPST (Single Pole Single Throw) 6 Amp brass pull chain switch with cord is designed for motor-equipment control applications. It is suitable for electrical distributors and lighting solutions requiring reliable on-off control. The switch features a pull chain actuator and is constructed with thermoplastic material for durability. It is mounted via screw mount and supports wire leads for connection, making it a practical component for wire and cable assemblies or switchgear supplier inventories.
Specifications
- Contact Configuration: SPST
- Contact Rating: 6 AMP (125 VAC) - 3 AMP (250 VAC)
- Material: Thermoplastic
- Actuator: Pull Chain
- Mounting: Screw Mount
- Color: Brass Pull Chain
- Dimensions (in): Length 1.25, Height 0.781, Width 0.594
- Number of Poles: 1
- Manufacturer: NSI Industries
- Manufacturer Part #: 75101CW
- Country of Origin: Taiwan
- Product Weight: 0.05 lbs
- Application: Motor-Equipment Control
Features
- Single Pole, Single Throw On-Off switch
- 6 Amp rating at 125 VAC and 3 Amp at 250 VAC
- Brass pull chain with ball chain cord for easy operation
- Durable thermoplastic housing
- Screw mount installation for secure attachment
- Wire leads for straightforward electrical connection
