Morris Products

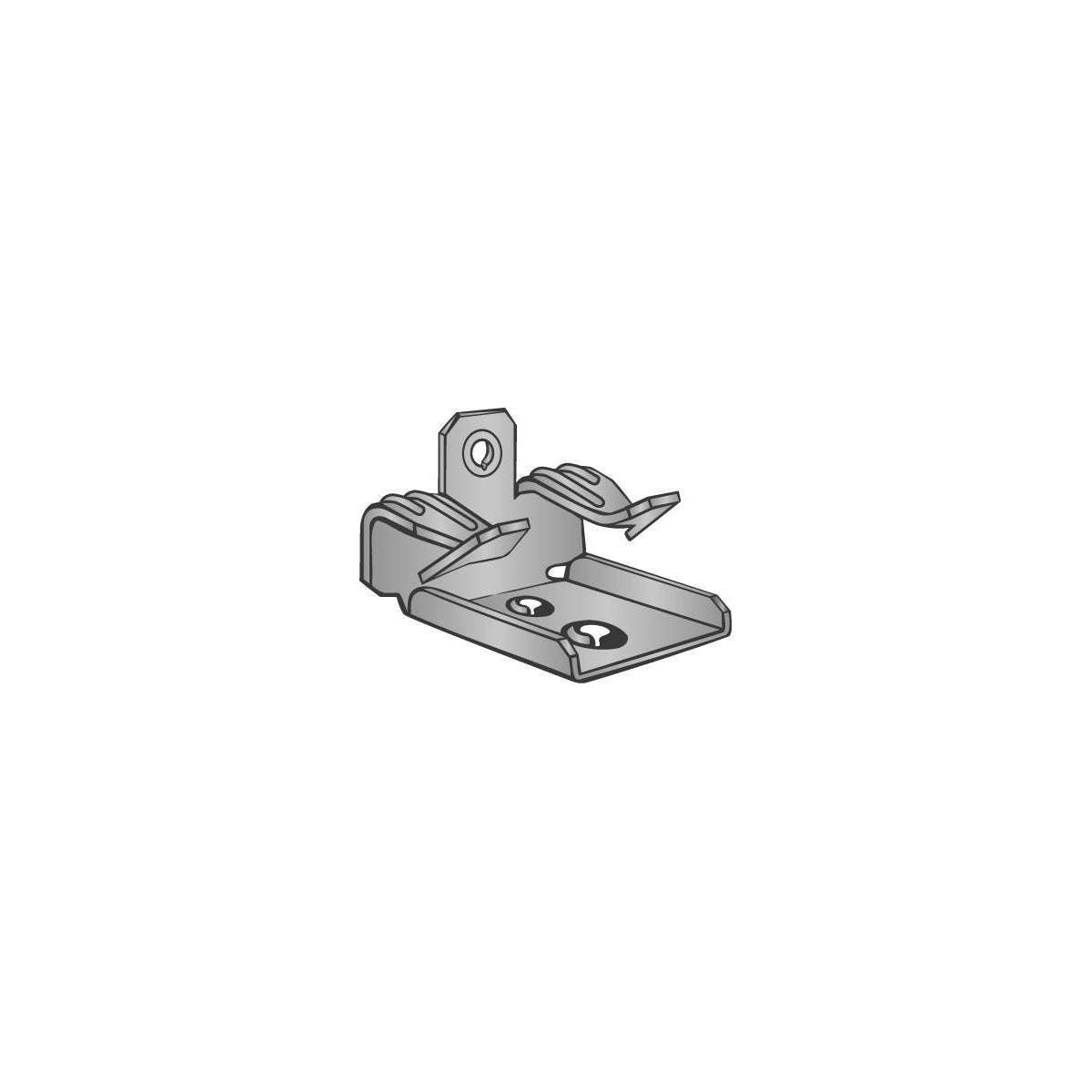

Spring Steel Beam Clamps - Hammer On 1/8”-1/4” Flange
SKU: #272292
Part: #18012
UPC: 601986180122
Morris Products
Spring Steel Beam Clamps - Hammer On 1/8”-1/4” Flange
SKU: #272292
Part: #18012
UPC: 601986180122
Description
Spring Steel Beam Clamps - Hammer On 1/8”-1/4” Flange | Beam Clamp for Electrical Support

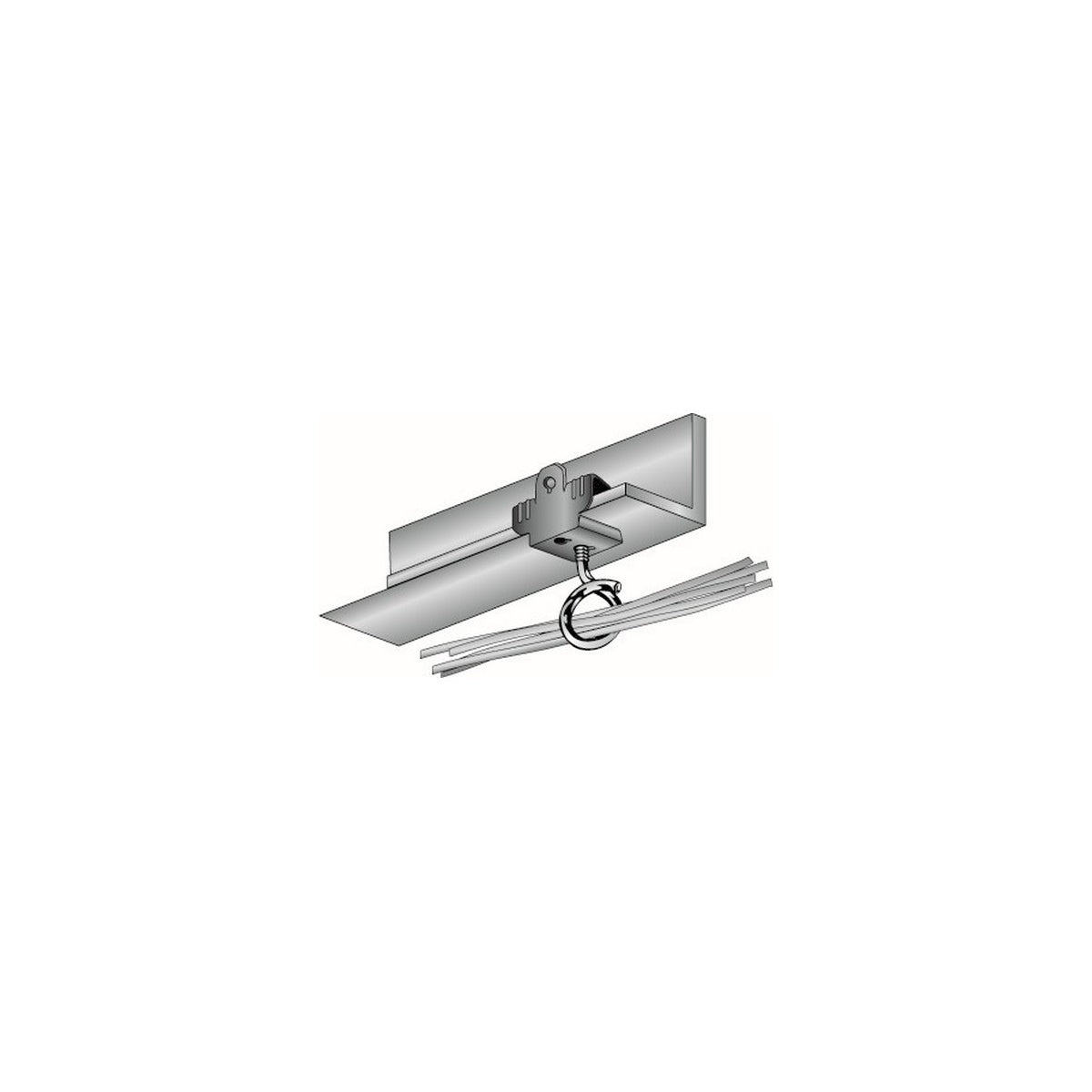

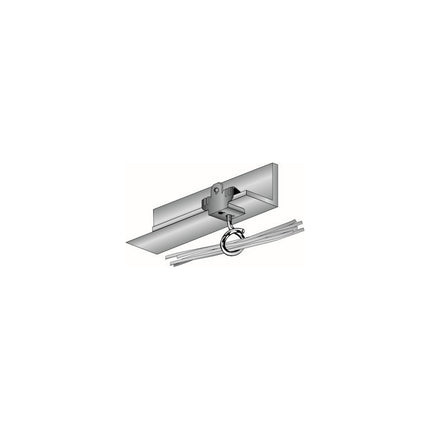

The Spring Steel Beam Clamps (Morris Part #18012) are designed for secure suspension of boxes, fixtures, and bridle rings to beam flanges ranging from 1/8" to 1/4". Suitable for electrical distributors and lighting solutions providers, these clamps facilitate efficient wire and cable management in commercial and industrial switchgear installations.
Specifications
- Material: Spring Steel
- Flange Thickness Compatibility: 1/8" to 1/4"
- Static Load Limit: 75 lbs (Front Thread), 100 lbs (Rear Thread)
- Bottom & Back Tapped Thread Size: 1/4-20
- Product Weight: 0.0740 lbs
- Manufacturer Part Number: 18012
- UPC: 601986180122
Features
- Hammer-on design for quick installation on beam flanges
- Supports suspension of electrical boxes, fixtures, and bridle rings
- Dual tapped holes on bottom and back for versatile mounting options
- UL Listed for safety and compliance
