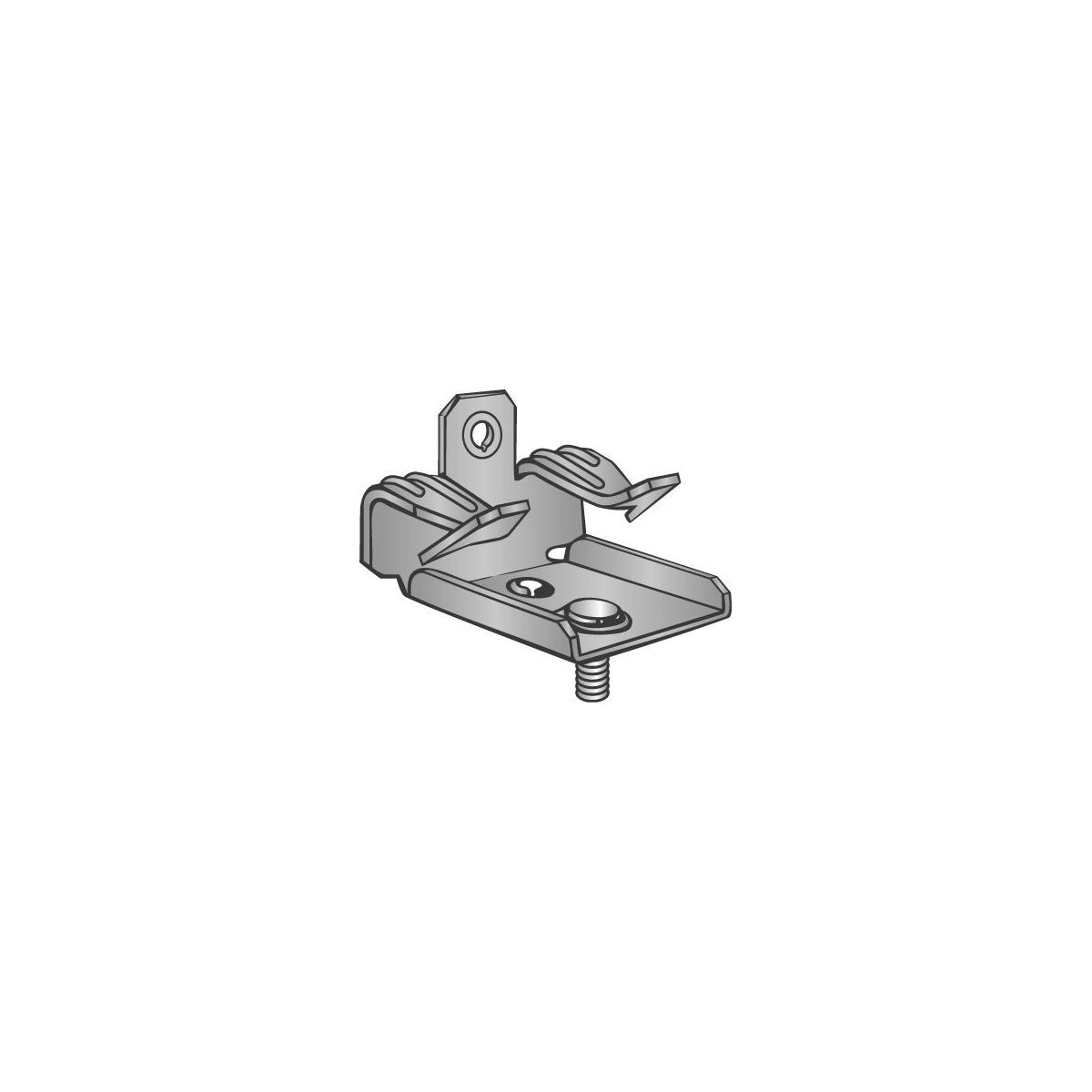

Spring Steel Beam Clamps - Hammer On - 1/4"-20 x 3/8" Stud 5/16"-1/2" Flange | Beam Clamp Solutions

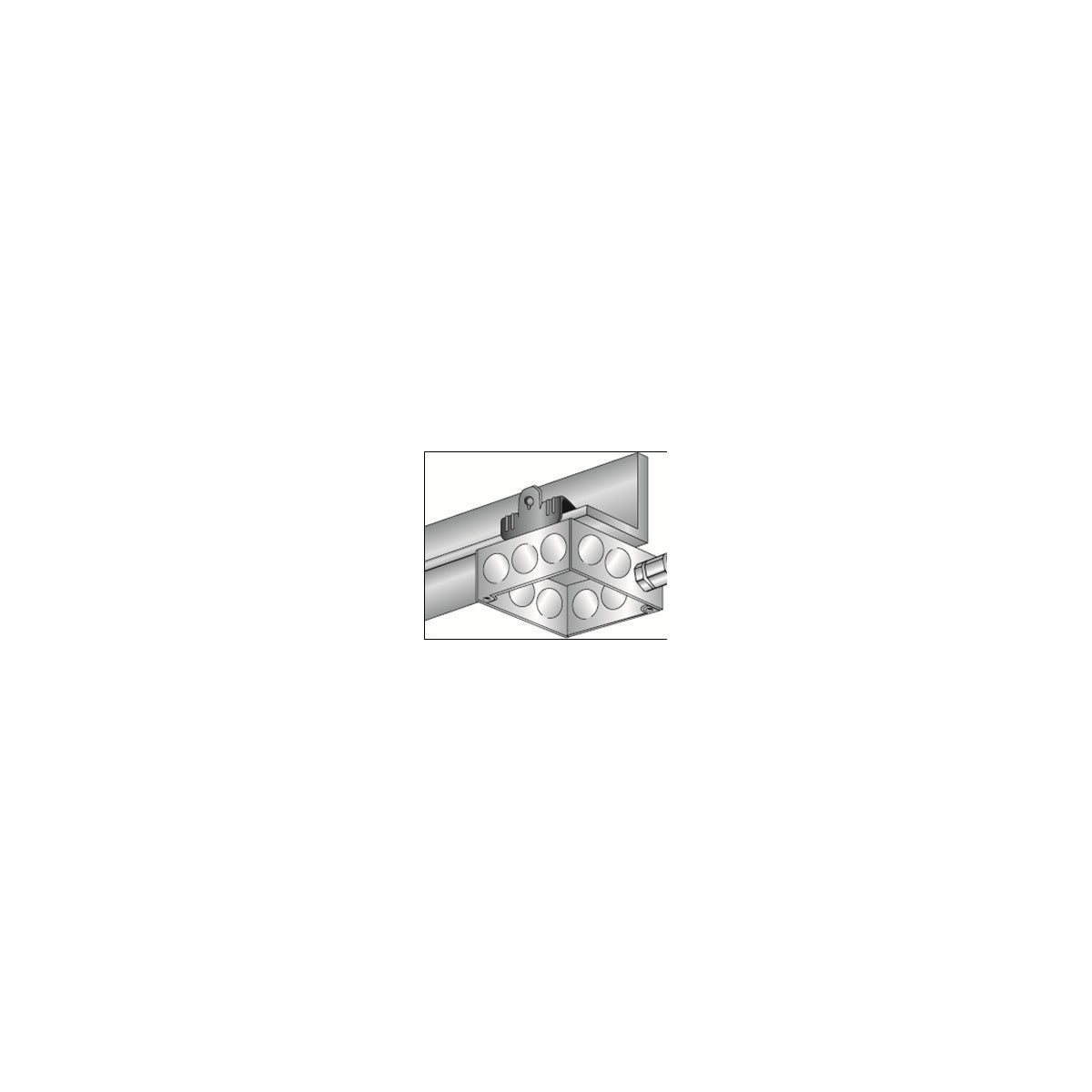

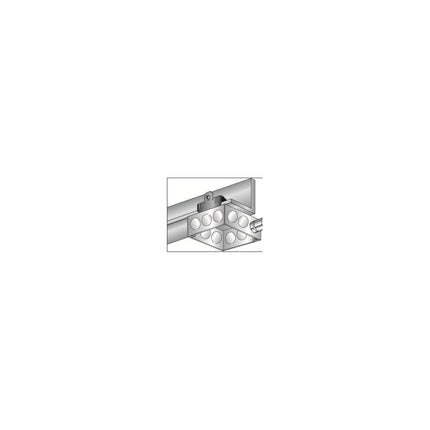

This spring steel beam clamp is designed for securely suspending electrical boxes, lighting fixtures, and bridle rings to steel beam flanges ranging from 5/16" to 1/2" thickness. It features a 1/4"-20 x 3/8" staked stud for mounting applications from the bottom of the beam, making it suitable for electrical distributors and switchgear suppliers requiring reliable mounting hardware for wire and cable management and lighting solutions.

Specifications

• Material: Spring Steel
• Stud Size: 1/4"-20 x 3/8"
• Flange Thickness Compatibility: 5/16" to 1/2"
• Static Load Limit: 75 lbs
• Product Weight: 0.0980 lbs
• Manufacturer Part #: 18124

Features

• Hammer-on installation for quick and secure attachment
• Designed to suspend boxes, fixtures, and bridle rings from beam flanges
• Compatible with beam flanges from 5/16" to 1/2" thickness
• Staked stud allows for mounting from the bottom of the beam
• UL Listed for safety and compliance

Downloads & Links

• Spec Sheet
