Description

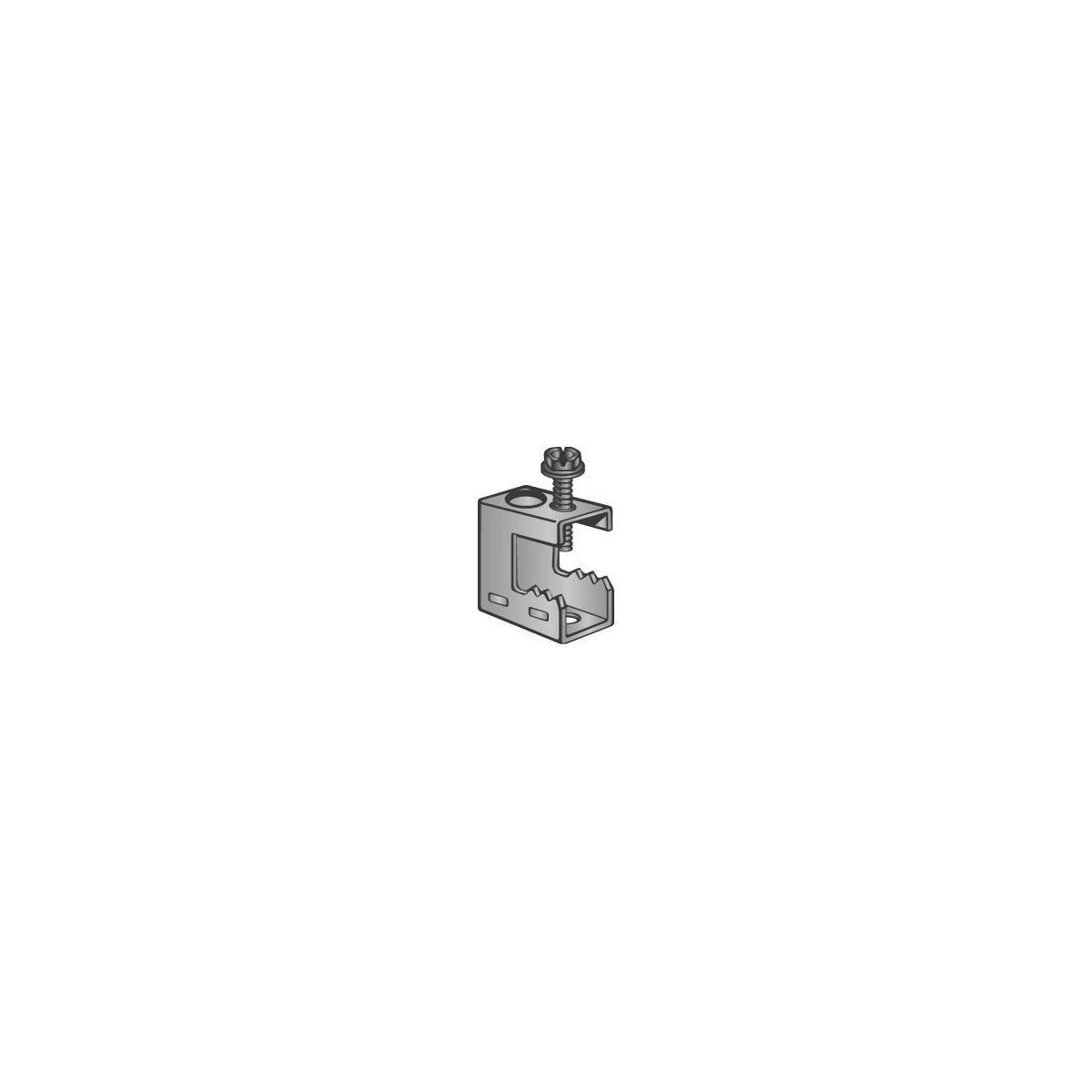

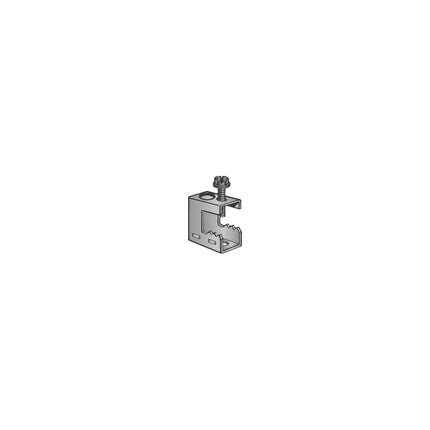

Spring Steel Beam Clamps 1/2" – Electrical Distributor Hardware

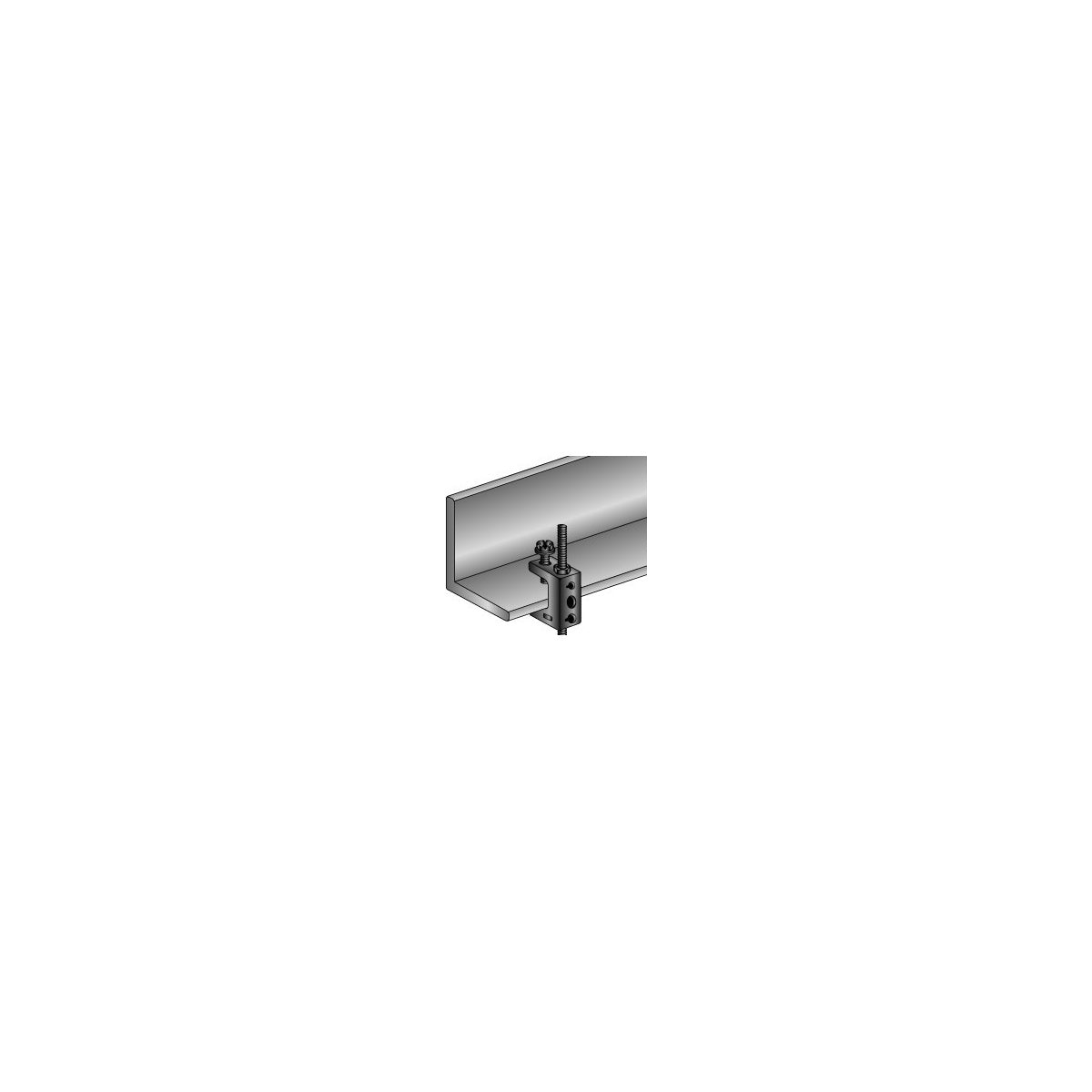

The Spring Steel Beam Clamps 1/2" by Morris Products provide a reliable solution for securing threaded rods and electrical hardware to beam flanges up to 1/2" thick. Designed for use by electrical distributors and switchgear suppliers, these clamps facilitate efficient installation of conduit hangers, electrical boxes, and bridle rings, supporting wire and cable management in commercial and industrial lighting solutions.
Specifications
- Material: Spring Steel
- Accommodates Beam Flange Thickness: Up to 1/2"
- Compatible Drop Rod Sizes: 1/4" and 3/8"
- Static Load Limit: 100 lbs
- Manufacturer Part Number: 18016
- Product Weight: 0.0850 lbs
- UPC: 601986180160
Features
- Fast installation with easy fit on beam flange up to 1/2"
- Thread tapping 1/4"-20 on bottom and back for versatile mounting options
- Additional #10-24 tapping on the back for flexible hardware attachment
- Compatible with "S" hooks, conduit hangers, electrical boxes, and bridle rings (#10-24 or 1/4"-20)
