Morris Products
Split Bolt Connectors With Spacer For Copper Conductors 4/0-250
SKU: #276493
Part: #90362
UPC: 601986903622
Morris Products
Split Bolt Connectors With Spacer For Copper Conductors 4/0-250
SKU: #276493
Part: #90362
UPC: 601986903622
Description
Split Bolt Connectors With Spacer For Copper Conductors 4/0-250 - Electrical Wire Connector
The Split Bolt Connector with Spacer is designed for secure and reliable electrical connections of copper conductors ranging from 4/0 to 250 AWG. Manufactured by Morris Products, this connector is suitable for use by electrical distributors and professionals involved in wire and cable installations. It provides a robust mechanical and electrical connection for copper and copperweld stranded wire applications, supporting up to 600 volts.
Specifications
- Material: High conductivity electrolytic copper
- Nut Material: Bronze
- Voltage Rating: 600 V
- Wire Range: 4/0 to 250 AWG
- Torque: 500 in-lb

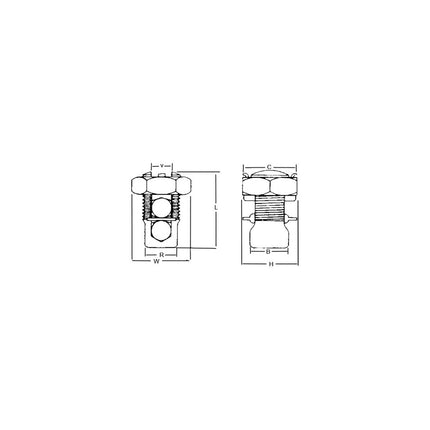

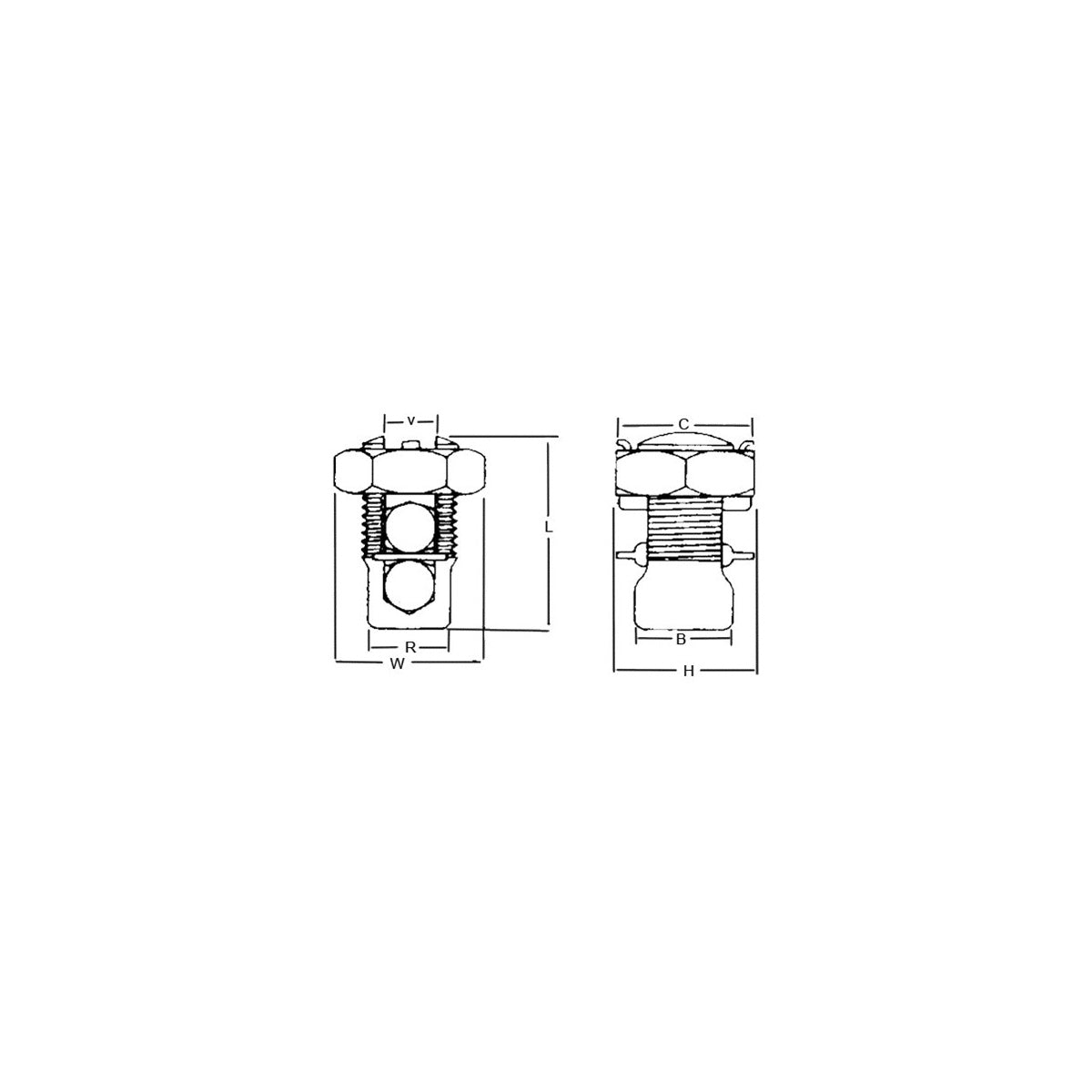

- Dimensions (inches): B - 1.1, C - 1.25, H - 1.574, L - 2.22, R - 1.06, V - 0.579, W - 1.45
- Product Weight: 0.5810 lbs
- UPC: 601986903622
- Manufacturer Part #: 90362
- Certifications: UL, cUL, RoHS compliant
Features
- Manufactured from high strength, high conductivity electrolytic copper
- Bronze nut for enhanced durability
- Electro tin plated for corrosion resistance
- Free running thread with easy grip hex nut for straightforward installation
- Ribbed separator spacer provides excellent pullout force resistance
- Secure connection for all wire combinations within the specified range
