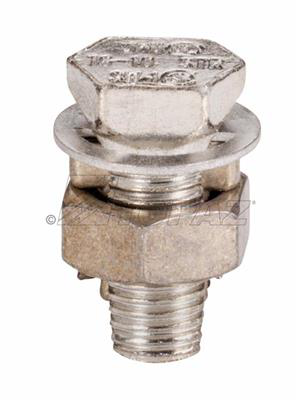

Split Bolt Connectors with Space Bar Wire Size 3/0 – Electrical Wire Connector

Topaz Split Bolt Connectors with space bar are designed for reliable electrical connections in wire and cable applications. Constructed from copper alloy with electro-tin plating, these connectors offer corrosion resistance and durability. The spacer bar separates dissimilar conductors, preventing high pressure point contacts, making them suitable for copper to copper, copper to aluminum, and aluminum to aluminum connections. The threaded connection and hex style head facilitate easy installation. These connectors are UL listed and commonly used by electrical distributors and switchgear suppliers for secure wire splicing and grounding tasks.

Specifications

• Material: Copper Alloy
• Connection: Threaded
• Wire Type: Copper to Copper Wire
• Product Weight: 0.4409 lbs
• Manufacturer: Southwire
• Manufacturer Part #: 798

Features

• Electro-tin plated, high strength copper alloy with spacer
• Spacer separates dissimilar conductors and provides long contact length to prevent high pressure point contacts
• Quick turn threaded body for easy installation
• Hex style head assembly
• UL listed for copper to copper connections

Downloads & Links

• Spec Sheet
