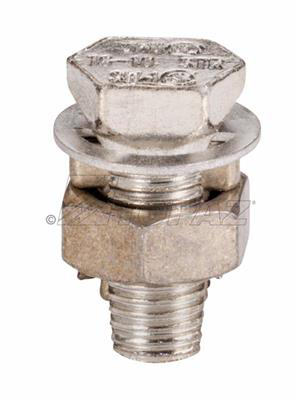

Split Bolt Connectors with Space Bar Wire Size 2/0 – Electrical Wire Connectors

Split Bolt Connectors with Space Bar are designed for secure electrical connections in wire and cable applications. Manufactured by Southwire, these connectors feature a threaded connection system and are primarily used for copper to copper wire connections. Suitable for electrical distributors and switchgear suppliers, they provide reliable performance in lighting solutions and general electrical wiring installations.

Specifications

• Material: Copper Alloy
• Connection: Threaded
• Wire Type: Copper to Copper Wire
• Product Weight: 2.0180 lbs
• Manufacturer Part #: 797
• UPC: 751338180901

Features

• Electro-tin plated high strength copper alloy construction for corrosion and cracking resistance
• Spacer separates dissimilar conductors and provides long contact length to prevent high pressure point contacts
• Quick turn threaded body enables easy installation
• Hex style head assembly
• UL listed for copper to copper connections

Downloads & Links

• Spec Sheet
