Morris Products
Split Bolt Connectors For Copper Conductors #6
SKU: #276430
Part: #90316
UPC: 601986903165
Morris Products
Split Bolt Connectors For Copper Conductors #6
SKU: #276430
Part: #90316
UPC: 601986903165
Description
Split Bolt Connectors For Copper Conductors #6 – Copper Electrical Connectors
The Split Bolt Connectors For Copper Conductors #6 by Morris Products are designed for secure and reliable electrical connections in copper wiring applications. These connectors are suitable for use by electrical distributors and switchgear suppliers requiring robust wire and cable joining solutions. They are UL 467 listed for direct burial and grounding/bonding, making them appropriate for outdoor and grounding applications within lighting solutions and electrical distribution systems.
Specifications
- Material: Copper (Body: High Strength Electrolytic Copper; Nut and Spacer: Copper Alloy)
- Conductor Size: #6 (4-4 AWG max tap, 8-14 AWG min tap)
- Temperature Rating: 75°C
- Voltage Rating: 600 V
- Torque: 165 In-Lb

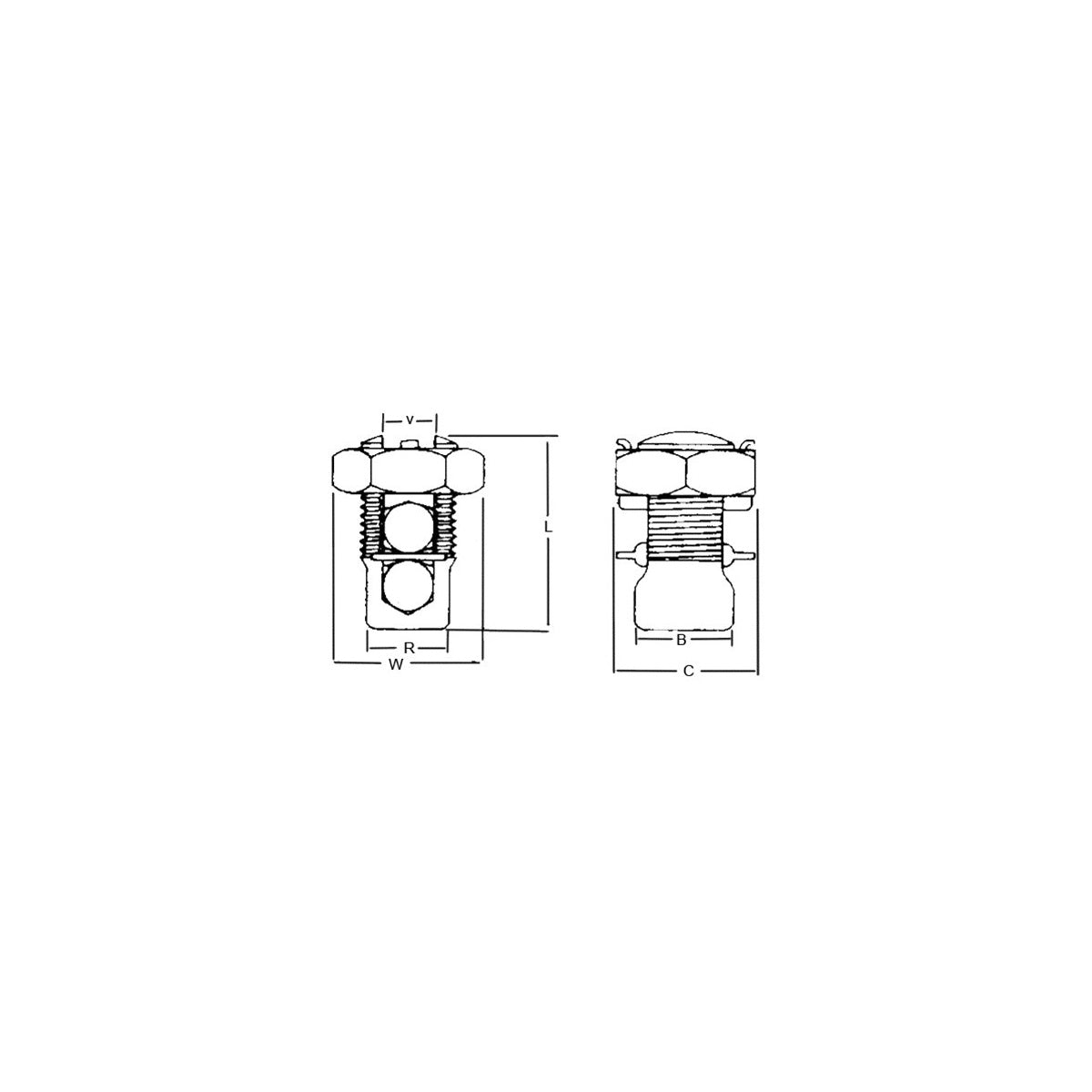

- Dimensions (inches): B: 0.492, C: 0.625, L: 0.906, R: 0.413, V: 0.165, W: 0.722
- Product Weight: 0.0850 lbs
- UPC: 601986903165
- Manufacturer Part #: 90316
Features
- Manufactured from high strength, high conductivity copper alloy
- UL 467 listed for direct burial and grounding/bonding applications
- Designed for copper and CopperWeld stranded cable only
- Includes conductor spacer to accommodate dissimilar conductors
