Morris Products
Split Bolt Connectors For Copper Conductors 4/0-250
SKU: #276465
Part: #90328
UPC: 601986903288
Morris Products
Split Bolt Connectors For Copper Conductors 4/0-250
SKU: #276465
Part: #90328
UPC: 601986903288
Description
Split Bolt Connectors For Copper Conductors 4/0-250 – Electrical Connector
The Split Bolt Connector for copper conductors 4/0-250 by Morris Products is designed for secure mechanical and electrical connections in wire and cable applications. It is suitable for use by electrical distributors and switchgear suppliers requiring reliable, high-conductivity connections in lighting solutions and electrical wiring systems.
Specifications
- Material: High conductivity electrolytic copper
- Nut Material: Bronze
- Voltage Rating: 600 V
- Wire Range: 4/0 to 250 MCM copper and copperweld stranded wire
- Torque: 500 In-Lb

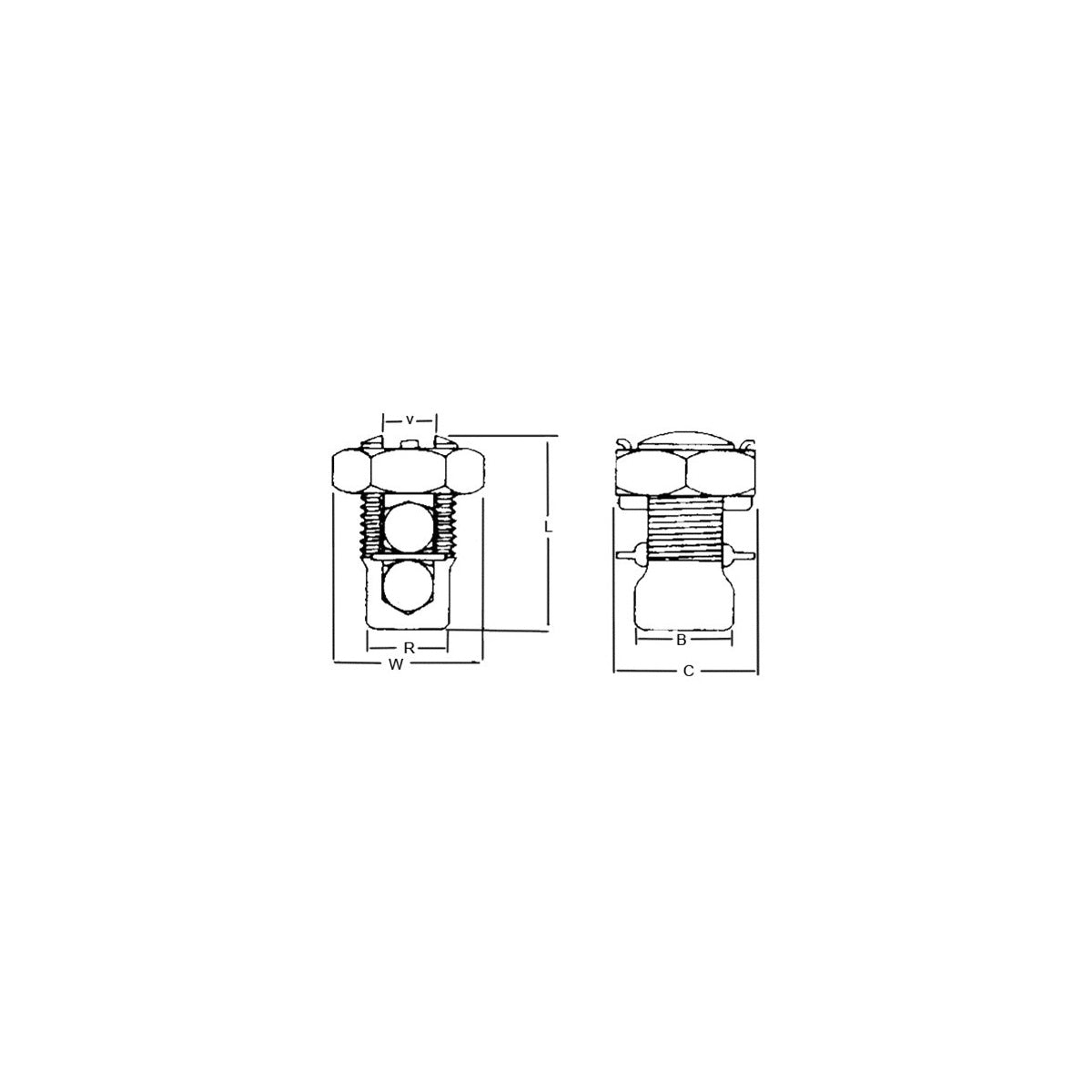

- Dimensions (in inches): B - 1.10, C - 1.25, L - 2.09, R - 1.06, V - 0.579, W - 1.45
- UL Listed
- cUL Listed
- RoHS Compliant
- Product Weight: 0.4970 lbs
- UPC: 601986903288
- Manufacturer Part #: 90328
Features
- Manufactured from high strength, high conductivity electrolytic copper for optimal electrical performance
- Bronze nut and rider for enhanced durability and corrosion resistance
- Free running thread with easy grip hex nut for simplified installation
- Ribbed separator provides excellent pullout force resistance ensuring secure connections
- Compatible with a wide range of wire combinations within the specified conductor size range
