Split Bolt Connectors For Copper Conductors #4 – Copper Electrical Connectors

Split Bolt Connectors For Copper Conductors #4 are designed for secure mechanical and electrical connections of copper conductors in electrical distribution and lighting solutions. These connectors are suitable for grounding and bonding applications, commonly supplied by wire and cable distributors and switchgear suppliers. Manufactured by Morris Products, they provide reliable conductivity and durability for direct burial installations.

Specifications

• Material: Copper (Body: High Strength Electrolytic Copper, Nut and Spacer: Copper Alloy)
• Conductor Size: #4
• Voltage Rating: 600 V
• Temperature Rating: 75°C
• UL Certification: UL 467 Listed for Direct Burial
• CSA Certification: Yes
• Product Weight: 0.1130 lbs
• Torque Rating: 165 In-Lb

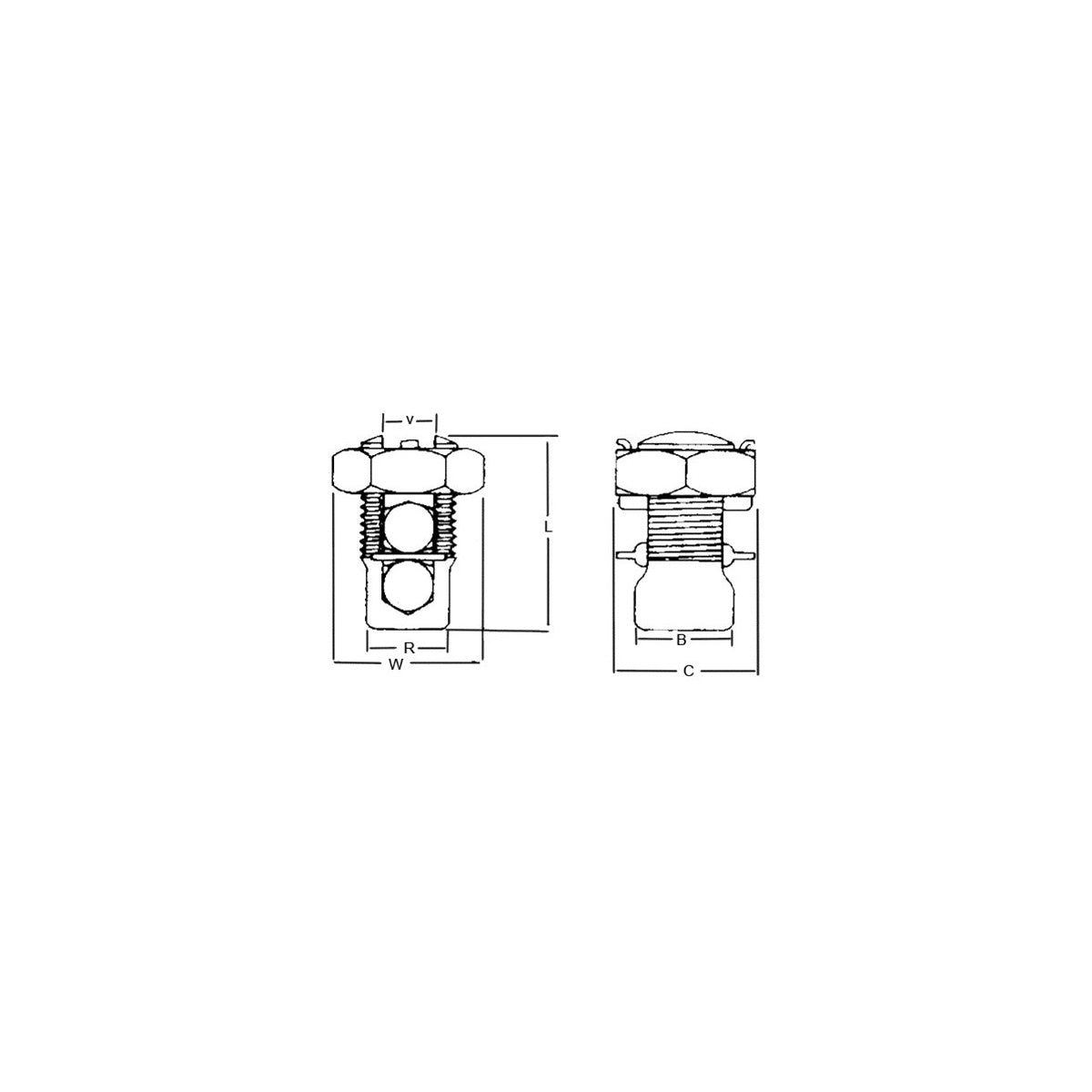

• Dimensions: B = 0.709 in, C = 0.812 in, L = 1.16 in, R = 0.579 in, V = 0.268 in, W = 0.938 in
• Manufacturer Part #: 90318
• UPC: 601986903189

Features

• Manufactured from high strength, high conductivity copper alloy
• UL 467 listed for direct burial and grounding/bonding applications
• Compatible with copper and copper-weld stranded cable only
• Conductor spacer accommodates dissimilar conductors

Downloads & Links

• Spec Sheet
