Split Bolt Connectors For Copper Conductors 3/0 - Electrical Connector

The Split Bolt Connector for Copper Conductors 3/0 by Morris Products is designed to provide secure and reliable connections for copper and copperweld stranded wire in electrical distribution and lighting solutions. This connector supports wire sizes from 3/0 to 3/0 for maximum runs and 2/0 to 8 for minimum taps, making it suitable for a range of wire combinations in commercial and industrial electrical applications. It is ideal for electrical distributors and switchgear suppliers requiring durable wire and cable connectors with high conductivity and mechanical strength.

Specifications

• Material: High conductivity electrolytic copper
• Nut Material: Bronze
• Voltage Rating: 600 V
• Amp Rating: To Conductor
• Wire Range: #8 Stranded through 750 MCM
• Maximum Run to Maximum Tap: 3/0 - 3/0
• Minimum Run to Minimum Tap: 2/0 - 8
• Minimum Equal Run to Tap: 1 - 1
• Torque: 500 In-Lb

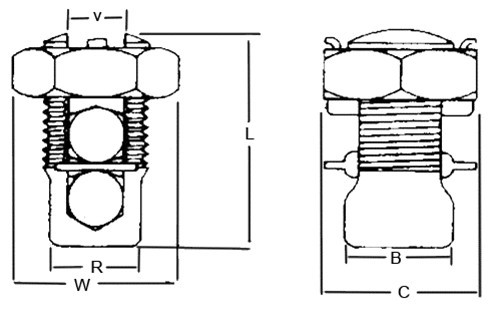

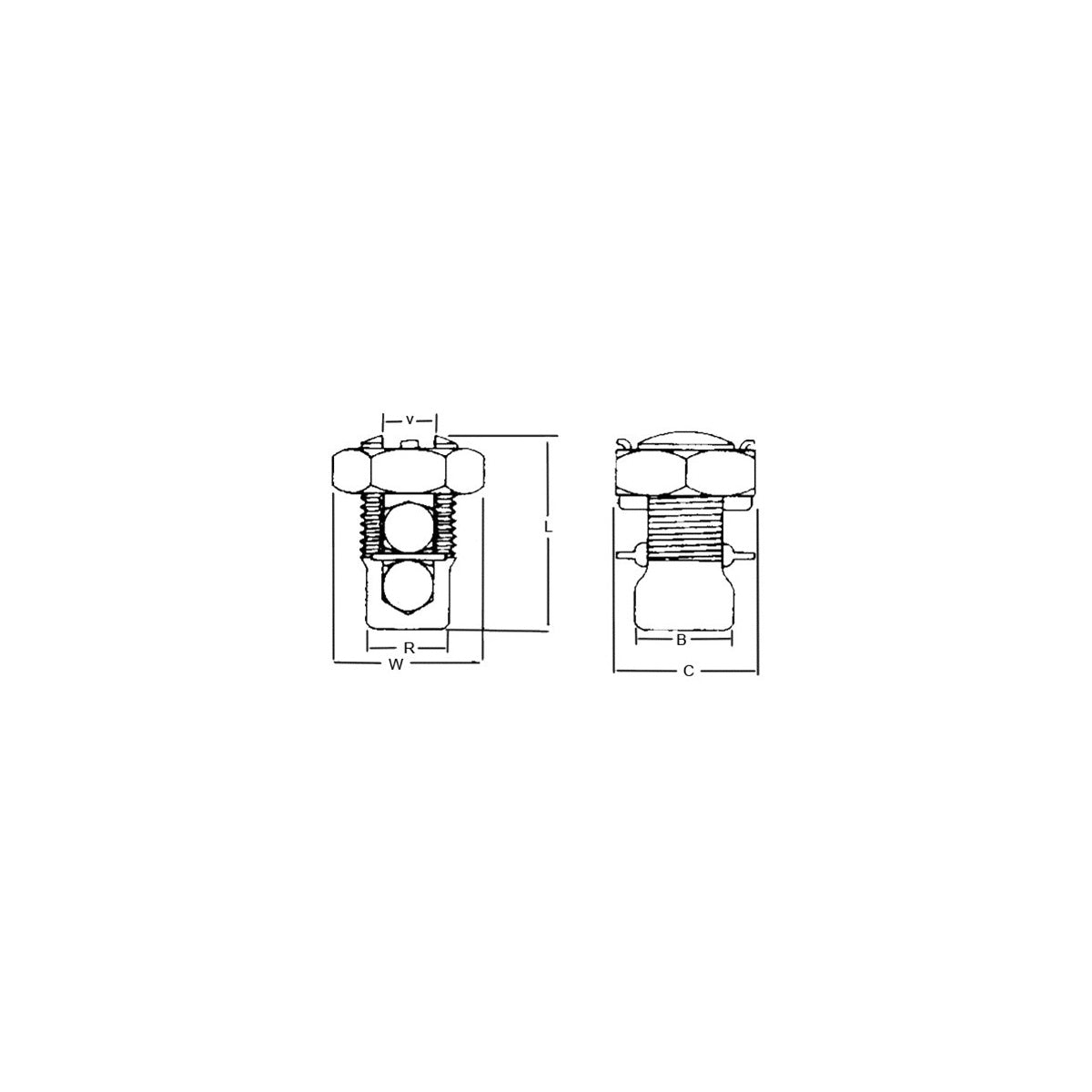

• Dimensions (inches): B: 1.10, C: 1.25, L: 2.09, R: 0.976, V: 0.531, W: 1.45
• Product Weight: 0.45 lbs
• Certifications: UL, cUL, RoHS

Features

• Manufactured from high strength, high conductivity electrolytic copper
• Bronze nut and ribbed separator provide excellent pullout force resistance
• Free running thread with easy grip hex nut for simplified installation
• Secure connection for all wire combinations within range
• Compatible with copper and copperweld stranded wire
