Split Bolt Connectors For Copper Conductors 2/0 - Copper Electrical Connector

The Split Bolt Connector for Copper Conductors 2/0 by Morris Products is designed for secure and reliable electrical connections in wire and cable applications. This connector is suitable for use by electrical distributors and switchgear suppliers requiring robust grounding and bonding solutions. It supports copper and CopperWeld stranded cables and is UL 467 listed for direct burial, ensuring compliance with industry safety standards.

Specifications

• Material: Copper (Body: High Strength Electrolytic Copper, Nut and Spacer: Copper Alloy)
• Conductor Size: 2/0
• Temperature Rating: 75¬∞C
• Voltage Rating: 600 V
• UL Certification: UL 467 Listed for Direct Burial
• CSA Certification: Yes
• Product Weight: 0.2720 lb
• Torque: 385 In-Lb

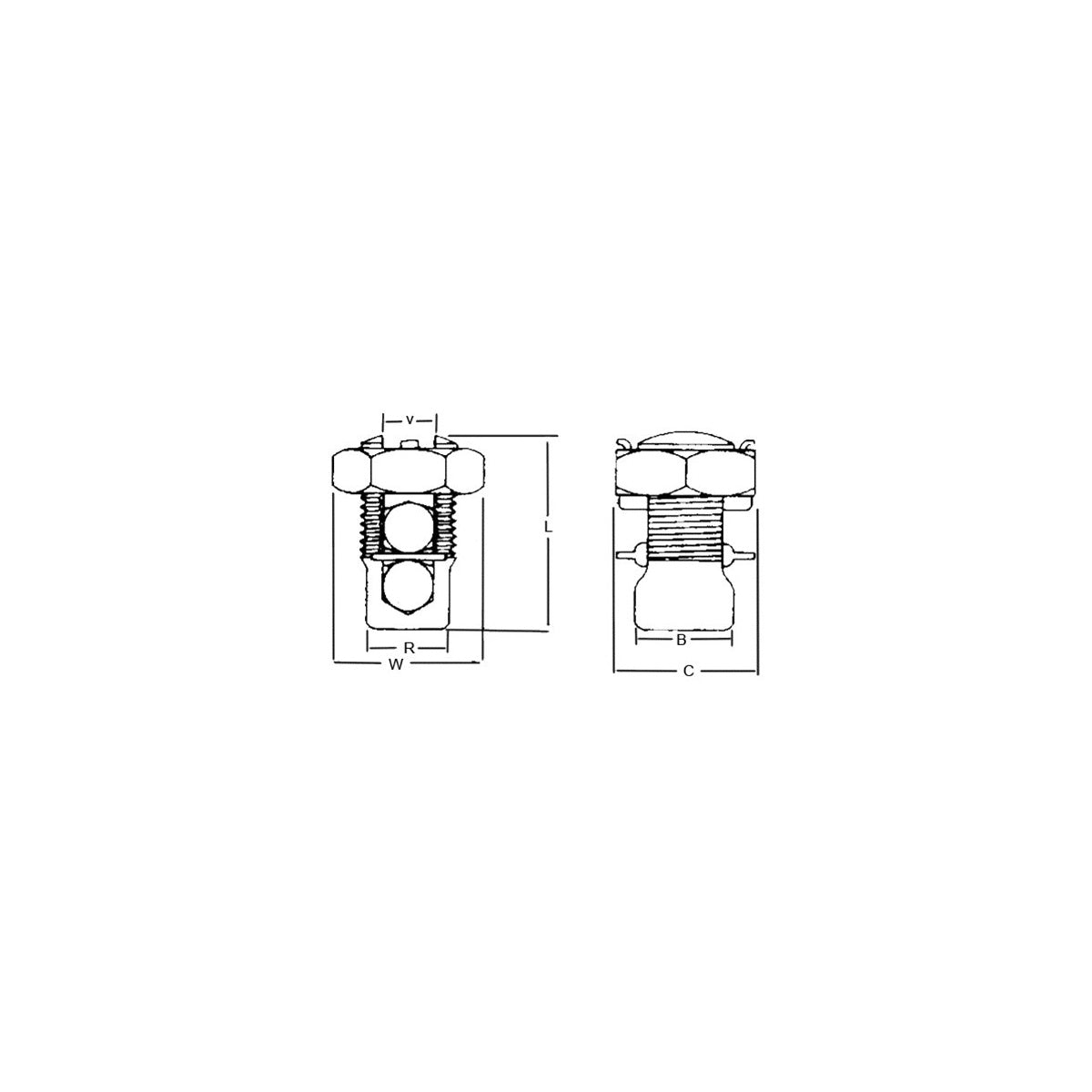

• Dimensions (inches): B - 1.06, C - 1.69, L - 0.807, R - 0.421, V - 1.28, W - 0.866
• UPC: 601986903240

Features

• Manufactured from high strength, high conductivity copper alloy
• UL 467 listed for direct burial and grounding/bonding applications
• Compatible with copper and CopperWeld stranded cables only
• Includes conductor spacer to accommodate dissimilar conductors

Downloads & Links

• Spec Sheet
