Description
Split Bolt Connectors For Copper Conductors #2 - Electrical Connectors
The Split Bolt Connectors For Copper Conductors #2 by Morris Products are designed to provide secure and reliable connections for copper and copperweld stranded wire in electrical distribution and lighting solutions. These connectors are suitable for use by electrical distributors and switchgear suppliers requiring durable wire and cable joining components with high conductivity and mechanical strength.
Specifications
- Material: High conductivity electrolytic copper
- Nut Material: Bronze
- Voltage Rating: 600 V
- Amp Rating: To conductor
- Wire Range: #8 stranded through 750 MCM
- Manufacturer Part #: 90320
- Product Weight: 0.1410 lbs
- UPC: 601986903202
- Certifications: UL, cUL, RoHS compliant

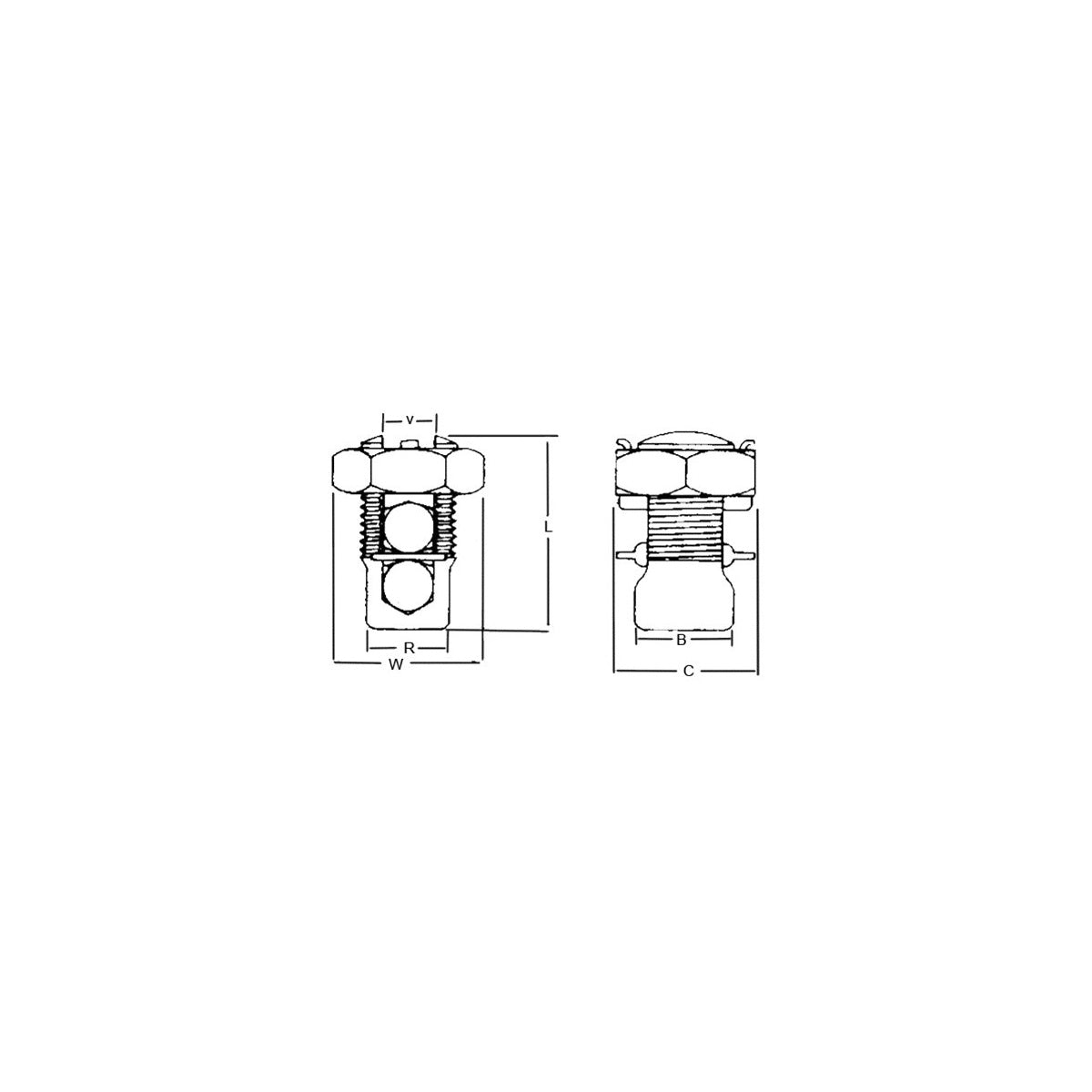

- Dimensions (inches): B - 0.748, C - 0.812, L - 1.26, R - 0.614, V - 0.326, W - 0.938
- Torque: 275 in-lb
Features
- Manufactured from high strength, high conductivity electrolytic copper
- Bronze nut and ribbed separator for excellent pullout force resistance
- Free running thread with easy grip hex nut for simplified installation
- Secure connection for all wire combinations within the specified range
