Description
Split Bolt Connectors For Copper Conductors 1/0 – Electrical Connector
The Split Bolt Connector for Copper Conductors 1/0 by Morris Products is designed for secure and reliable electrical connections in wire and cable applications. Manufactured from high conductivity electrolytic copper with a bronze nut, this connector is suitable for copper and copperweld stranded wire ranging from #8 stranded through 750 MCM. It is ideal for electrical distributors and switchgear suppliers requiring robust lighting solutions and wire connection components rated for 600 volts.
Specifications
- Material: High conductivity electrolytic copper
- Nut Material: Bronze
- Voltage Rating: 600 V
- Wire Range: #8 stranded through 750 MCM
- Manufacturer Part #: 90322
- Product Weight: 0.2160 lbs
- UPC: 601986903226
- UL Certified: Yes
- cUL Certified: Yes
- RoHS Compliant: Yes
- Torque: 385 in-lb

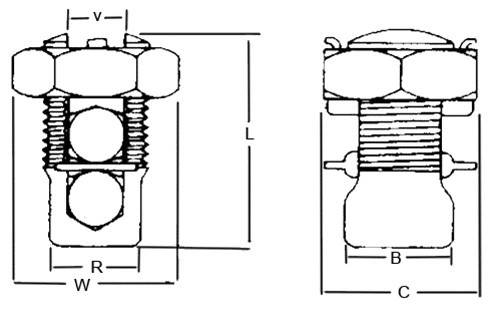

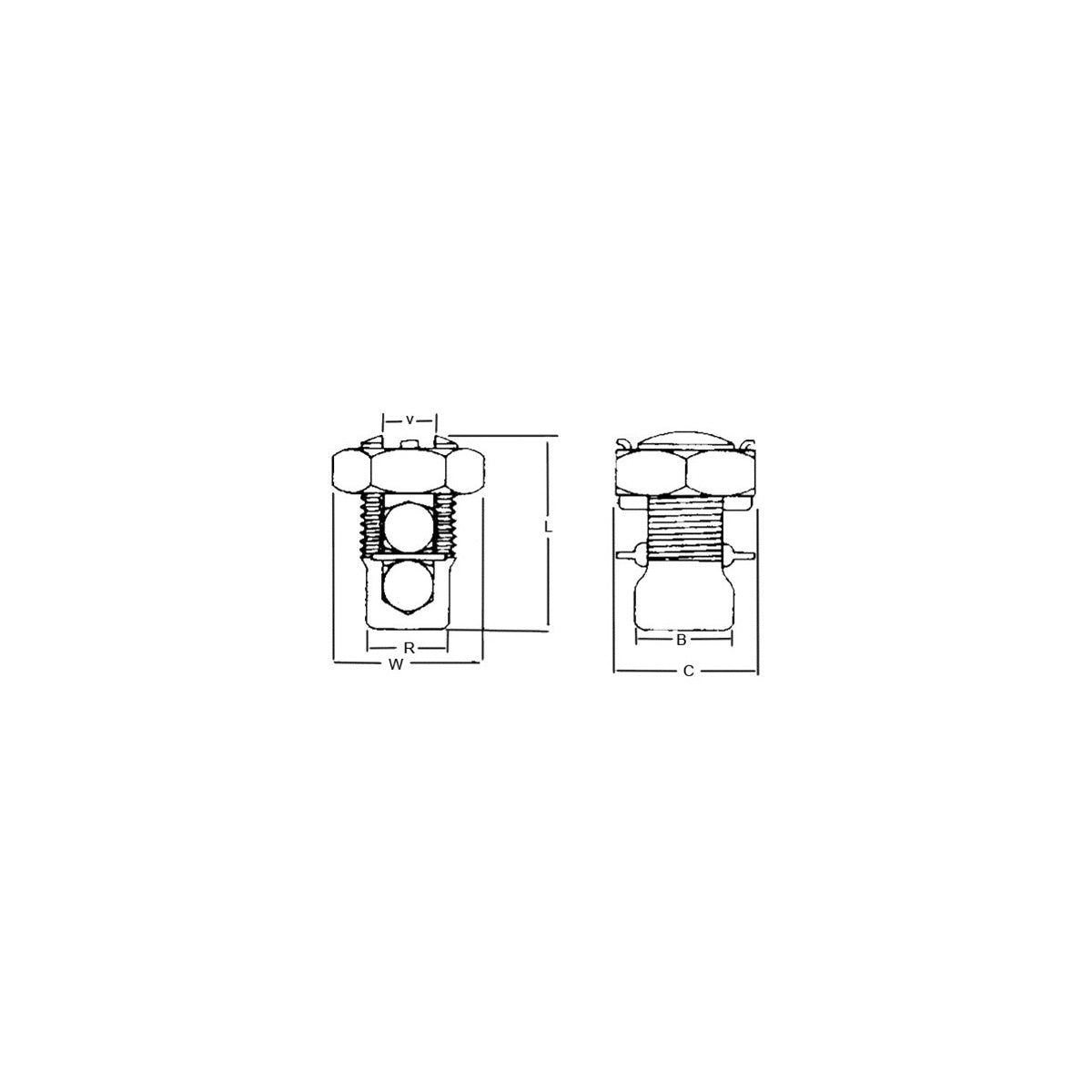

- Dimensions (inches): B - 0.787, C - 0.937, L - 1.54, R - 0.708, V - 0.374, W - 1.08
Features
- Manufactured from high strength, high conductivity electrolytic copper
- Bronze nut for durability and corrosion resistance
- Free running thread with easy grip hex nut for simplified installation
- Ribbed separator providing excellent pullout force resistance
- Secure connection for all wire combinations within the specified range
