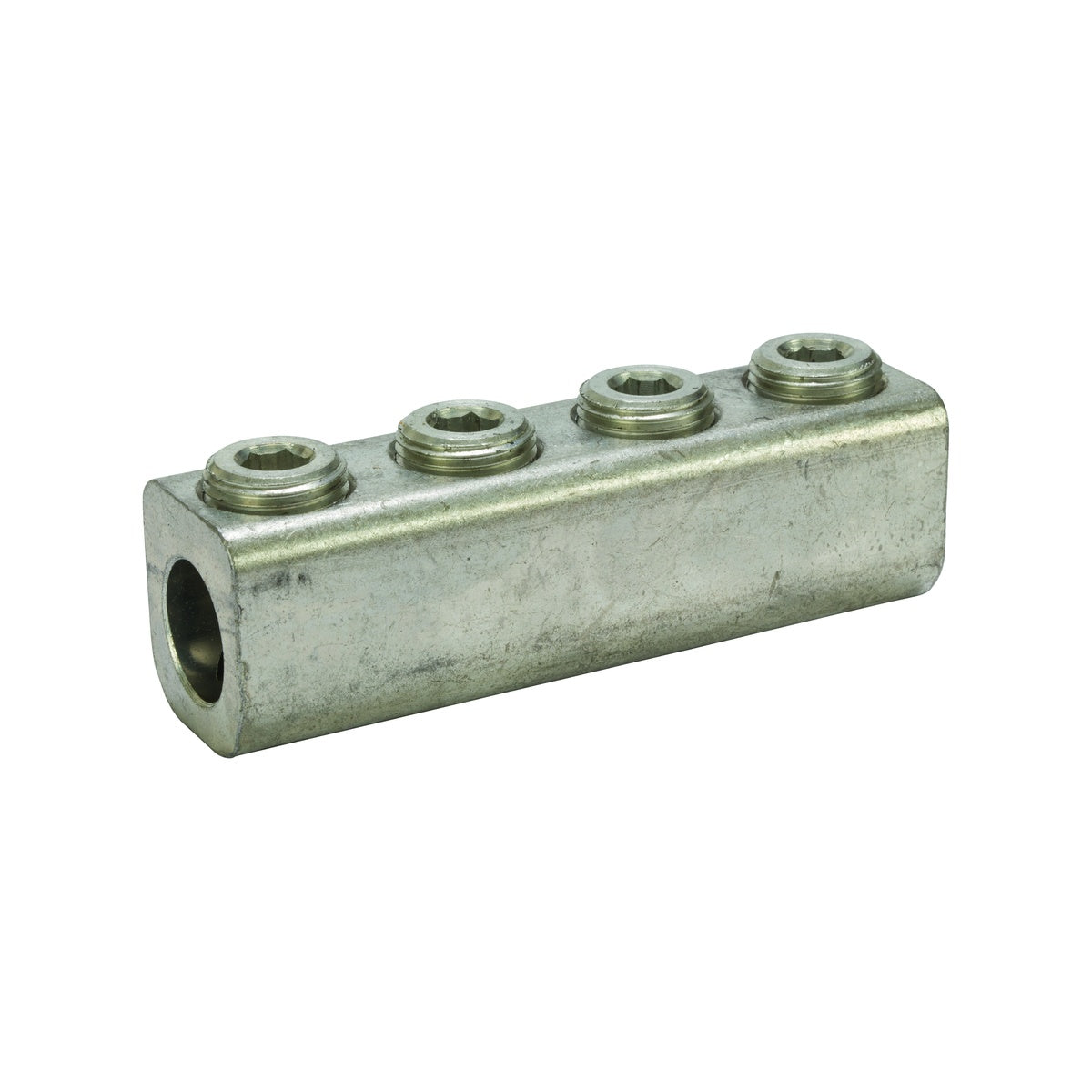

Splicer Reducer 500 MCM-#4 Electrical Connector

The Splicer Reducer 500 MCM-#4 is designed for splicing copper or aluminum wires of equal or different sizes, supporting efficient electrical connections in wire and cable applications. Manufactured from 6061T-6 aluminum alloy with a tin-plated finish, this component ensures low contact resistance and compatibility with both copper and aluminum conductors. It is suitable for use by electrical distributors and switchgear suppliers requiring reliable splicing solutions rated for 600 volts.

Specifications

• Material: 6061T-6 Aluminum Alloy
• Finish: Tin-Plated
• Rated Voltage: 600 volts
• Dimensions: 5 in (Length) x 1.38 in (Width) x 1.5 in (Height)
• Max. Temperature: 90 degrees celsius
• Order Minimum: 1 unit
• Product Weight: 2.25 lbs
• Country of Origin: India
• Manufacturer: NSI Industries
• Manufacturer Part #: 500SR

Features

• Splices two copper or aluminum wires of equal or different sizes
• Tin plating reduces contact resistance
• Compatible with copper and aluminum conductors
• Constructed from durable 6061T-6 aluminum alloy
• Rated for 600 volts electrical applications
