Splicer Reducer 4/0-6
SKU: #303478
Part: #4/0SR
UPC: 662381002327
Splicer Reducer 4/0-6
SKU: #303478
Part: #4/0SR
UPC: 662381002327
Description

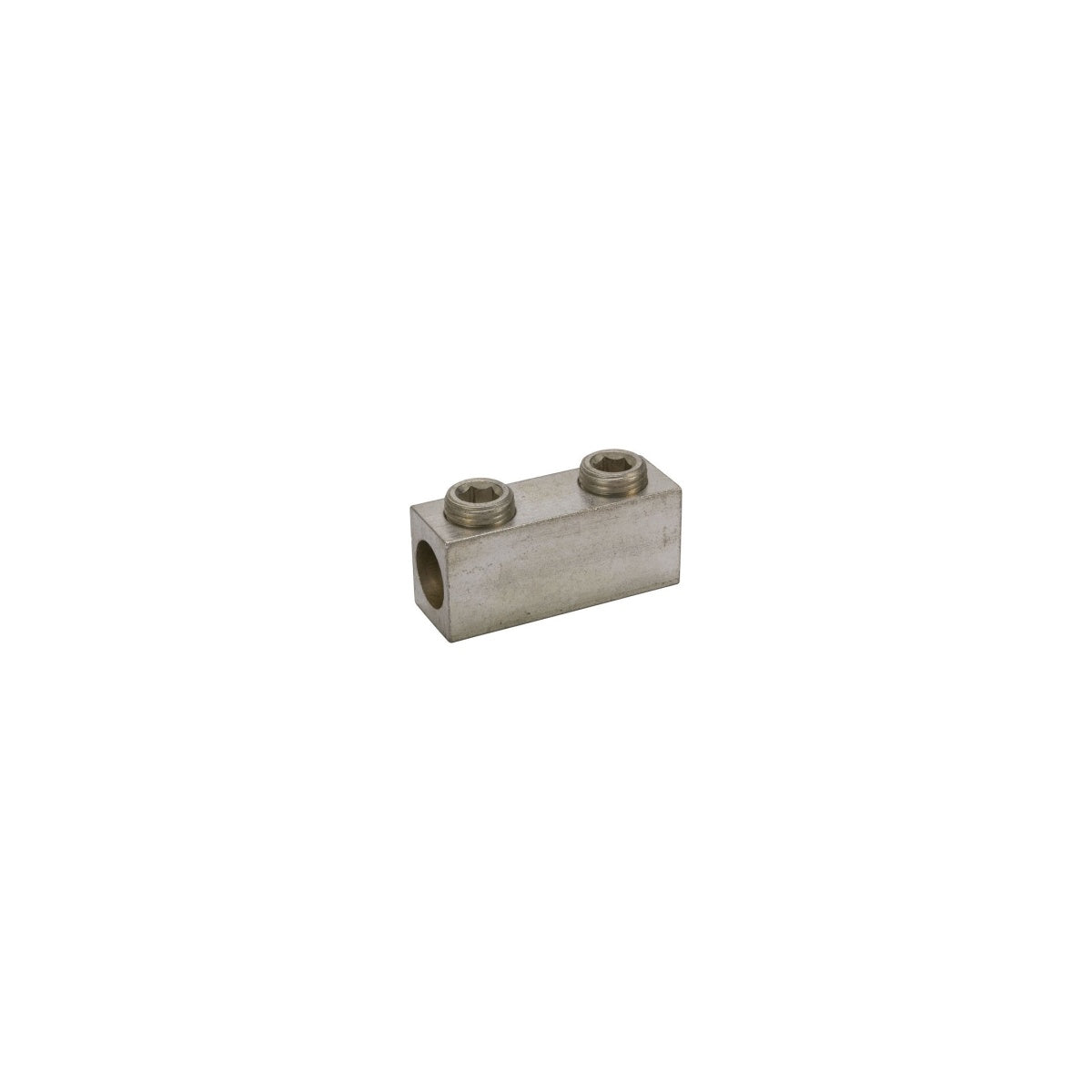

Splicer Reducer 4/0-6 – Aluminum Splicer Connector
The Splicer Reducer 4/0-6 is designed for wire splicing applications, enabling the connection of two copper or aluminum wires of equal or different sizes. This mechanical connector, supplied by a trusted electrical distributor, is suited for use in lighting solutions, wire and cable installations, and switchgear assemblies where reliable electrical connections are required. Manufactured from 6061T-6 aluminum alloy and electro-tin plated, it ensures low contact resistance and compatibility with both copper and aluminum conductors. It is UL 486A/B listed and rated for 600 volts, with a maximum temperature rating of 90 degrees Celsius.
Specifications
- Material: 6061T-6 Aluminum Alloy
- Finish: Tin-Plated
- Voltage Rating: 600V (2000V max per UL486B)
- Temperature Rating: 90 degrees Celsius
- Wire Range: 4/0 to 6 AWG
- Length: 2.31 in
- Width: 0.812 in
- Height: 1.00 in
- UL Listing: UL 486A/B
- Manufacturer Part #: 4/0SR
- Country of Origin: United States
- Order Minimum: 1 unit
- Product Weight: 2.64 lbs
Features
- Splices two copper or aluminum wires of equal or different sizes
- Constructed from durable 6061T-6 aluminum alloy
- Electro-tin plated for low contact resistance
- Dual rated for use with copper and aluminum conductors
- UL 486A/B listed for wire connectors
- Made in the USA by NSI Industries
