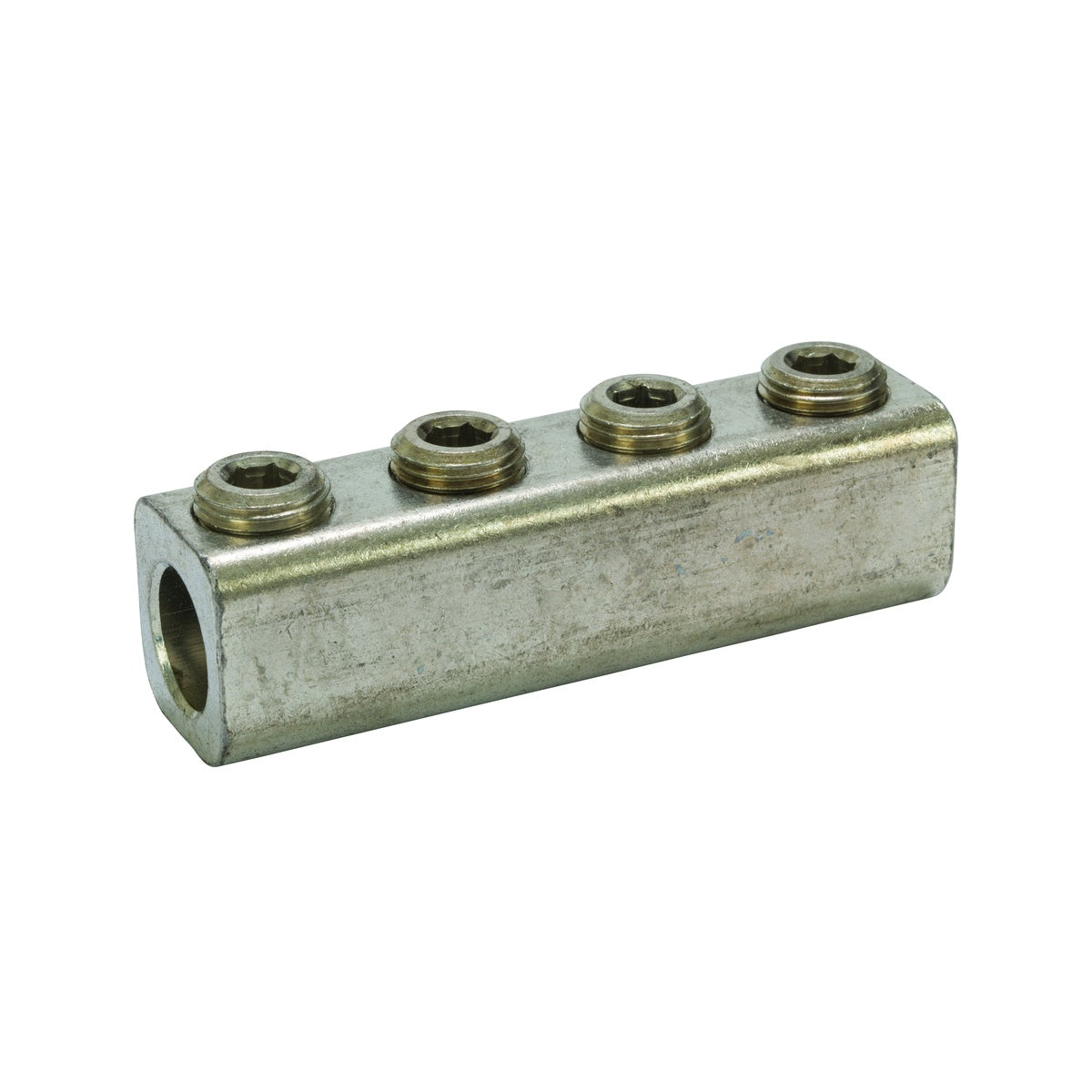

Splicer Reducer 350-6 Aluminum Splicer Reducer

This aluminum splicer reducer is designed for splicing two copper or aluminum wires of equal or different sizes, making it suitable for electrical distributors and wire and cable applications. Manufactured from 6061T-6 aluminum alloy with a tin-plated finish, it ensures low contact resistance and reliable conductivity. Rated for 600 volts with a maximum temperature of 90 degrees Celsius, it meets UL 486A/B standards, supporting safe use in lighting solutions and switchgear supplier environments.

Specifications

• Material: 6061T-6 Aluminum Alloy
• Finish: Tin-Plated
• Length: 4.19 in
• Width: 1.13 in
• Height: 1.19 in
• Max. Temperature: 90 degrees celsius
• Voltage Rating: 600 volts (2000V max. per UL486B)
• Manufacturer: NSI Industries
• Manufacturer Part #: 350SR
• Country of Origin: India
• Product Weight: 2.72 lbs

Features

• Electro-tin plated for low contact resistance
• Compatible with both copper and aluminum conductors
• UL 486A/B Listed for safety and reliability
• Suitable for splicing wires of different sizes
