Description

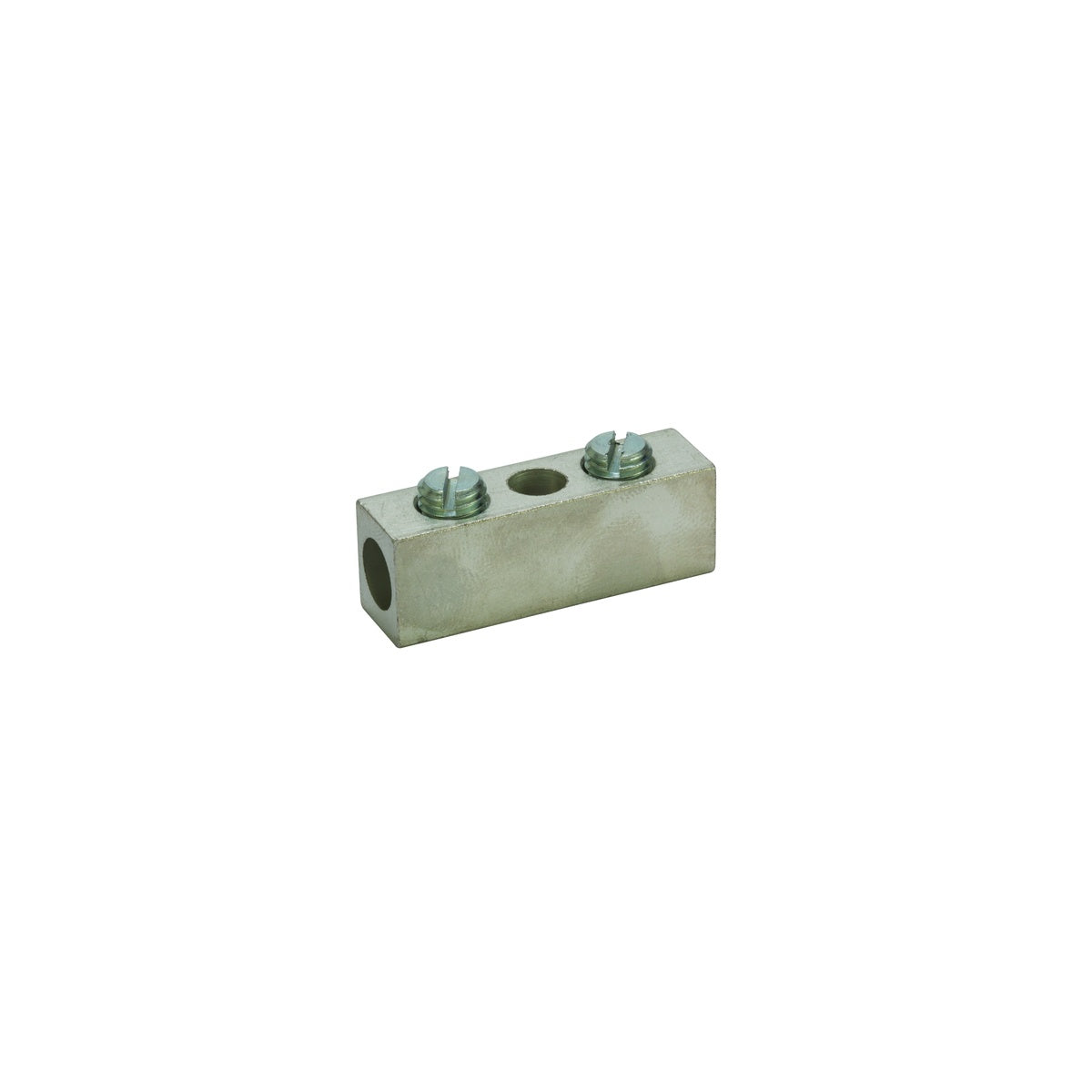

Splicer Reducer 2-14 AWG Aluminum Splicer Reducer
This aluminum splicer reducer is designed for splicing two copper or aluminum wires of equal or different sizes, supporting wire ranges from 2 to 14 AWG. Manufactured by NSI Industries, it is constructed from 6061T-6 aluminum alloy with an electro-tin plated finish to ensure low contact resistance. Suitable for electrical distributors and wire and cable applications, it is UL 486A/B listed and rated for 600 volts, with a maximum voltage of 2000 volts per UL486B. The product is made in the USA and rated for operation at temperatures up to 90 degrees Celsius.
Specifications
- Material: 6061T-6 Aluminum Alloy
- Finish: Tin-Plated
- Wire Range: 2-14 AWG
- Voltage Rating: 600 V (2000 V max. per UL486B)
- Temperature Rating: 90 degrees Celsius
- Length: 1.594 in
- Width: 0.443 in
- Height: 0.55 in
- UL Listing: UL 486A/B Listed
- Country of Origin: United States
- Manufacturer Part #: 2SR
- Product Weight: 2.0 lbs
Features
- Splices two copper or aluminum wires of equal or different sizes
- Constructed from durable 6061T-6 aluminum alloy
- Electro-tin plated for low contact resistance
- Dual rated for copper and aluminum conductors
- UL 486A/B Listed for wire connectors ensuring compliance with safety standards
- Made in the USA
