Splicer Reducer 1/0-14
SKU: #303371
Part: #1/0SR
UPC: 662381002310
Splicer Reducer 1/0-14
SKU: #303371
Part: #1/0SR
UPC: 662381002310
Description

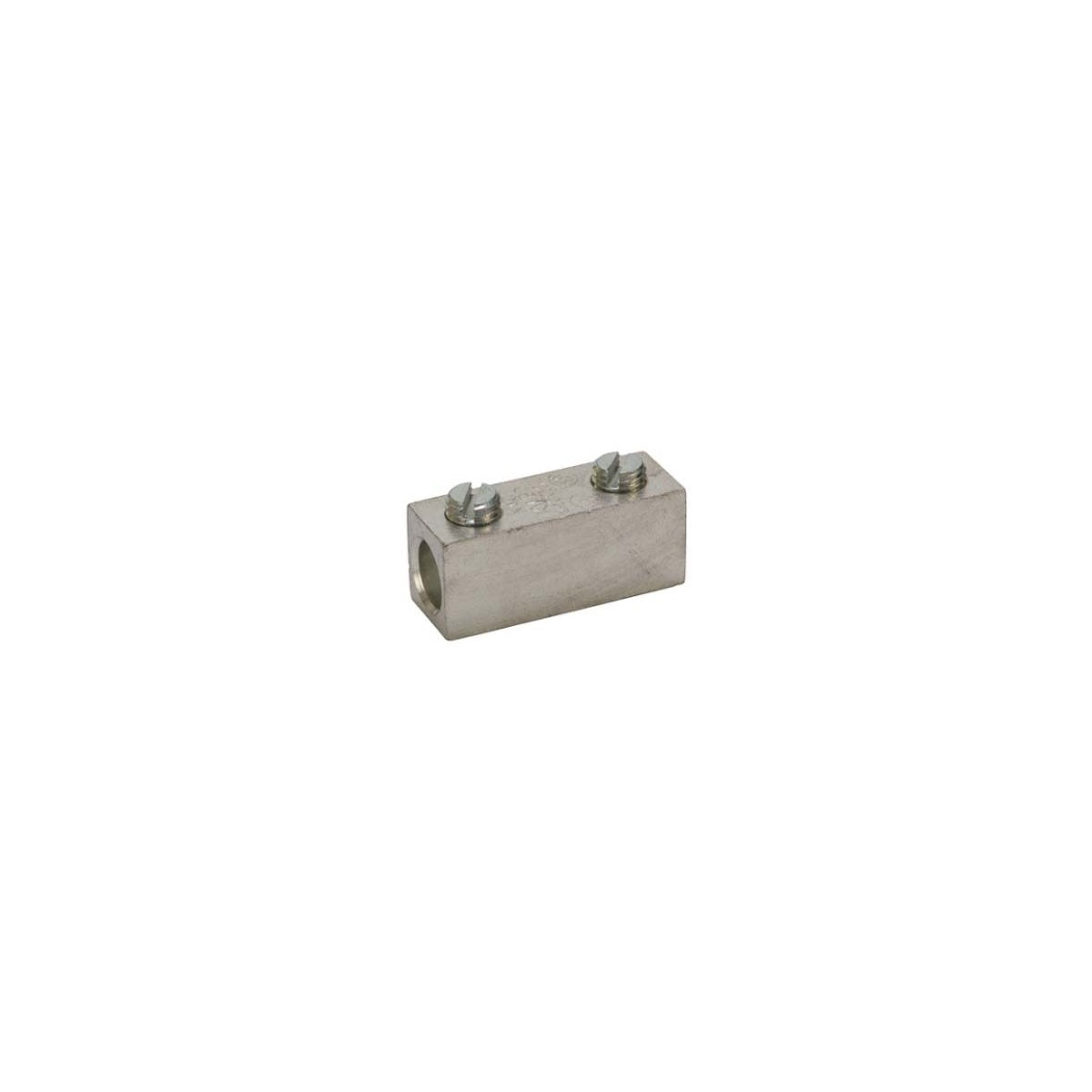

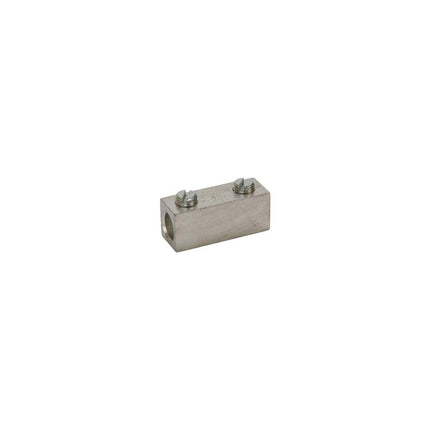

Splicer Reducer 1/0-14 Aluminum Splicer Reducer
The NSI Industries Splicer Reducer 1/0-14 is designed for splicing two copper or aluminum wires of equal or different sizes. This mechanical connector is suitable for electrical distributors and switchgear suppliers requiring reliable connections in wire and cable installations. Made from 6061T-6 aluminum alloy with an electro-tin plated finish, it ensures low contact resistance and compatibility with both copper and aluminum conductors. Rated for 600 volts and UL 486A/B listed, it supports applications demanding durability and safety in lighting solutions and electrical distribution.
Specifications
- Material: 6061T-6 Aluminum Alloy
- Finish: Tin-Plated
- Wire Range: 1/0 to 14 AWG
- Voltage Rating: 600 volts (2000V max per UL486B)
- Temperature Rating: 90 degrees Celsius
- Length: 1.5 in
- Width: 0.53 in
- Height: 0.63 in
- UL Listing: UL 486A/B Listed
- Manufacturer Part #: 1/0SR
- Country of Origin: United States
- Made in USA: Yes
- Product Weight: 1.75 lbs
Features
- Splices two copper or aluminum wires of equal or different sizes
- Constructed of durable 6061T-6 aluminum alloy
- Electro-tin plated for low contact resistance
- Dual rated for use with copper and aluminum conductors
- UL Listed for wire connector applications
