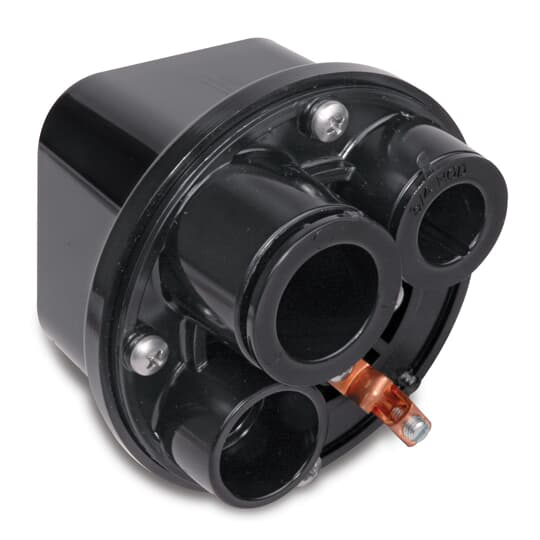

SPJ3 Swimming Pool Junction Box – Electrical Wiring Solutions

The SPJ3 Swimming Pool Junction Box is designed for making wiring connections to underwater pool lighting, suitable for line or low-voltage applications. It is ideal for electrical distributors and switchgear suppliers looking for reliable, weatherproof wiring solutions in pool environments.

Specifications

• Number of Plugs: 3
• Hub Sizes: (2) 1 1/2 Inch and (1) 1 Inch
• Color: Black
• Material: Non-Metallic Base
• Product Weight: 0.78 lbs
• Dimensions: 3 1/16" x 4 3/16" x 3 1/4" deep
• Standards: UL E63648 Listed
• Application: Used for wiring connections to underwater pool lighting, line or low-voltage

Features

• Black LEXAN¬Æ cover with die-cast solid brass base for durability
• Supplied with plugs, mounting screws, and sealing gasket for secure installation
• Weatherproof design compliant with NEC Section 680.24
• Includes grounding posts and strain-relief clamps for flexible cord and feed wire grounding
