Spiral Step Bit, #3, 1/4" - 3/4"
SKU: #207475
Part: #36-702
UPC: 783250798933
Spiral Step Bit, #3, 1/4" - 3/4"
SKU: #207475
Part: #36-702
UPC: 783250798933
Next day delivery
Description

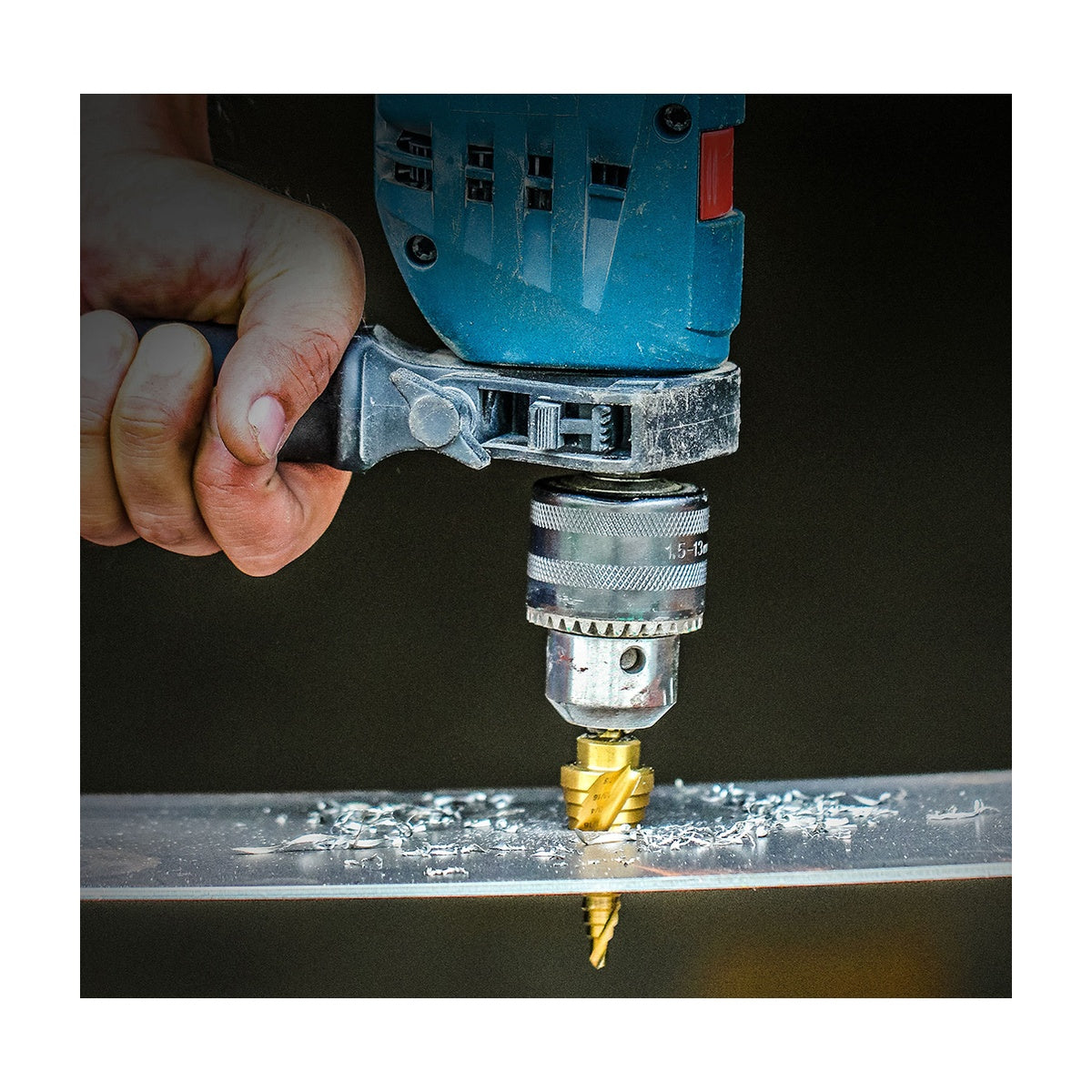

Spiral Step Bit, #3, 1/4" - 3/4" – Spiral Step Drill Bit
The IDEAL® Spiral Step Bit #3 (1/4" - 3/4") is designed for efficient and precise drilling in electrical distributor, lighting solutions, wire and cable, and switchgear supplier applications. Manufactured from M35 High Speed Steel with Cobalt, this bit offers enhanced strength and durability for repetitive use. Its titanium nitride coating reduces cooling time and extends tool life, while the spiral cutting action ensures faster chip removal, less vibration, and minimized binding during drilling. The 1/4” hex shank is compatible with cordless drills and optimized for impact drivers, making it a versatile tool for professional electricians and technicians.
- Drill Diameter: 1/4" to 3/4"
- Number of Steps: 9
- Step Increments: 1/16"
- Step Thickness: 1/8"
- Material: M35 High Speed Steel with Cobalt
- Coating: Titanium Nitride
- Shank Type: 1/4” Hex Shank
- Product Weight: 0.1400 lbs
- Manufacturer Part Number: 36-702
- UPC: 783250798933
Specifications
- Spiral cutting action provides up to 4X faster cutting speed
- Split-point tip eliminates the need for a starter pilot hole and reduces walking on material
- Titanium nitride coating lowers cooling time and extends bit life
- Balanced hardened edges for durability and precision
- Compatible with cordless drills and optimized for impact drivers
- Laser engraving provides clear visibility of step increments
- Reduces the need to change drill bits by easing into each cut gradually
