Spiral Step Bit, #1, 1/8" - 1/2"
SKU: #207474
Part: #36-701
UPC: 783250798926
Spiral Step Bit, #1, 1/8" - 1/2"
SKU: #207474
Part: #36-701
UPC: 783250798926
Next day delivery
Description

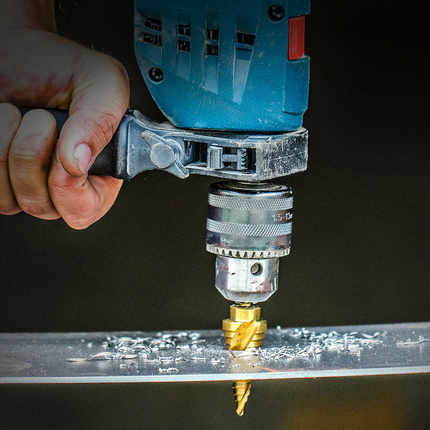

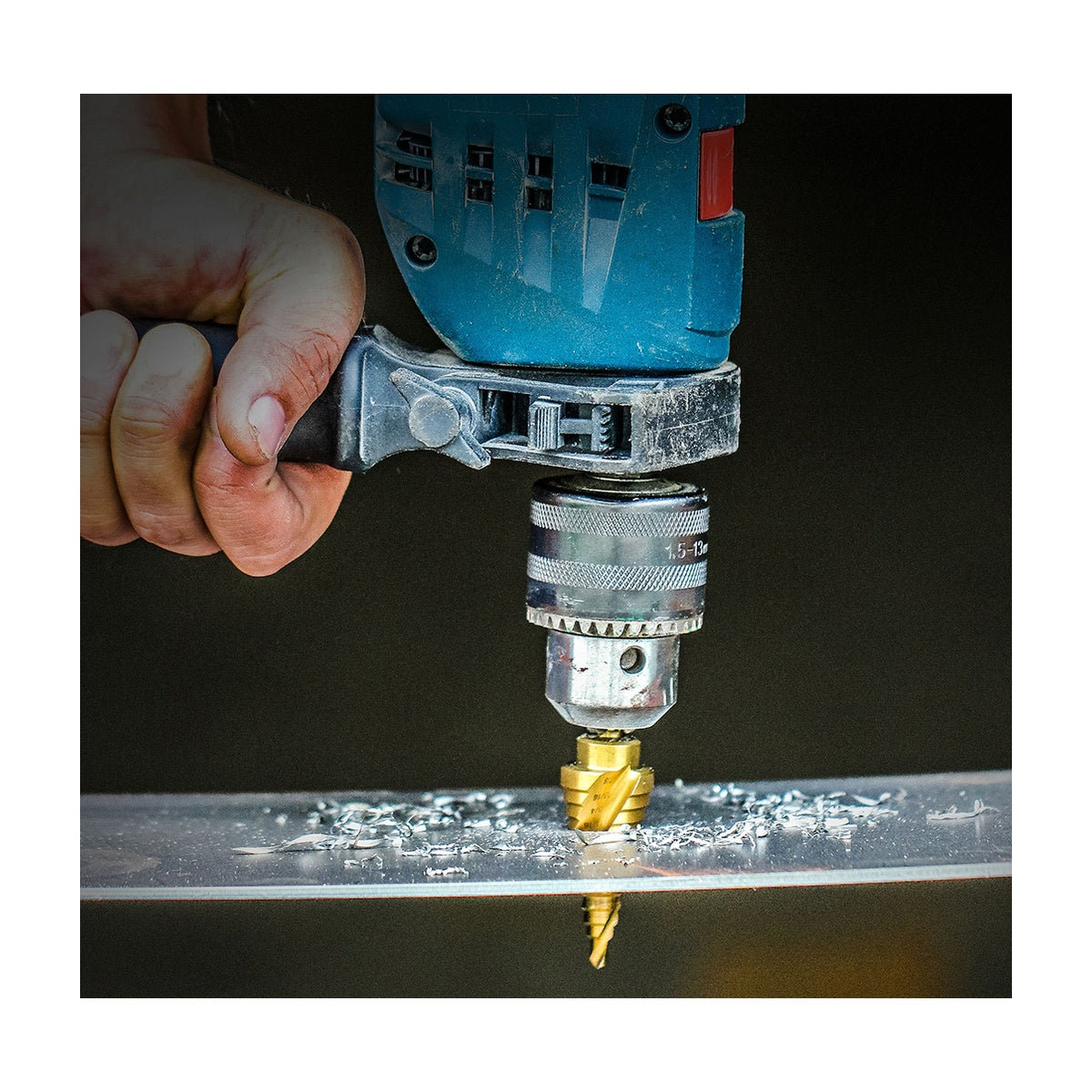

Spiral Step Bit, #1, 1/8" - 1/2" – Spiral Step Drill Bit
The IDEAL® Spiral Step Bit, part number 36-701, is engineered for efficient drilling with titanium nitride spiral cutting action, designed to save time and improve productivity. This step drill bit is ideal for electrical distributors, lighting solutions installers, wire and cable professionals, and switchgear suppliers requiring precise, repeatable hole sizes without frequent bit changes. Its spiral design facilitates faster chip removal and reduced vibration, enhancing drilling speed and minimizing binding in various materials including mild steel, aluminum, copper, brass, and plastic.
- Drill Diameter Range: 1/8” to 1/2”
- Number of Steps: 13
- Step Increments: 1/32”
- Step Thickness: 1/8”
- Material: M35 High Speed Steel with Cobalt
- Coating: Titanium Nitride
- Shank Type: 1/4” Hex Shank
- Weight: 0.0800 lbs
- Manufacturer Part Number: 36-701
- UPC: 783250798926
- Recommended RPM: ≤7/8” size – 650 RPM
Specifications
- Titanium Nitride coating lowers cooling time and extends bit life for repetitive drilling
- Spiral cutting action provides faster chip removal, less vibration, and up to 4X faster cutting speed
- Split-point tip eliminates need for pilot hole and minimizes walking for quick startup
- Balanced hardened edges enhance durability and cutting performance
- Compatible with cordless drills and optimized for impact drivers
- Laser engraved step increments for clear visibility
- Impact rated for heavy-duty use in electrical and industrial applications
